AFB1248 Series

Catalog

FAN AXIAL 120X38MM 48VDC WIRE

Part	Lifetime @ Temp.	Material - Blade	Current Rating (Amps)	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	Bearing Type	Weight	Weight	Voltage - Rated	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Fan Type	Static Pressure	Static Pressure	Air Flow	Air Flow	RPM	Width [y]	Approval Agency	Noise	Size / Dimension [z]	Size / Dimension [x]	Termination	Features	Weight [custom]	Weight [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection
Delta Electronics AFB1248HE	70000 Hrs	Plastic	120 mA	Plastic	28 V	56 VDC	Ball	0.565 lb	256.28 g	48 VDC	5.76 W	-10 °C	60 °C	Tubeaxial	0.3 in H2O	74.7 Pa	2.97 m³/min	105.9 CFM	2600 RPM	38 mm	CE CSA UL VDE	41 dB	120 mm	120 mm	2 Wire Leads
Delta Electronics AFB1248SHEB8T										48 VDC				Tubeaxial						38 mm	CE CSA UL VDE		120 mm	120 mm

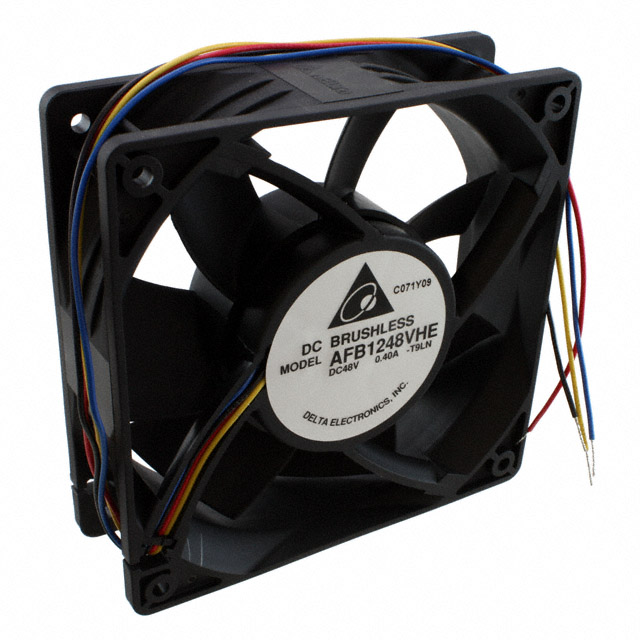

Delta Electronics AFB1248VHE-T9LN	70000 Hrs	Plastic	0.31 A	Plastic	34 VDC	56 VDC	Ball			48 VDC	14.88 W	-40 C	70 °C	Tubeaxial	0.694 in H2O	173 Pa	5.33 m³/min	190.5 CFM	4100 RPM	38 mm	CE CSA UL VDE	55.5 dB	120 mm	120 mm	4 Wire Leads	Locked Rotor Protection PWM Control Speed Sensor (Tach)	0.728 lb	330.22 g	70 °C	-40 °C	IP55 - Dust Protected Water Resistant

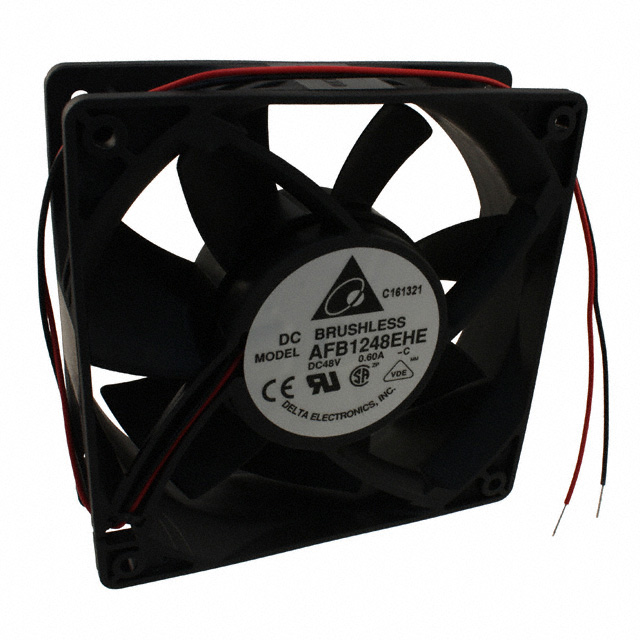

Delta Electronics AFB1248EHE-C	70000 Hrs	Plastic	480 mA	Plastic	24 VDC	56 VDC	Ball			48 VDC	23 Watts	-10 °C	70 °C	Tubeaxial	0.844 in H2O	210.2 Pa	5.95 m³/min	212.6 CFM	4600 RPM	38 mm	CE CSA UL VDE	58.5 dB	120 mm	120 mm	2 Wire Leads		0.728 lb	330.22 g

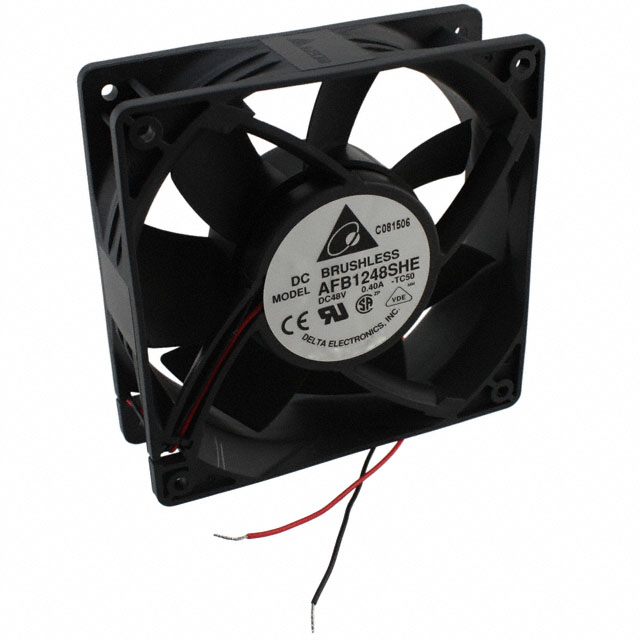

Delta Electronics AFB1248SHE-TC50	70000 Hrs	Plastic	0.31 A	Plastic	24 VDC	56 VDC	Ball			48 VDC	14.88 W	-10 °C	70 °C	Tubeaxial	0.694 in H2O	173 Pa	5.33 m³/min	190.5 CFM	4100 RPM	38 mm	CE CSA UL VDE	55.5 dB	120 mm	120 mm	2 Wire Leads		0.728 lb	330.22 g			IP55 - Dust Protected Water Resistant
Delta Electronics AFB1248VHE-TP18	70000 Hrs	Plastic	0.31 A	Plastic	34 VDC	56 VDC	Ball			48 VDC	14.88 W	-40 C	70 °C	Tubeaxial	0.694 in H2O	173 Pa	5.33 m³/min	190.5 CFM	4100 RPM	38 mm	CE CSA UL VDE	55.5 dB	120 mm	120 mm	4 Wire Leads	Locked Rotor Protection PWM Control Speed Sensor (Tach)	0.728 lb	330.22 g	70 °C	-40 °C

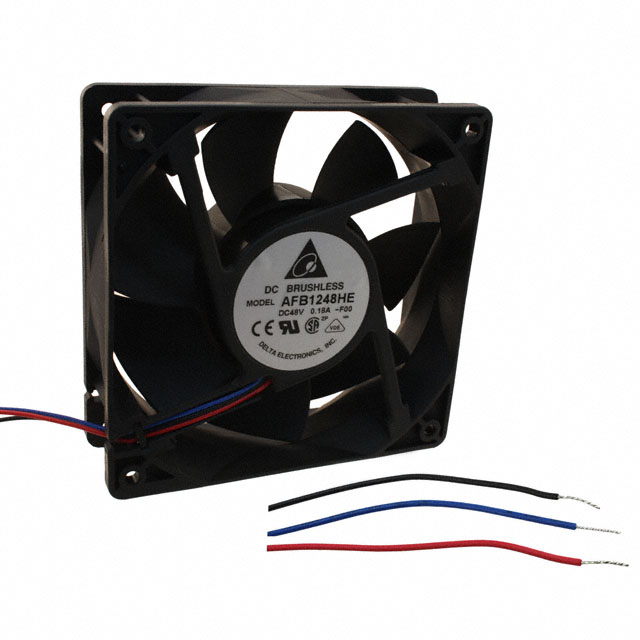

Delta Electronics AFB1248HE-F00	70000 Hrs	Plastic	120 mA	Plastic	28 V	56 VDC	Ball	0.565 lb	256.28 g	48 VDC	5.76 W	-10 °C	60 °C	Tubeaxial	0.3 in H2O	74.7 Pa	2.97 m³/min	105.9 CFM	2600 RPM	38 mm	CE CSA UL VDE	41 dB	120 mm	120 mm	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics AFB1248EHE-CF00	70000 Hrs	Plastic	480 mA	Plastic	24 VDC	56 VDC	Ball			48 VDC	23 Watts	-10 °C	70 °C	Tubeaxial	0.844 in H2O	210.2 Pa	5.95 m³/min	212.6 CFM	4600 RPM	38 mm	CE CSA UL VDE	58.5 dB	120 mm	120 mm	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)	0.728 lb	330.22 g

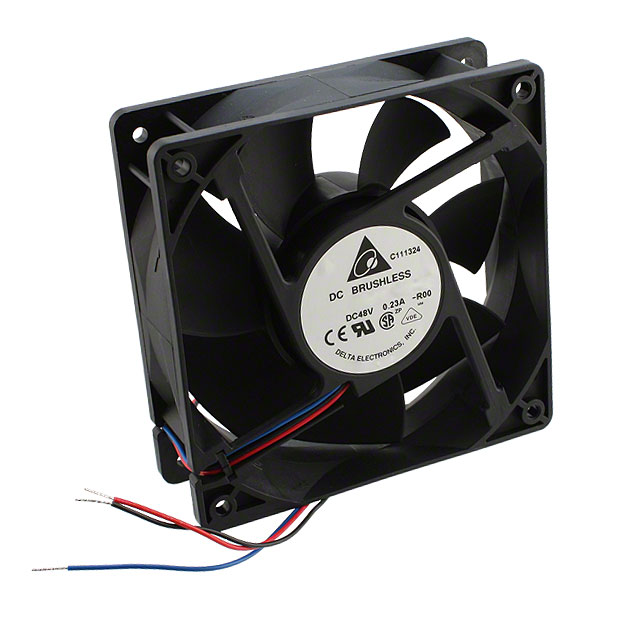

Delta Electronics AFB1248HHE-R00	70000 Hrs	Plastic	150 mA	Plastic	28 V	56 VDC	Ball	0.565 lb	256.28 g	48 VDC	7.2 W	-10 °C	60 °C	Tubeaxial	0.354 in H2O	88.2 Pa	3.36 m³/min	120.1 CFM	2900 RPM	38 mm	CE CSA UL VDE	44 dB(A)	120 mm	120 mm	3 Wire Leads	Locked Rotor Sensor
Delta Electronics AFB1248SHE-CF00	70000 Hrs	Plastic	0.31 A	Plastic	24 VDC	56 VDC	Ball			48 VDC	14.88 W	-10 °C	70 °C	Tubeaxial	0.694 in H2O	173 Pa	5.33 m³/min	190.5 CFM	4100 RPM	38 mm	CE CSA UL VDE	55.5 dB	120 mm	120 mm	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)	0.728 lb	330.22 g
