GRSH-2011 Series
Manufacturer: CW Industries
Beta
⌘K
SWITCH ROCKER SPST 16A 125V
| Part | Mechanical Life | Electrical Life | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Actuator Marking | Color - Actuator/Cap | Current Rating (Amps) | Circuit | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Mounting Type | Switch Function | Voltage Rating - AC | Actuator Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

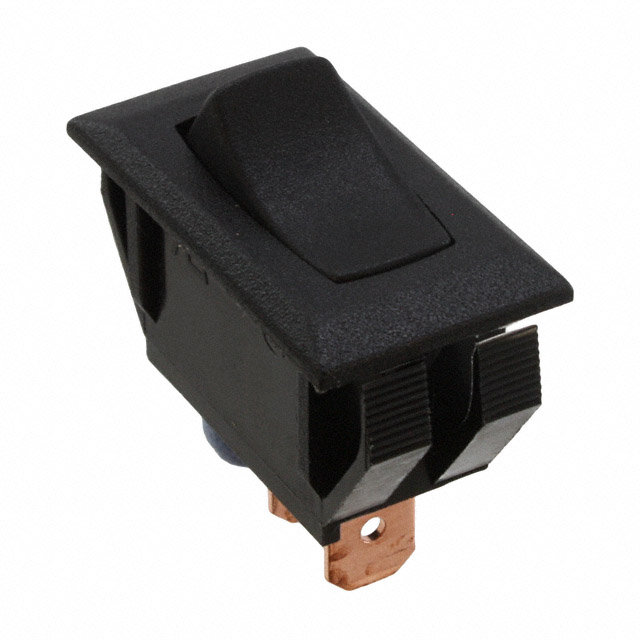

 CW Industries | 100000 Cycles | 25000 Steps | 13.97 mm | 28.58 mm | No Marking | Black | 16 A | SPST | -20 ░C | 105 ░C | Quick Connect - 0.250" (6.3mm) | Panel Mount Snap-In | On-Off | 125 V | Concave (Curved) | |
 CW Industries | 13.97 mm | 28.58 mm | Light Bulb | Beige | 8 A | SPST | Quick Connect - 0.250" (6.3mm) | Panel Mount Snap-In | On-Off | 125 V | Concave (Curved) | Polarized | ||||

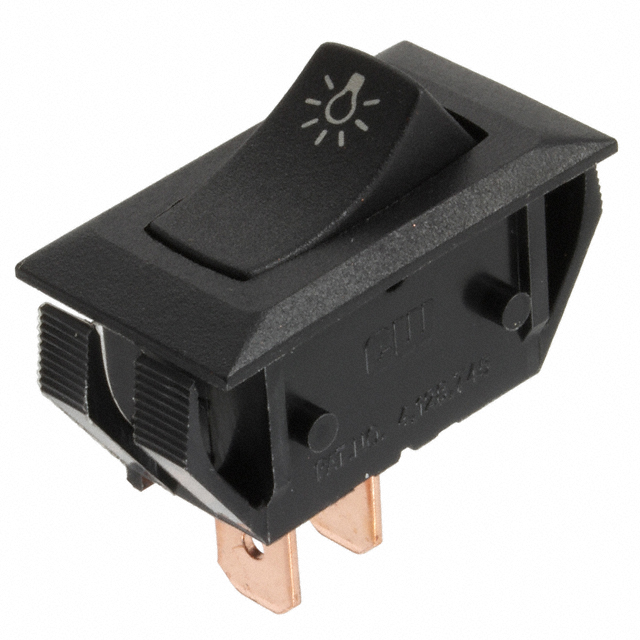

 CW Industries | 13.97 mm | 28.58 mm | Light Bulb | Black | 8 A | SPST | Quick Connect - 0.250" (6.3mm) | Panel Mount Snap-In | On-Off | 125 V | Concave (Curved) | Polarized | ||||

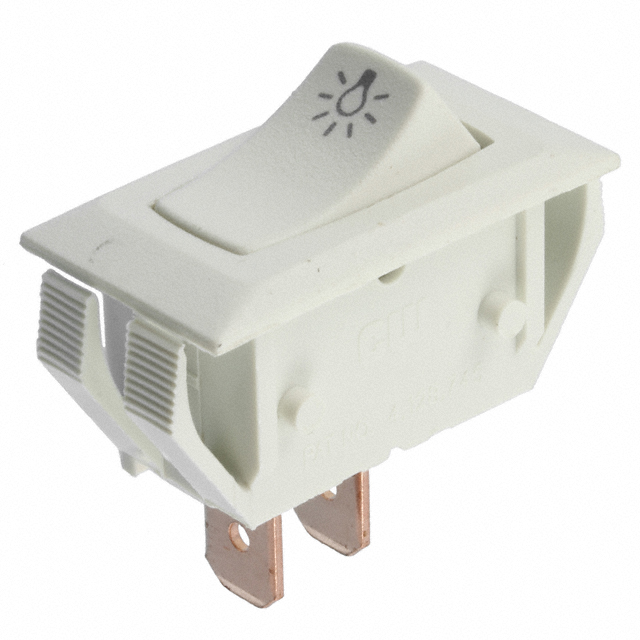

 CW Industries | 13.97 mm | 28.58 mm | Light Bulb | White | 8 A | SPST | Quick Connect - 0.250" (6.3mm) | Panel Mount Snap-In | On-Off | 125 V | Concave (Curved) | Polarized |
