1012405 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

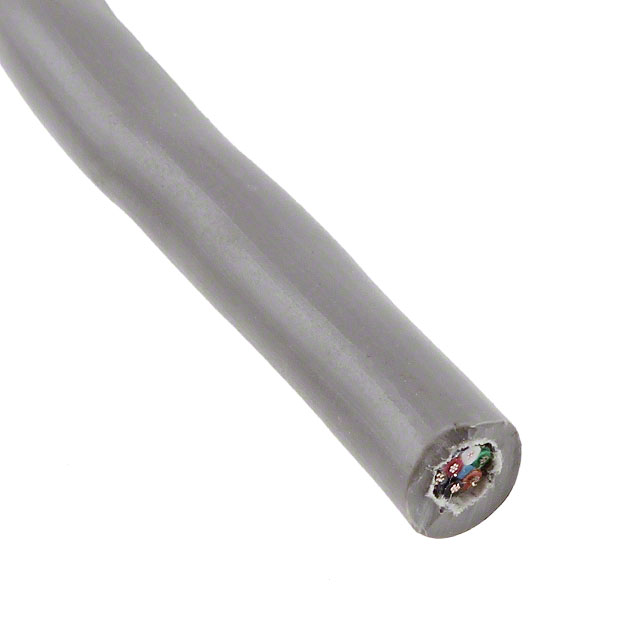

CABLE 5CON 24AWG SLATE SHLD 100'
| Part | Shield Coverage | Shield Material | Features | Conductor Material | Conductor Insulation | Jacket (Insulation) Material | Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Length [x] | Length [x] | Number of Conductors | Wire Gauge | Usage | Jacket Color | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | Drain Wire | Copper Tinned | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 300 VDC | 80 °C | -20 ░C | 0.035 in | 0.889 mm | Multi-Conductor | 0.19 in | 4.83 mm | Foil | 7 | 32 AWG | 100 ft | 30.5 m | 5 | 24 AWG | Computer | Slate | ||
ALPHA WIRE | 100 % | Aluminum | Drain Wire | Copper Tinned | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 300 VDC | 80 °C | -20 ░C | 0.035 in | 0.889 mm | Multi-Conductor | 0.194 in | 4.93 mm | Foil | 7 | 32 AWG | 5 | 24 AWG | Computer | Slate | 304.8 m | 1000 ft |
