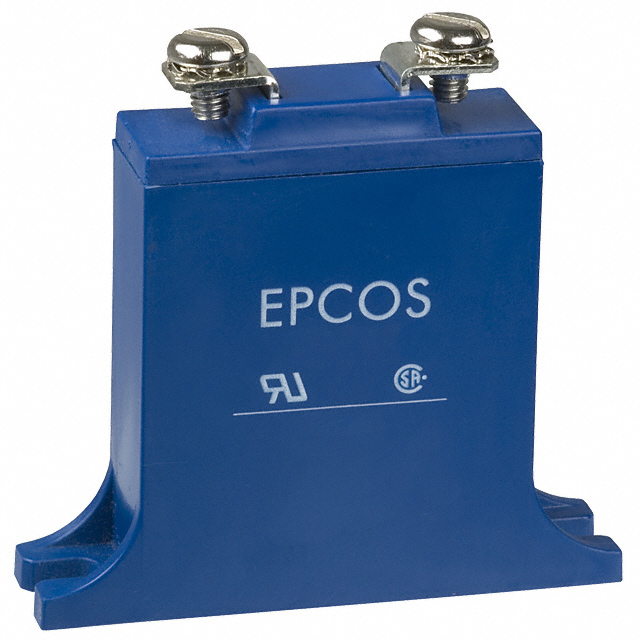

B72232B Series

Catalog

VARISTOR 1.1KV 25KA ENCASED DISC

Part	Maximum AC Volts [Max]	Varistor Voltage (Max) [Max]	Varistor Voltage (Typ)	Package / Case	Energy	Capacitance @ Frequency	Varistor Voltage (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Maximum DC Volts [Max]	Number of Circuits
EPCOS - TDK Electronics B72232B0681K001	680 V	1210 V	1.1 kV	Encased Disc	760 J	830 pF	990 V	85 C	-40 ¯C	Chassis Mount	895 V	1
EPCOS - TDK Electronics B72232B0381K001	385 V		620 V	Encased Disc	550 J	1400 pF	558 V	85 C	-40 ¯C	Chassis Mount	505 V	1

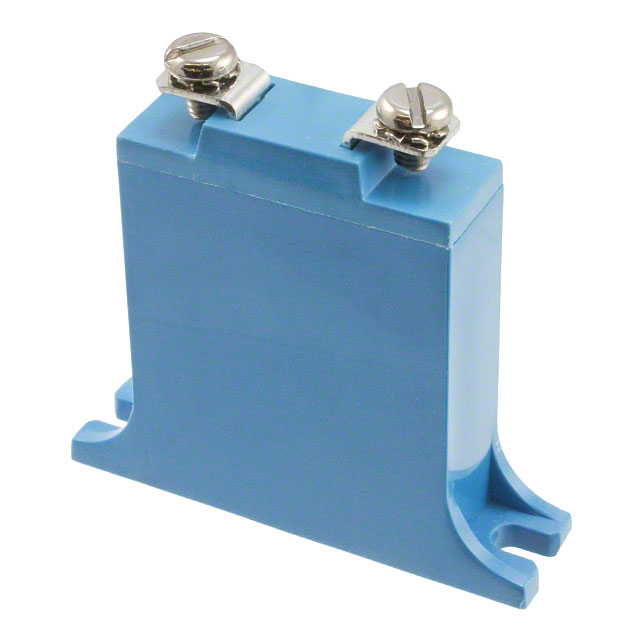

EPCOS - TDK Electronics B72232B0321K001	320 V	561 V	510 V	Encased Disc	430 J	1700 pF	459 V	85 C	-40 ¯C	Chassis Mount	420 V	1

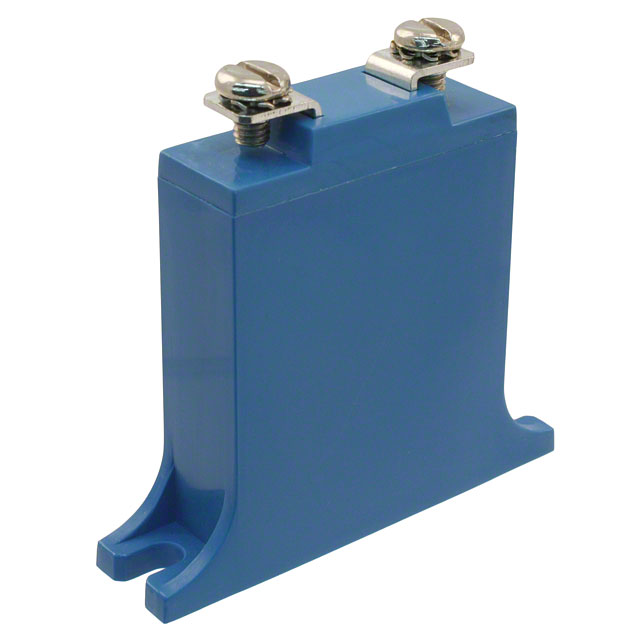

EPCOS - TDK Electronics B72232B0251K001	250 V	429 V	390 V	Encased Disc	330 J	2200 pF	351 V	85 C	-40 ¯C	Chassis Mount	320 V	1
EPCOS - TDK Electronics B72232B0131K001	130 V	225.5 V	205 V	Encased Disc	210 J	11000 pF	184.5 V	85 C	-40 ¯C	Chassis Mount	170 V	1
EPCOS - TDK Electronics B72232B0151K001	150 V	264 V	240 V	Encased Disc	240 J	1 kHz 3700 pF	216 V	85 C	-40 ¯C	Chassis Mount	200 V	1
