68492 Series

Catalog

BERGSTIK II .100CC DR ST RAIGHT

Part	Fastening Type	Pitch - Mating	Pitch - Mating	Termination	Number of Positions Loaded	Contact Material	Contact Length - Mating [x]	Contact Length - Mating	Shrouding	Contact Shape	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Voltage Rating	Insulation Height	Insulation Height	Mounting Type	Insulation Color	Contact Length - Post [x]	Contact Length - Post [x]	Connector Type	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Number of Rows	Material Flammability Rating	Contact Finish - Mating

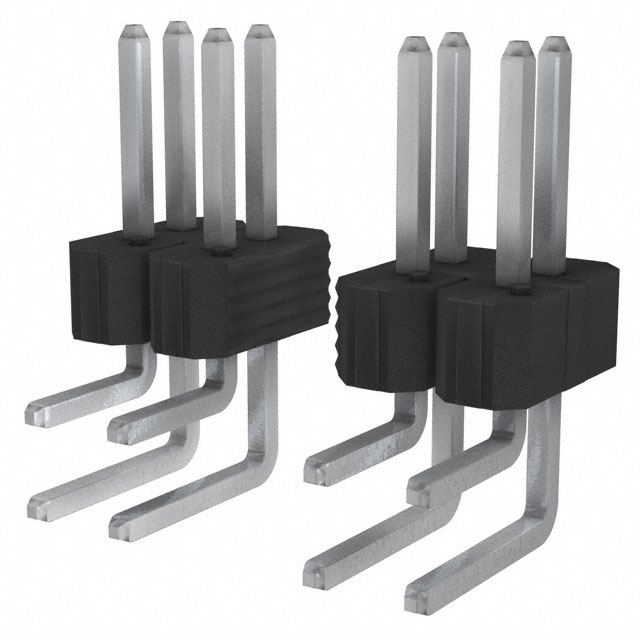

Amphenol ICC (FCI) 68492-440HLF	Push-Pull	0.1 in	2.54 mm	Solder	All	Phosphor Bronze	0.23 in	5.84 mm	Unshrouded	Square	Tin	2.54 çm	100 çin	Male Pin	110 VDC	4.83 mm	0.19 in	Through Hole Right Angle	Black	0.15 in	3.81 mm	Header	5 A	2.54 mm	0.1 in	40	2	UL94 V-0
Amphenol ICC (FCI) 68492-446HLF	Push-Pull	0.1 in	2.54 mm	Solder	All	Phosphor Bronze	0.23 in	5.84 mm	Unshrouded	Square	Tin	2.54 çm	100 çin	Male Pin	110 VDC	4.83 mm	0.19 in	Through Hole Right Angle	Black	0.15 in	3.81 mm	Header	5 A	2.54 mm	0.1 in	46	2	UL94 V-0
Amphenol ICC (FCI) 68492-454HLF	Push-Pull	0.1 in	2.54 mm	Solder	All	Phosphor Bronze	0.23 in	5.84 mm	Unshrouded	Square	Tin	2.54 çm	100 çin	Male Pin	110 VDC	4.83 mm	0.19 in	Through Hole Right Angle	Black	0.15 in	3.81 mm	Header	5 A	2.54 mm	0.1 in	54	2	UL94 V-0
Amphenol ICC (FCI) 68492-472HLF	Push-Pull	0.1 in	2.54 mm	Solder	All	Phosphor Bronze	0.23 in	5.84 mm	Unshrouded	Square	Tin	2.54 çm	100 çin	Male Pin	110 VDC	4.83 mm	0.19 in	Through Hole Right Angle	Black	0.15 in	3.81 mm	Header	5 A	2.54 mm	0.1 in	72	2	UL94 V-0
Amphenol ICC (FCI) 68492-470HLF	Push-Pull	0.1 in	2.54 mm	Solder	All	Phosphor Bronze	0.23 in	5.84 mm	Unshrouded	Square	Tin	2.54 çm	100 çin	Male Pin	110 VDC	4.83 mm	0.19 in	Through Hole Right Angle	Black	0.15 in	3.81 mm	Header	5 A	2.54 mm	0.1 in	70	2	UL94 V-0
Amphenol ICC (FCI) 68492-572	Push-Pull	0.1 in	2.54 mm	Solder	All	Phosphor Bronze	0.23 in	5.84 mm	Unshrouded	Square		0.38 µm	15 µin	Male Pin		4.83 mm	0.19 in	Through Hole Right Angle	Black	0.15 in	3.81 mm	Header		2.54 mm	0.1 in	72	2	UL94 V-0	Gold or Gold GXT™
Amphenol ICC (FCI) 68492-128HLF	Push-Pull	0.1 in	2.54 mm	Solder	All	Phosphor Bronze	0.23 in	5.84 mm	Unshrouded	Square		0.76 Ám	30 Áin	Male Pin	110 VDC	4.83 mm	0.19 in	Through Hole Right Angle	Black	0.15 in	3.81 mm	Header	5 A	2.54 mm	0.1 in	28	2	UL94 V-0	Gold or Gold GXT™
Amphenol ICC (FCI) 68492-152HLF	Push-Pull	0.1 in	2.54 mm	Solder	All	Phosphor Bronze	0.23 in	5.84 mm	Unshrouded	Square		0.76 Ám	30 Áin	Male Pin	110 VDC	4.83 mm	0.19 in	Through Hole Right Angle	Black	0.15 in	3.81 mm	Header	5 A	2.54 mm	0.1 in	52	2	UL94 V-0	Gold or Gold GXT™

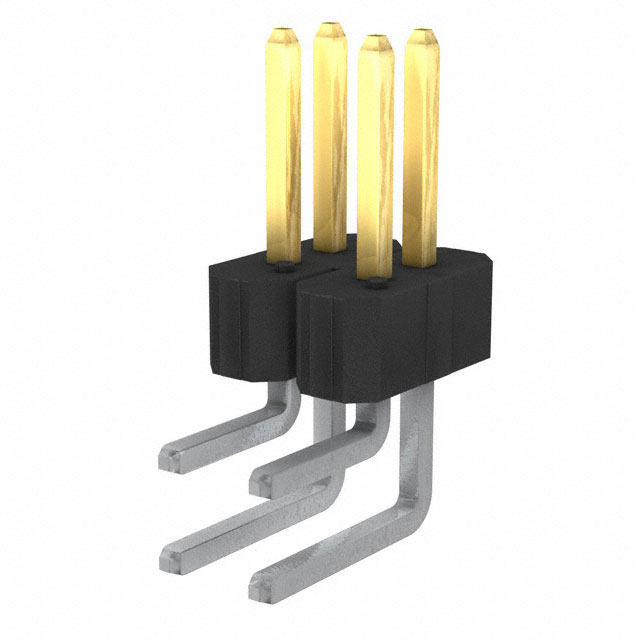

Amphenol ICC (FCI) 68492-104HLF	Push-Pull	0.1 in	2.54 mm	Solder	All	Phosphor Bronze	0.23 in	5.84 mm	Unshrouded	Square		0.76 Ám	30 Áin	Male Pin	110 VDC	4.83 mm	0.19 in	Through Hole Right Angle	Black	0.15 in	3.81 mm	Header	5 A	2.54 mm	0.1 in	4	2	UL94 V-0	Gold or Gold GXT™
Amphenol ICC (FCI) 68492-464HLF	Push-Pull	0.1 in	2.54 mm	Solder	All	Phosphor Bronze	0.23 in	5.84 mm	Unshrouded	Square	Tin	2.54 çm	100 çin	Male Pin	110 VDC	4.83 mm	0.19 in	Through Hole Right Angle	Black	0.15 in	3.81 mm	Header	5 A	2.54 mm	0.1 in	64	2	UL94 V-0
