M22-654 Series

Catalog

CONN, R/A RCPT, 4POS, 1ROW, 2MM ROHS COMPLIANT: YES

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Contact Shape	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination	Number of Positions Loaded	Fastening Type	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Connector Type	Number of Positions	Contact Type	Number of Rows	Contact Finish - Mating	Insulation Color	Insulation Height [z]	Insulation Height [z]
Harwin Inc. M22-6540442R	2.03 µm	80 µin	Phosphor Bronze	Square	General Purpose	0.015 µm	0.59 µin	Tin	UL94 V-0	-40 C	105 ░C	Right Angle Surface Mount	Solder	All	Push-Pull	2 A	0.079 "	2 mm	Receptacle	4	Forked	1	Gold	Black	2 mm	0.079 in

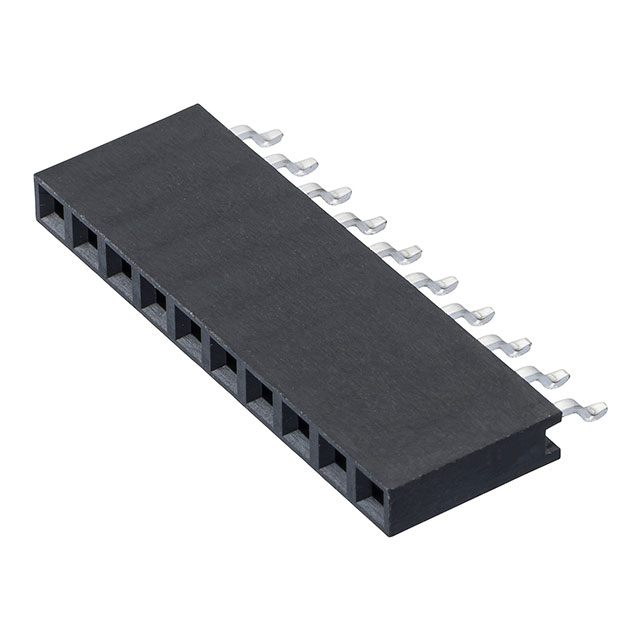

Harwin Inc. M22-6541042R	2.03 µm	80 µin	Phosphor Bronze	Square	General Purpose	0.015 µm	0.59 µin	Tin	UL94 V-0	-40 C	105 ░C	Right Angle Surface Mount	Solder	All	Push-Pull	2 A	0.079 "	2 mm	Receptacle	10	Forked	1	Gold	Black	2 mm	0.079 in

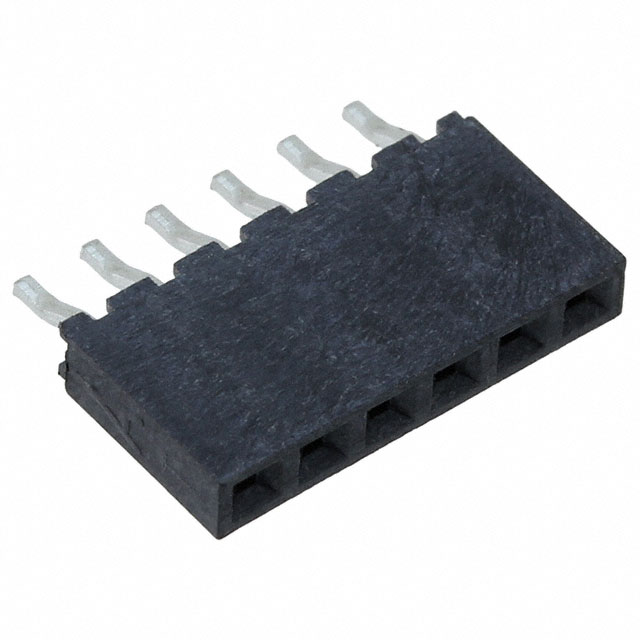

Harwin Inc. M22-6540642R	2.03 µm	80 µin	Phosphor Bronze	Square	General Purpose	0.015 µm	0.59 µin	Tin	UL94 V-0	-40 C	105 ░C	Right Angle Surface Mount	Solder	All	Push-Pull	2 A	0.079 "	2 mm	Receptacle	6	Forked	1	Gold	Black	2 mm	0.079 in
Harwin Inc. M22-6540842R	2.03 µm	80 µin	Phosphor Bronze	Square	General Purpose	0.015 µm	0.59 µin	Tin	UL94 V-0	-40 C	105 ░C	Right Angle Surface Mount	Solder	All	Push-Pull	2 A	0.079 "	2 mm	Receptacle	8	Forked	1	Gold	Black	2 mm	0.079 in
