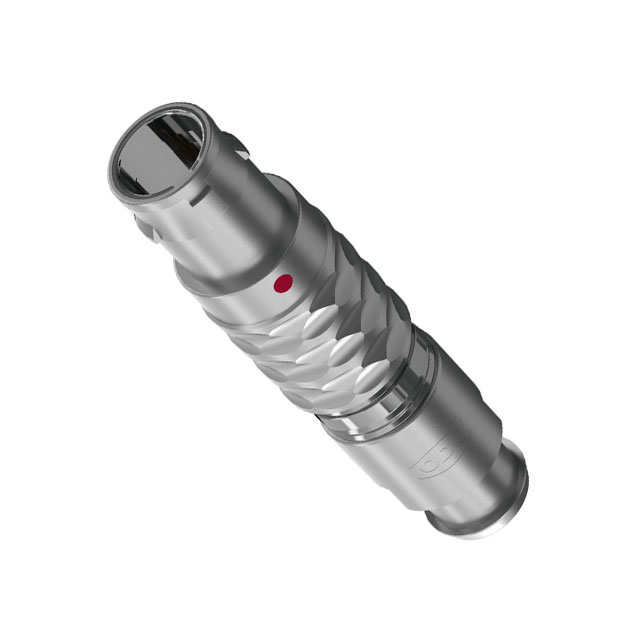

S21L0C-P Series
Manufacturer: ODU
Beta
⌘K
CONN PLUG MALE 8P GOLD SLDR CUP
| Part | Shielding | Insert Material | Current Rating (Amps) | Fastening Type | Cable Opening [Max] | Cable Opening [Min] | Connector Type | Backshell Material, Plating | Applications | Ingress Protection | Features | Number of Positions | Contact Finish - Mating | Orientation | Contact Material | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Shell Finish | Shell Material | Shell Size - Insert | Primary Material | Color | Cable Opening | Cable Opening [Min] | Cable Opening [Max] | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Shielded | Polyetheretherketone (PEEK) | 7.5 A | Push-Pull | 0.126 in 3.2 mm | 0.079 in 2 mm | Plug Male Pins | Brass Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | IP50 - Dust Protected | Backshell Strain Relief | 8 | Gold | 0 | Brass | Free Hanging (In-Line) | 120 °C | -40 C | Chrome over Nickel | Brass | 1 | Metal | Silver | |||||
Shielded | Polyetheretherketone (PEEK) | 4 A | Push-Pull | 0.303 in | 0.276 " | Plug Male Pins | Brass Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | IP50 - Dust Protected | Backshell Strain Relief | 10 | Gold | 0 | Brass | Free Hanging (In-Line) | 120 °C | -40 C | Chrome over Nickel | Brass | 1 | Metal | Silver | 7 mm 7.7 mm | ||||
Shielded | Polyetheretherketone (PEEK) | 7.5 A | Push-Pull | 0.283 " | 0.236 in | Plug Male Pins | Brass Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | IP50 - Dust Protected | Backshell Strain Relief | 8 | Gold | 0 | Brass | Free Hanging (In-Line) | 120 °C | -40 C | Chrome over Nickel | Brass | 1 | Metal | Silver | 6 mm | 7.2 mm | |||
Shielded | Polyetheretherketone (PEEK) | 4 A | Push-Pull | 0.126 in 3.2 mm | 0.079 in 2 mm | Plug Male Pins | Brass Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | IP50 - Dust Protected | Backshell Strain Relief | 14 | Gold | 0 | Brass | Free Hanging (In-Line) | 120 °C | -40 C | Chrome over Nickel | Brass | 1 | Metal | Silver | |||||
Unshielded | Polyetheretherketone (PEEK) | 6 A | Push-Pull | 0.205 in | 0.157 in | Plug Male Pins | Brass Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | IP50 - Dust Protected | Backshell Strain Relief | 7 | Gold | 0 | Brass | Free Hanging (In-Line) | 120 °C | -40 C | Chrome over Nickel | Brass | 1 | Metal | Silver | 4 mm 5.2 mm | 400 V | |||
Unshielded | Polyetheretherketone (PEEK) | 6 A | Push-Pull | 0.244 " | 0.197 in | Plug Male Pins | Brass Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | IP50 - Dust Protected | Backshell Strain Relief | 8 | Gold | 0 | Brass | Free Hanging (In-Line) | 120 °C | -40 C | Chrome over Nickel | Brass | 1 | Metal | Silver | 5 mm | 6.2 mm | 333 V | ||
Shielded | Polyetheretherketone (PEEK) | 7.5 A | Push-Pull | Plug Male Pins | Brass Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | IP50 - Dust Protected | Backshell Strain Relief | 8 | Gold | 0 | Brass | Free Hanging (In-Line) | 120 °C | -40 C | Chrome over Nickel | Brass | 1 | Metal | Silver | |||||||
Polyetheretherketone (PEEK) | 7.5 A | Push-Pull | 0.244 " | 0.197 in | Plug Male Pins | Brass Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | IP50 - Dust Protected | Backshell Strain Relief | 7 | Gold | 0 | Brass | Free Hanging (In-Line) | 120 °C | -40 C | Chrome over Nickel | Brass | 1 | Metal | Silver | 5 mm | 6.2 mm | ||||
Polyetheretherketone (PEEK) | 12 Amps | Push-Pull | 0.244 " | 0.197 in | Plug Male Pins | Brass Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | IP50 - Dust Protected | Backshell Strain Relief | Gold | 0 | Brass | Free Hanging (In-Line) | 120 °C | -40 C | Chrome over Nickel | Brass | 1 | Metal | Silver | 5 mm | 6.2 mm | |||||
Shielded | Polyetheretherketone (PEEK) | 12 Amps | Push-Pull | Plug Male Pins | Brass Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | IP50 - Dust Protected | Backshell Strain Relief | Gold | 0 | Brass | Free Hanging (In-Line) | 120 °C | -40 C | Chrome over Nickel | Brass | 1 | Metal | Silver |
