A3M1CSQ Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY AUTOMOTIVE SPDT 80A 12V
| Part | Coil Power | Coil Resistance | Contact Material | Release Time | Features | Coil Current | Switching Voltage [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Contact Form | Termination Style | Must Release Voltage | Mounting Type | Coil Type | Must Operate Voltage | Contact Rating (Current) | Operate Time | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

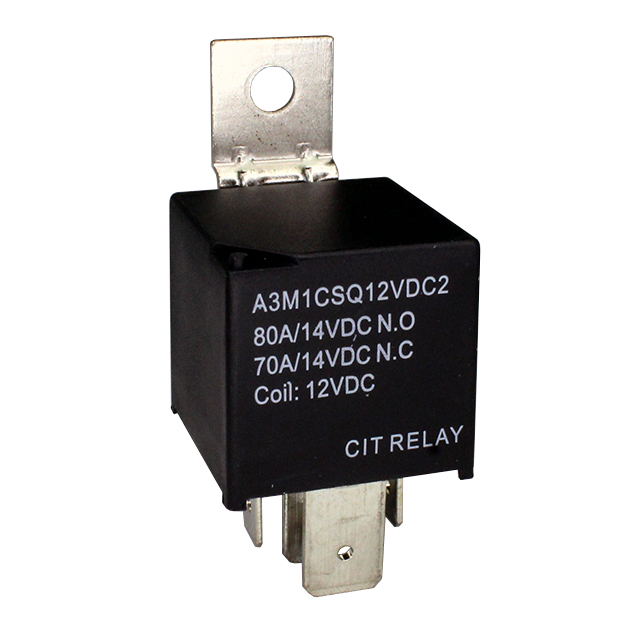

 CIT Relay and Switch | 1.8 W | 80 Ohms | Silver Tin Oxide Indium Oxide (AgSnOInO) | 5 ms | Sealed - Fully | 0.15 A | 75 VDC | 125 °C | -40 C | SPDT (1 Form C) | Quick Connect - Multiple Sizes | 1.2 VDC | Chassis Mount | Non Latching | 8.4 VDC | 80 A | 7 ms | 12 VDC |

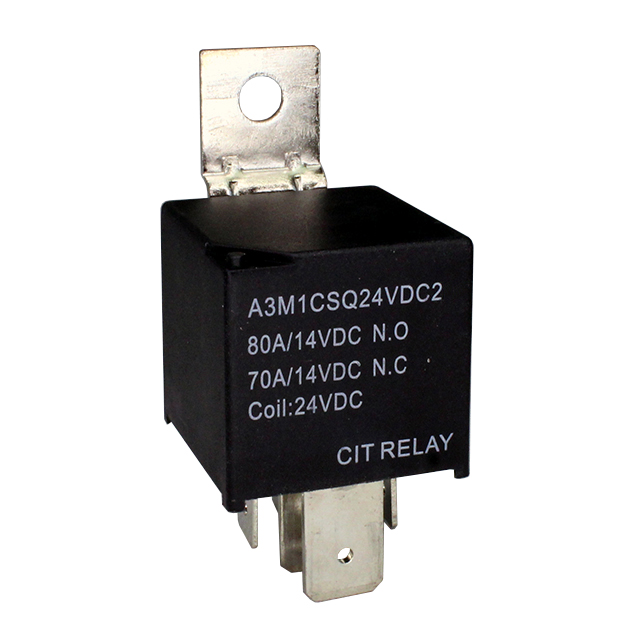

 CIT Relay and Switch | 1.8 W | 320 Ohms | Silver Tin Oxide Indium Oxide (AgSnOInO) | 5 ms | Sealed - Fully | 0.075 A | 75 VDC | 125 °C | -40 C | SPDT (1 Form C) | Quick Connect - Multiple Sizes | 2.4 VDC | Chassis Mount | Non Latching | 16.8 VDC | 80 A | 7 ms | 24 VDC |
 CIT Relay and Switch | 1.8 W | 320 Ohms | Silver Tin Oxide Indium Oxide (AgSnOInO) | 5 ms | Diode Sealed - Fully | 0.075 A | 75 VDC | 125 °C | -40 C | SPDT (1 Form C) | Quick Connect - Multiple Sizes | 2.4 VDC | Chassis Mount | Non Latching | 16.8 VDC | 80 A | 7 ms | 24 VDC |
