LDD-600 Series

Catalog

LED DRIVER CC BUCK 2-52V 600MA

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Topology	Voltage - Input (Max) [Max]	Mounting Type	Voltage - Output [Max]	Voltage - Output [Min]	Features	Number of Outputs	Current - Output (Max) [Max]	Type	Package / Case	Dimming	Efficiency	Termination Style	Ratings	Size / Dimension [y]	Size / Dimension [z]

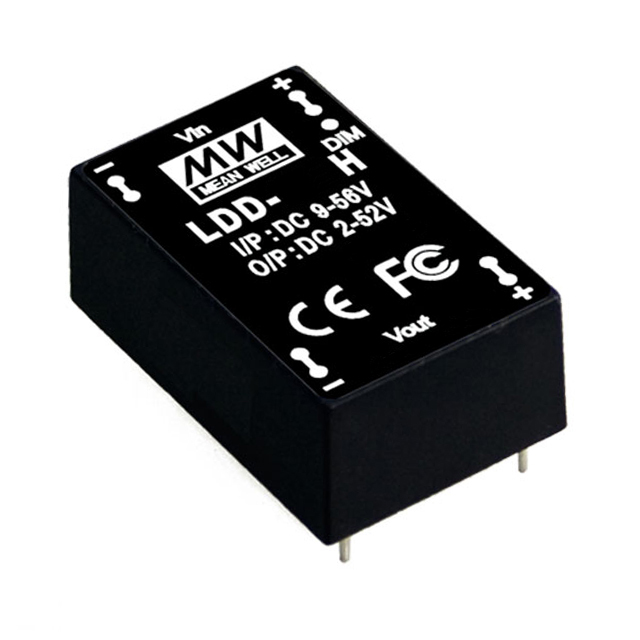

MEAN WELL USA Inc. LDD-600H	0.8 "	1.25 in	12.2 mm	0.48 "	31.8 mm	20.3 mm	9 V	CE	85 °C	-40 C	Buck	56 V	Through Hole	52 V	2 V	OTP Remote On/Off SCP	1	600 mA	Constant Current	24-DIP Module 9 Leads	PWM	97 %
MEAN WELL USA Inc. LDD-600HW	0.8 "	1.25 in	12.2 mm	0.48 "	31.8 mm	20.3 mm	9 V	CE	85 °C	-40 C	Buck	56 V	Chassis Mount	52 V	2 V	OTP Remote On/Off SCP	1	600 mA	Constant Current		PWM	97 %	Wire Leads	IP67

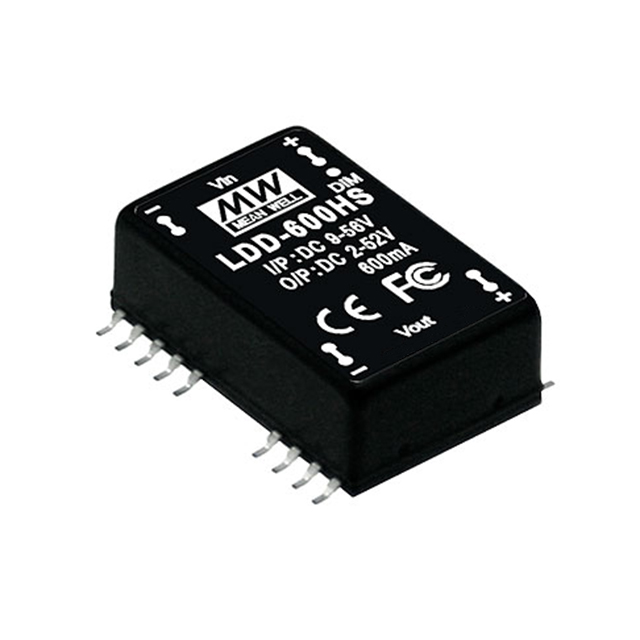

MEAN WELL USA Inc. LDD-600HS	0.8 "	1.25 in		0.45 in	31.8 mm		9 V	CE	85 °C	-40 C	Buck	56 V	Surface Mount	52 V	2 V	OTP Remote On/Off SCP	1	600 mA	Constant Current	24-SMD Module 18 Leads	PWM	96 %			20.3 mm	11.4 mm

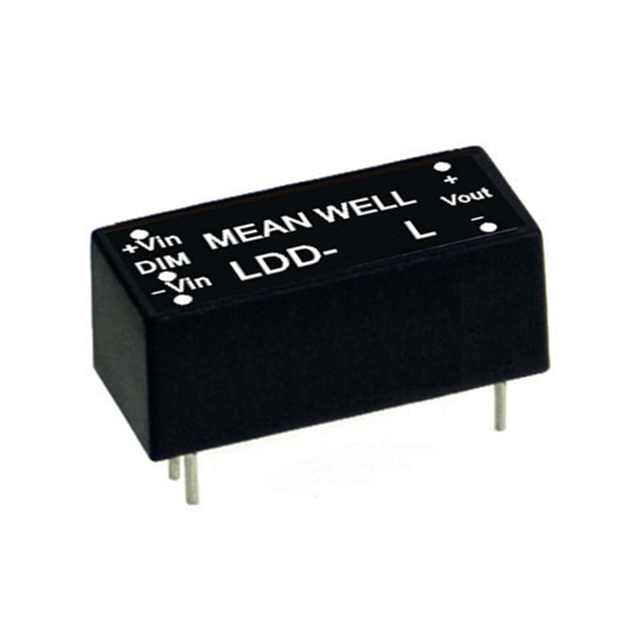

MEAN WELL USA Inc. LDD-600L	0.39 in	0.89 in	8.9 mm	0.35 in	22.6 mm	9.9 mm	9 V	CE	85 °C	-40 C	Buck	36 V	Through Hole	32 VDC	2 V	OTP Remote On/Off SCP	1	600 mA	Constant Current	6-DIP Module 5 Leads	PWM	95 %

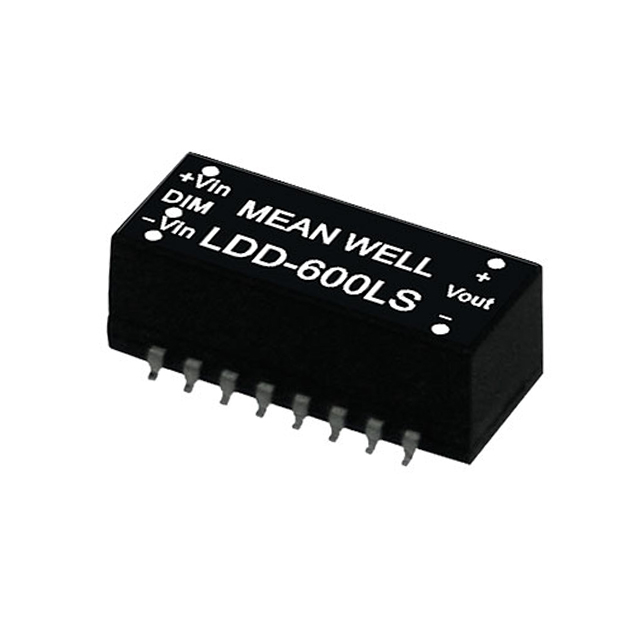

MEAN WELL USA Inc. LDD-600LS	0.41 "	1 in	9.3 mm	0.37 in	25.4 mm	10.5 mm	9 V	CE	85 °C	-40 C	Buck	32 V	Surface Mount	28 V	2 V	OTP Remote On/Off SCP	1	600 mA	Constant Current	16-SMD Module	PWM	95 %
