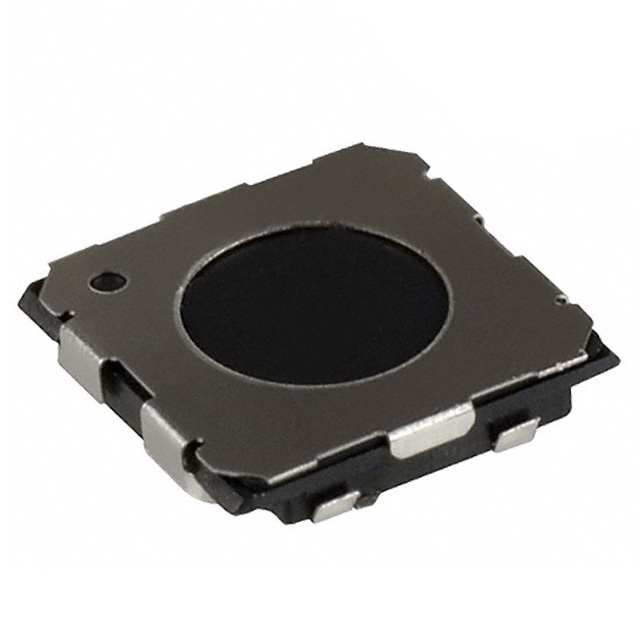

EVQ-PR Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

SWITCH TACT SPST-NO 0.02A 15V

Part	Outline [y]	Outline [x]	Actuator Orientation	Contact Rating @ Voltage [x]	Illumination	Actuator Type	Mounting Type	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Height off PCB, Vertical [z]	Operating Force [Max]	Operating Force [Min]	Switch Travel [x]	Mechanical Life	Switch Function	Termination Style	Features
Panasonic Industrial Automation Sales EVQ-PRDA09	6 mm	6 mm	Top Actuated	0.02 A 15 VDC	Non-Illuminated	Without	Surface Mount	SPST-NO x 2	-20 C	70 °C	0.9 mm	260 gf	100 gf	0.4 mm 0.6 mm	30000 Steps	Off-Mom-Mom	J Lead
Panasonic Industrial Automation Sales EVQ-PRHA09	6 mm	6 mm	Top Actuated	0.02 A 15 VDC	Non-Illuminated	Without	Surface Mount	SPST-NO x 2	-20 C	70 °C	0.9 mm	260 gf	100 gf	0.4 mm 0.6 mm	30000 Steps	Off-Mom-Mom	J Lead

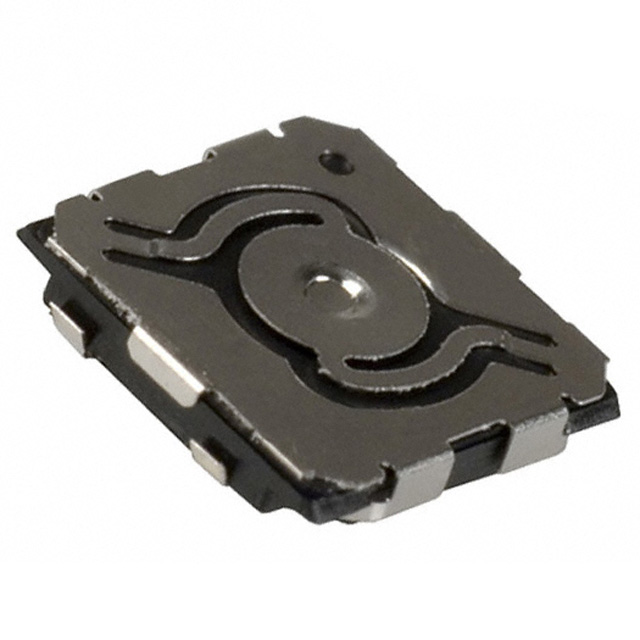

Panasonic Industrial Automation Sales EVQ-PR5A10	6 mm	6 mm	Top Actuated	0.02 A 15 VDC	Non-Illuminated	Standard	Surface Mount	SPST-NO x 2	-20 C	70 °C	0.95 mm	260 gf	70 gf	0.4 mm 0.6 mm	30000 Steps	Off-Mom-Mom	J Lead	Push Plate
Panasonic Industrial Automation Sales EVQ-PR7A10	6 mm	6 mm	Top Actuated	0.02 A 15 VDC	Non-Illuminated	Standard	Surface Mount	SPST-NO x 2	-20 C	70 °C	0.95 mm	260 gf	70 gf	0.4 mm 0.6 mm	30000 Steps	Off-Mom-Mom	J Lead	Push Plate
Panasonic Industrial Automation Sales EVQ-PR9A10	6 mm	6 mm	Top Actuated	0.02 A 15 VDC	Non-Illuminated	Standard	Surface Mount	SPST-NO x 2	-20 C	70 °C	0.95 mm	260 gf	70 gf	0.4 mm 0.6 mm	30000 Steps	Off-Mom-Mom	J Lead	Push Plate
Panasonic Industrial Automation Sales EVQ-PRBA09	6 mm	6 mm	Top Actuated	0.02 A 15 VDC	Non-Illuminated	Without	Surface Mount	SPST-NO x 2	-20 C	70 °C	0.9 mm	260 gf	100 gf	0.4 mm 0.6 mm	30000 Steps	Off-Mom-Mom	J Lead
