4C.02.8 Series
Manufacturer: Finder Relays, Inc.
Beta
⌘K

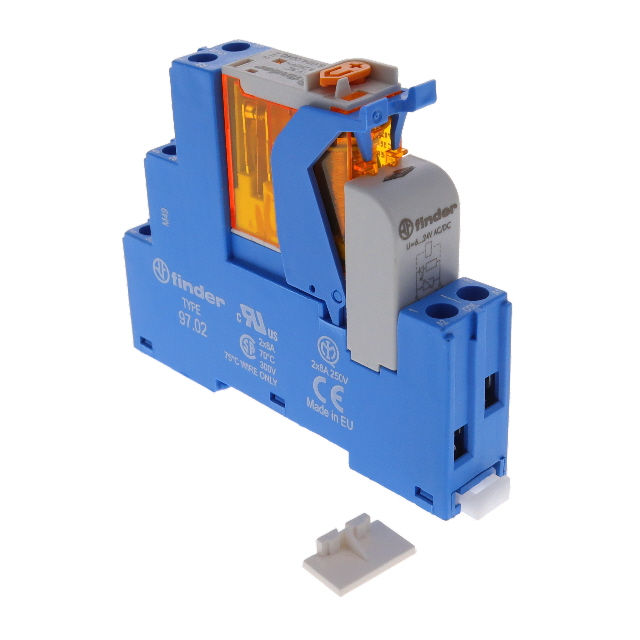

RELAY GEN PURPOSE DPDT 8A 24V
| Part | Coil Resistance | Must Operate Voltage | Contact Material | Relay Type | Operating Temperature [Max] | Operating Temperature [Min] | Switching Voltage [Max] | Mounting Type | Load - Max Switching | Must Release Voltage | Features | Coil Current | Coil Voltage | Operate Time | Termination Style | Release Time | Contact Form | Contact Rating (Current) | Coil Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Finder Relays, Inc. | 320 Ohms | 19.2 VAC | Silver Nickel (AgNi) | General Purpose | 70 °C | -40 C | 440 VAC | DIN Rail | 3520 VA | 4.8 VAC | Lighted Indicator Varistor | 45 mA | 24 VAC | 10 ms | Screw Terminal | 3 ms | DPDT (2 Form C) | 8 A | Non Latching |
 Finder Relays, Inc. | 28 kOhms | 184 VAC | Silver Nickel (AgNi) | General Purpose | 70 °C | -40 C | 440 VAC | DIN Rail | 3520 VA | 46 VAC | Lighted Indicator Varistor | 5 mA | 230 VAC | 10 ms | Screw Terminal | 3 ms | DPDT (2 Form C) | 8 A | Non Latching |
