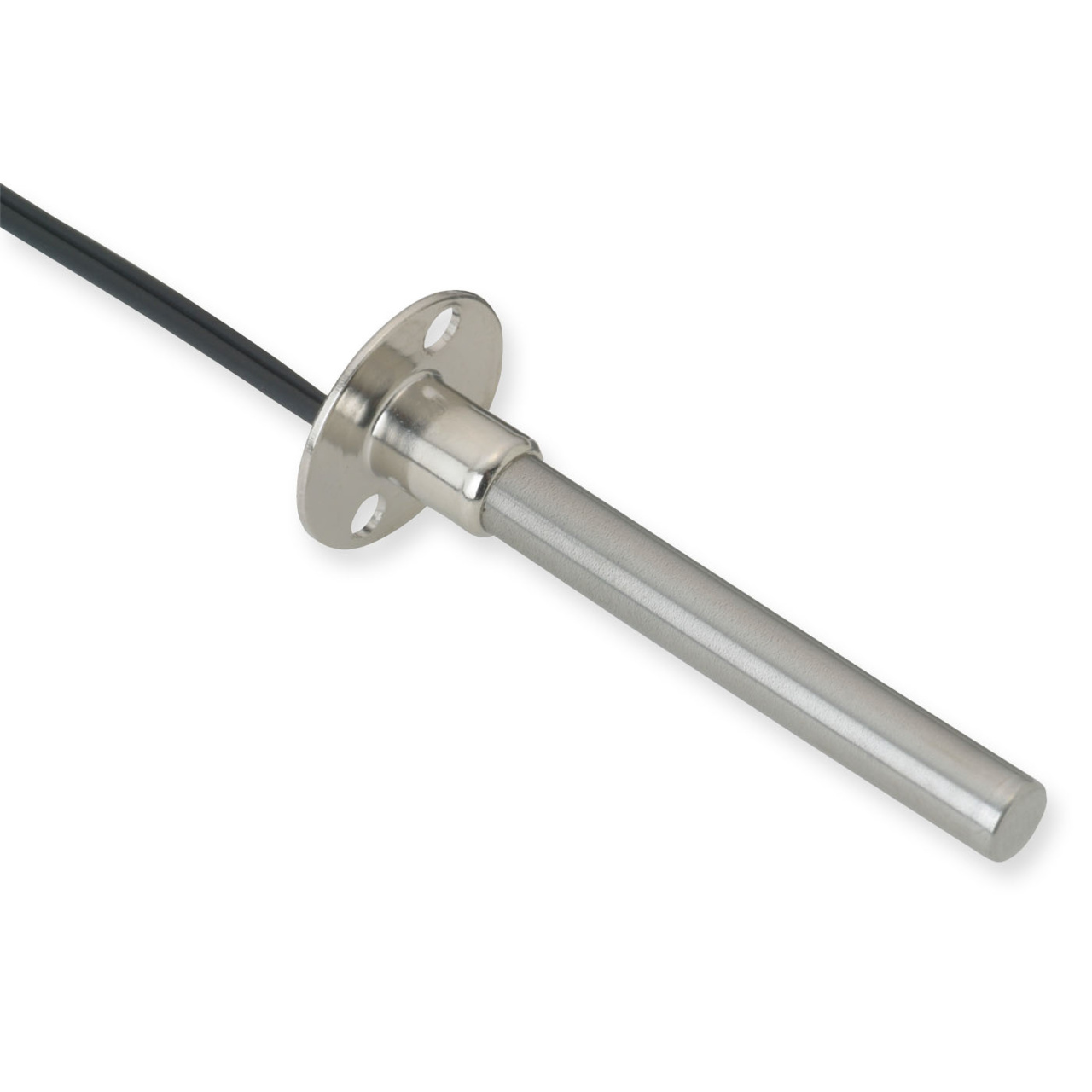

USP10979 Series
Manufacturer: Littelfuse/Commercial Vehicle Products
Catalog
Key Features
• Tight Tolerance
• Mounting Flange with #6 Stud Mounting Holes
• Moisture Resistant
• 105°C Max Operating Temperature
Beta
⌘K
NTC THERMISTOR, 10 KOHM, 3892 K, PANEL, WIRE LEADED, -55 °C TO 105 °C
| Part | Resistance in Ohms @ 25°C | Package / Case | Length - Lead Wire [x] | Length - Lead Wire | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Resistance Tolerance | B0/50 |
|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | 10k | Cylindrical Probe Stainless Steel | 12 in | 304.8 mm | 105 ░C | -55 °C | Flange | 1 % | 3892 K |
