TPS565201 Series

4.5V to 17V, 5A, Synchronous Step-Down Voltage Regulator in SOT23

Catalog

4.5V to 17V, 5A, Synchronous Step-Down Voltage Regulator in SOT23

Part	Voltage - Output	Main Purpose	Frequency - Switching	Voltage - Input [Max]	Voltage - Input [Min]	Board Type	Supplied Contents	Utilized IC / Part	Current - Output	Regulator Topology	Outputs and Type	Outputs and Type	Function	Output Type	Supplier Device Package	Number of Outputs	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Voltage - Output (Max) [Max]	Mounting Type	Voltage - Output (Min/Fixed)	Voltage - Input (Min) [Min]	Topology	Voltage - Input (Max) [Max]

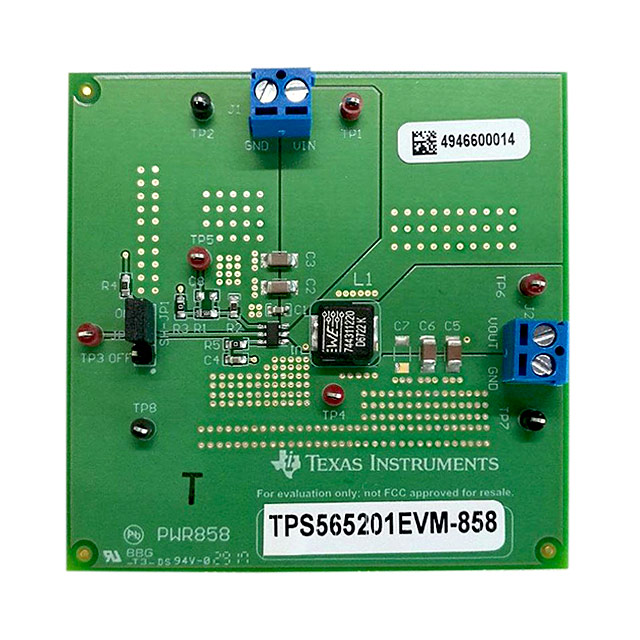

Texas Instruments TPS565201EVM-858	1.05 V	DC/DC Step Down	550 kHz	17 V	4.5 V	Fully Populated	Board(s)	TPS565201	5 A	Buck	Non-Isolated	1
Texas Instruments TPS565201DDCT			500 kHz						5 A				Step-Down	Adjustable	SOT-23-THIN	1	SOT-23-6 Thin TSOT-23-6	-40 °C	125 ¯C	Positive	7 V	Surface Mount	0.6 V	4.5 V	Buck	17 V
Texas Instruments TPS565201DDCR			500 kHz						5 A				Step-Down	Adjustable	SOT-23-THIN	1	SOT-23-6 Thin TSOT-23-6	-40 °C	125 ¯C	Positive	7 V	Surface Mount	0.6 V	4.5 V	Buck	17 V

Catalog

4.5V to 17V, 5A, Synchronous Step-Down Voltage Regulator in SOT23

Key Features

• 5-A Maximum Output CurrentIntegrated 31-mΩ and 16-mΩ FETsD-CAP2™ Mode Control with Fast Transient ResponseInput Voltage Range: 4.5 V to 17 VOutput Voltage Range: 0.76 V to 7 VHigh Efficiency at Light Loads with Pulse-skipping Eco-mode™500-kHz Switching Frequency≤1 µA Shutdown Current1% Feedback Voltage AccuracyStartup from Pre-Biased Output VoltageCycle-by-Cycle Current LimitHiccup-mode Overcurrent ProtectionNon-Latch UVP, UVLO and TSD Protections5-A Maximum Output CurrentIntegrated 31-mΩ and 16-mΩ FETsD-CAP2™ Mode Control with Fast Transient ResponseInput Voltage Range: 4.5 V to 17 VOutput Voltage Range: 0.76 V to 7 VHigh Efficiency at Light Loads with Pulse-skipping Eco-mode™500-kHz Switching Frequency≤1 µA Shutdown Current1% Feedback Voltage AccuracyStartup from Pre-Biased Output VoltageCycle-by-Cycle Current LimitHiccup-mode Overcurrent ProtectionNon-Latch UVP, UVLO and TSD Protections

Description

The TPS565201 is a simple, easy-to-use, 5-A synchronous step-down converter. The device is optimized to operate with minimum external component counts and also optimized to achieve low standby current. This switch mode power supply (SMPS) device employs D-CAP2™ control, which provides fast transient response and requires no external compensation components. D-CAP2 also allows the use of low-equivalent series resistance (ESR) specialty polymer capacitors and ceramic output capacitors. The TPS565201 operates in pulse skip mode, maintaining high efficiency during light load operation. The TPS565201 device is available in a 6-pin 1.6-mm × 2.9-mm SOT (DDC) package, and operates over a –40°C to 125°C junction temperature range. The TPS565201 is a simple, easy-to-use, 5-A synchronous step-down converter. The device is optimized to operate with minimum external component counts and also optimized to achieve low standby current. This switch mode power supply (SMPS) device employs D-CAP2™ control, which provides fast transient response and requires no external compensation components. D-CAP2 also allows the use of low-equivalent series resistance (ESR) specialty polymer capacitors and ceramic output capacitors. The TPS565201 operates in pulse skip mode, maintaining high efficiency during light load operation. The TPS565201 device is available in a 6-pin 1.6-mm × 2.9-mm SOT (DDC) package, and operates over a –40°C to 125°C junction temperature range.
