9552 Series
Manufacturer: Belden Inc.
Beta
⌘K

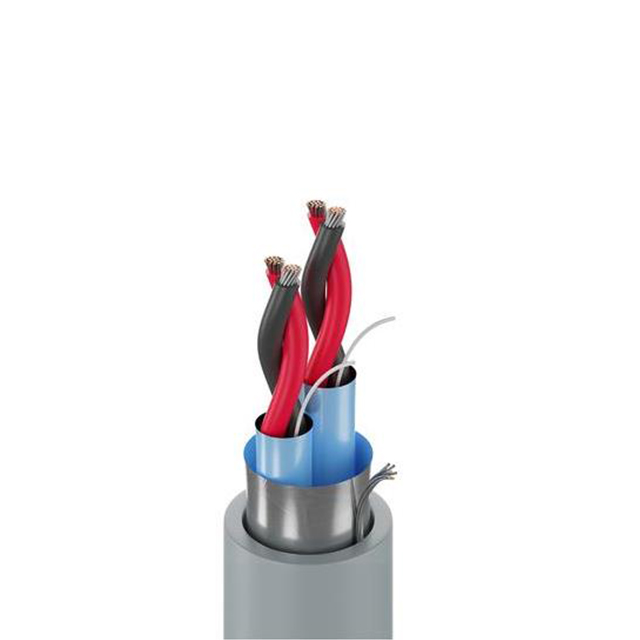

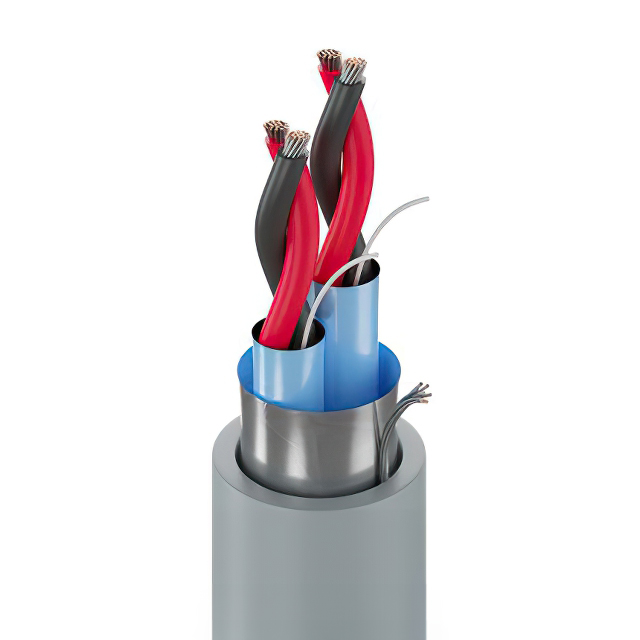

MULTI-PAIR 4COND 18AWG
| Part | Shield Material | Shield Coverage | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Cable Type | Conductor Material | Jacket (Insulation) Material | Operating Temperature [Min] | Operating Temperature [Max] | Features | Wire Gauge | Number of Conductors | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | 0.042 in | 1.067 mm | UL Style 2464 | 9.35 mm | 0.368 in | Chrome | 30 AWG | 19 | Foil | Multi-Pair | Copper Tinned | Poly-Vinyl Chloride (PVC) | -30 ░C | 105 ░C | Direct Burial Drain Wire Ripcord UV Resistant | 18 AWG | 4 | ||
 Belden Inc. | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | 0.042 in | 1.067 mm | UL Style 2464 | 9.35 mm | 0.368 in | Chrome | 30 AWG | 19 | Foil | Multi-Pair | Copper Tinned | Poly-Vinyl Chloride (PVC) | -30 ░C | 105 ░C | Drain Wire Rip Cord | 18 AWG | 4 | 152.4 m | 500 ft |
