745-059 Series
Manufacturer: EDAC Inc.
Beta
⌘K

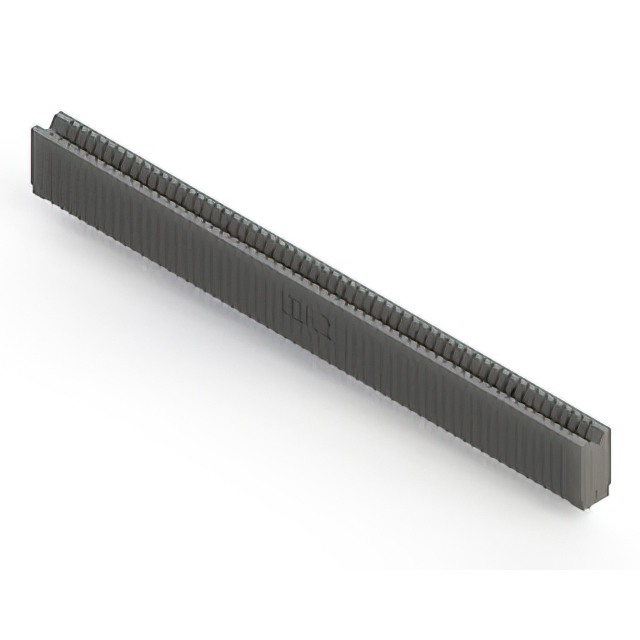

CONN EDGE SINGLE FML 59POS 0.100
| Part | Material - Insulation | Termination Rows | Number of Positions/Bay/Row [custom] | Contact Material | Pitch | Pitch | Contact Type | Contact Finish | Number of Positions | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Read Out | Mounting Type | Color | Contact Finish Thickness | Contact Finish Thickness | Card Type | Card Thickness [Max] | Card Thickness [Min] | Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | 59 | Copper Alloy | 0.1 " | 2.54 mm | Cantilever | Gold | 59 | 1 | -40 C | 105 ░C | Press-Fit | Single | Through Hole | Black | 30 Áin | 0.76 Ám | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female |
 EDAC Inc. | Polyester Thermoplastic | 1 | 59 | Copper Alloy | 0.1 " | 2.54 mm | Cantilever | Gold | 59 | 1 | -40 C | 105 ░C | Press-Fit | Single | Through Hole | Black | 30 Áin | 0.76 Ám | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female |
 EDAC Inc. | Polyester Thermoplastic | 1 | 59 | Copper Alloy | 0.1 " | 2.54 mm | Cantilever | Gold | 59 | 1 | -40 C | 105 ░C | Press-Fit | Single | Through Hole | Black | 30 Áin | 0.76 Ám | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female |
 EDAC Inc. | Polyester Thermoplastic | 1 | 59 | Copper Alloy | 0.1 " | 2.54 mm | Cantilever | Gold | 59 | 1 | -40 C | 105 ░C | Press-Fit Wire Wrap | Single | Through Hole | Black | 30 Áin | 0.76 Ám | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female |
