0665-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .015-.025 SOLDER

Part	Operating Temperature [Min]	Operating Temperature [Max]	Flange Diameter [diameter]	Flange Diameter [diameter]	Tail Type	Termination	Length - Overall [x]	Length - Overall [x]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Contact Finish Thickness	Contact Finish Thickness	Socket Depth [z]	Socket Depth [z]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter	Contact Finish	Contact Material

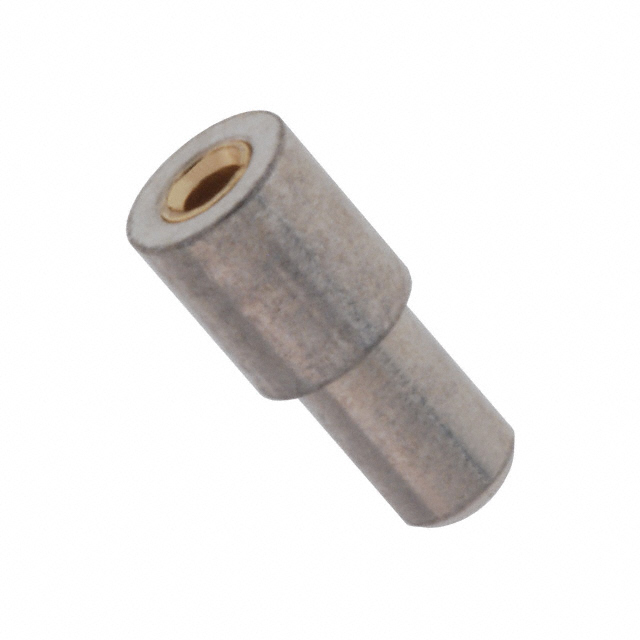

Mill-Max Manufacturing Corp. 0665-0-15-01-30-27-10-0	-55 C	125 °C	0.078 "	1.98 mm	No Tail	Solder	0.18 in	4.57 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	30 Áin	0.76 Ám	3.81 mm	0.15 in	0.061 "	1.55 mm	Gold	Beryllium Copper
Mill-Max Manufacturing Corp. 0665-0-15-80-30-84-10-0	-55 C	125 °C	0.078 "	1.98 mm	No Tail	Solder	0.18 in	4.57 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	100 µin	2.54 µm	3.81 mm	0.15 in	0.061 "	1.55 mm	Tin	Beryllium Copper
Mill-Max Manufacturing Corp. 0665-0-15-01-30-02-10-0	-55 C	125 °C	0.078 "	1.98 mm	No Tail	Solder	0.18 in	4.57 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	100 µin	2.54 µm	3.81 mm	0.15 in	0.061 "	1.55 mm	Tin-Lead	Beryllium Copper
Mill-Max Manufacturing Corp. 0665-0-15-80-30-27-10-0	-55 C	125 °C	0.078 "	1.98 mm	No Tail	Solder	0.18 in	4.57 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	30 Áin	0.76 Ám	3.81 mm	0.15 in	0.061 "	1.55 mm	Gold	Beryllium Copper
Mill-Max Manufacturing Corp. 0665-0-15-01-30-14-10-0	-55 C	125 °C	0.078 "	1.98 mm	No Tail	Solder	0.18 in	4.57 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	10 Áin	0.25 Ám	3.81 mm	0.15 in	0.061 "	1.55 mm	Gold	Beryllium Copper

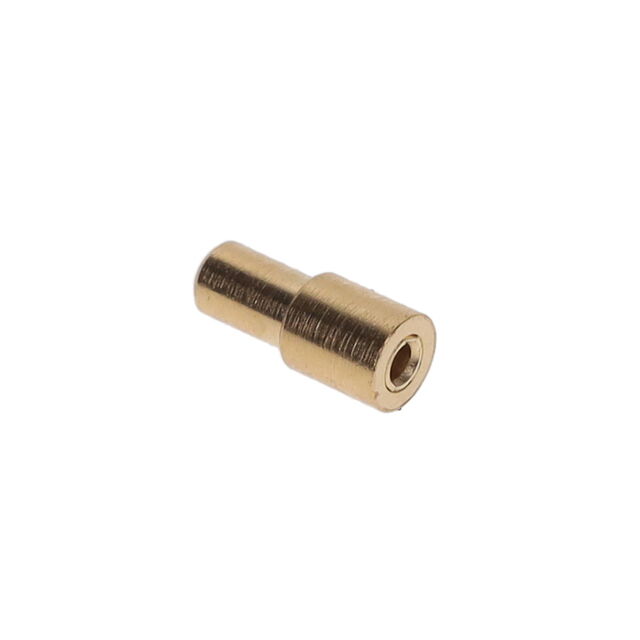

Mill-Max Manufacturing Corp. 0665-0-15-15-30-14-10-0	-55 C	125 °C	0.078 "	1.98 mm	No Tail	Solder	0.18 in	4.57 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	10 Áin	0.25 Ám	3.81 mm	0.15 in	0.061 "	1.55 mm	Gold	Beryllium Copper
