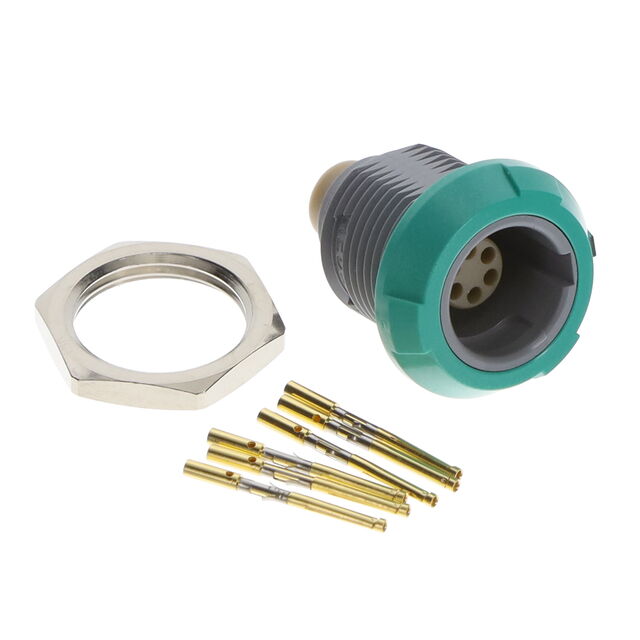

PLG.M0 Series
Manufacturer: LEMO
Beta
⌘K
CONN RCPT FMALE 6P GOLD SLDR CUP
| Part | Mounting Feature | Mounting Type | Shell Material | Ingress Protection | Current Rating (Amps) | Shielding | Connector Type | Insert Material | Contact Finish - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Number of Positions | Fastening Type | Color | Orientation [custom] | Primary Material | Shell Size - Insert | Termination | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO | Bulkhead - Rear Side Nut | Panel Mount | Polyetherimide (PEI) | IP50 - Dust Protected | 6 A | Unshielded | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Gold | 170 °C | -50 °C | Automotive Industrial Medical Testing Equipment & Measurement | 6 | Detent Lock Push-Pull | Gray | G | Plastic | M06 | ||
LEMO | Bulkhead - Rear Side Nut | Panel Mount | Polyetherimide (PEI) | IP50 - Dust Protected | 5 A | Unshielded | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Gold | 170 °C | -50 °C | Automotive Industrial Medical Testing Equipment & Measurement | 8 | Detent Lock Push-Pull | Gray | G | Plastic | M08 | Crimp | |
LEMO | Bulkhead - Rear Side Nut | Panel Mount | Polysulfone (PSU) | IP50 - Dust Protected | 5 A | Unshielded | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Gold | 150 °C | -50 °C | Automotive Industrial Medical Testing Equipment & Measurement | 8 | Detent Lock Push-Pull | Blue Gray | G | Plastic | M08 | ||
 LEMO | Bulkhead - Rear Side Nut | Panel Mount | Polyetherimide (PEI) | IP50 - Dust Protected | 6 A | Unshielded | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Gold | 170 °C | -50 °C | Automotive Industrial Medical Testing Equipment & Measurement | 6 | Detent Lock Push-Pull | Gray Green | G | Plastic | M06 | Crimp | |
LEMO | Bulkhead - Rear Side Nut | Panel Mount | Polyetherimide (PEI) | IP50 - Dust Protected | 7 A | Unshielded | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Gold | 170 °C | -50 °C | Automotive Industrial Medical Testing Equipment & Measurement | 5 | Detent Lock Push-Pull | Gray Yellow | G | Plastic | M05 | ||
LEMO | IP50 - Dust Protected | 7 A | Unshielded | Insert Female Sockets | Polyetheretherketone (PEEK) | Gold | Automotive Industrial Medical Testing Equipment & Measurement | 5 | G | M05 | Insert Only Requires Shell | |||||||||
LEMO | IP50 - Dust Protected | 7 A | Unshielded | Insert Female Sockets | Polyetheretherketone (PEEK) | Gold | Automotive Industrial Medical Testing Equipment & Measurement | 5 | G | M05 | Crimp | Insert Only Requires Shell | ||||||||
LEMO | Bulkhead - Rear Side Nut | Panel Mount | Polyetherimide (PEI) | IP50 - Dust Protected | 8 A | Unshielded | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Gold | 170 °C | -50 °C | Automotive Industrial Medical Testing Equipment & Measurement | 4 | Detent Lock Push-Pull | Black | G | Plastic | M04 | ||
LEMO | Bulkhead - Rear Side Nut | Panel Mount | Polyetherimide (PEI) | IP50 - Dust Protected | 8 A | Unshielded | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Gold | 170 °C | -50 °C | Automotive Industrial Medical Testing Equipment & Measurement | 4 | Detent Lock Push-Pull | G | Plastic | M04 | |||
LEMO | Bulkhead - Rear Side Nut | Panel Mount | Polysulfone (PSU) | IP50 - Dust Protected | 8 A | Unshielded | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Gold | 150 °C | -50 °C | Automotive Industrial Medical Testing Equipment & Measurement | 4 | Detent Lock Push-Pull | Black | G | Plastic | M04 |
