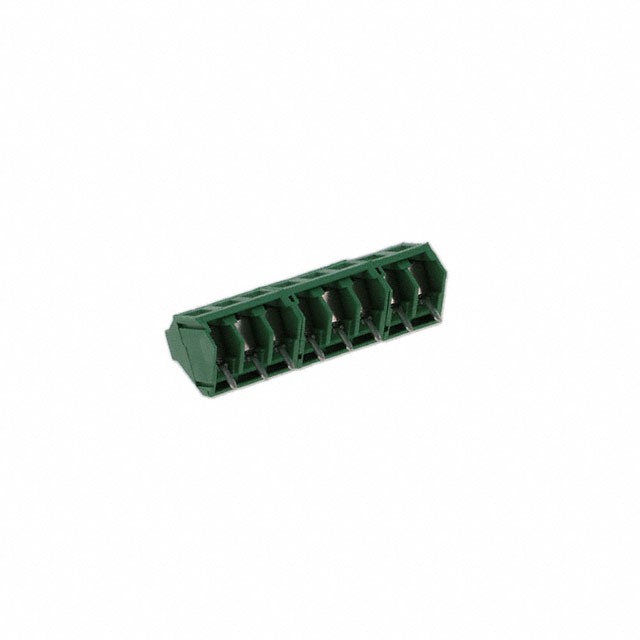

MI-258 Series
Manufacturer: Altech Corporation
Beta
⌘K
PCB TERM 5MMPS 45 DEG 8P 15A 300
| Part | Screw Material | Housing Material | Screw Thread | Torque - Screw | Contact Material | Plating | Clamp Material | Clamp Plating | Wire Gauge (AWG) (Min) | Wire Gauge (AWG) (Max) | Positions Per Level | Color | Pitch | Number of Levels | Mating Orientation (Angle) | Mating Orientation (Description) | Mating Orientation (Angle) (Alternate) | Current | Features | Mounting Type | Voltage | Wire Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Altech Corporation | ||||||||||||||||||||||
Altech Corporation | ||||||||||||||||||||||
 Altech Corporation | Galvanized Steel | Nylon PA Polyamide | M3 | 0.5 Nm | Brass | Tin Plated | Brass | Nickel Plated | 14 AWG | 30 AWG | 8 | Green | 5.08 mm | 1 | 45 ° | Angle with Board | 135 ° | 15 A | Interlocking (Side) | Through Hole | 300 V | Rising Cage Clamp Screw |
