MF-R015 Series

Catalog

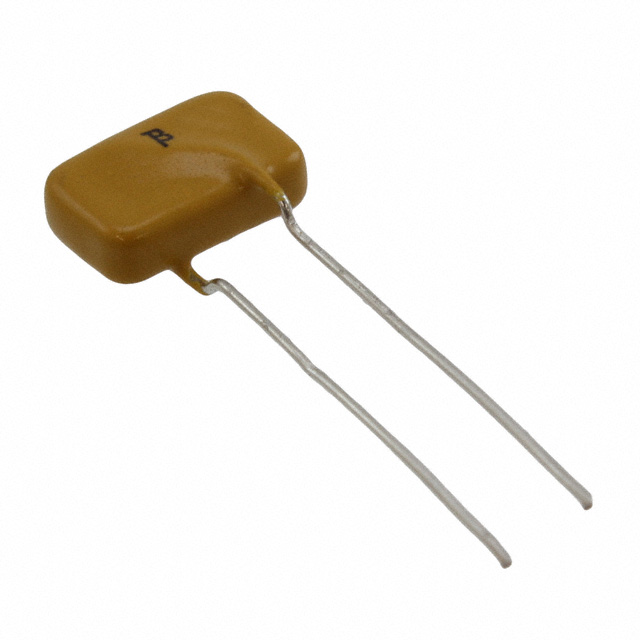

PTC RESET FUSE 250V 150MA RADIAL

Part	Approval Agency	Resistance - Post Trip (R1) (Max) [Max]	Time to Trip	Current - Trip (It)	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Resistance - Initial (Ri) (Min) [Min]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Lead Spacing	Lead Spacing	Current - Hold (Ih) (Max) [Max]	Current - Max [Max]	Voltage - Max [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]
Bourns Inc. MF-R015/600-0	cURus TUV	22 Ohms	5 s	300 mA	Box Radial	12.6 mm	0.496 in	6 Ohms	Polymeric	85 °C	-40 C	Through Hole	0.197 "	5 mm	150 mA	3 A	250 V	6 mm	0.531 in	13.5 mm	0.236 "
Bourns Inc. MF-R015/600-F-2	cURus TUV	22 Ohms	5 s	300 mA	Box Radial	12.6 mm	0.496 in		Polymeric	85 °C	-40 C	Through Hole	0.197 "	5 mm	150 mA	3 A	250 V	6 mm	0.531 in	13.5 mm	0.236 "
Bourns Inc. MF-R015/600-B05-0	cURus TUV	22 Ohms	5 s	300 mA	Box Radial	12.6 mm	0.496 in	9 Ohms	Polymeric	85 °C	-40 C	Through Hole	0.197 "	5 mm	150 mA	3 A	250 V	6 mm	0.531 in	13.5 mm	0.236 "
Bourns Inc. MF-R015/600-F-0	cURus TUV	22 Ohms	5 s	300 mA	Box Radial	12.6 mm	0.496 in		Polymeric	85 °C	-40 C	Through Hole	0.197 "	5 mm	150 mA	3 A	250 V	6 mm	0.531 in	13.5 mm	0.236 "
Bourns Inc. MF-R015/600-2-99	cURus TUV	22 Ohms	5 s	300 mA	Box Radial	12.6 mm	0.496 in	6 Ohms	Polymeric	85 °C	-40 C	Through Hole	0.197 "	5 mm	150 mA	3 A	250 V	6 mm	0.531 in	13.5 mm	0.236 "
Bourns Inc. MF-R015/600-B-0	cURus TUV	22 Ohms	5 s	300 mA	Box Radial	12.6 mm	0.496 in	9 Ohms	Polymeric	85 °C	-40 C	Through Hole	0.197 "	5 mm	150 mA	3 A	250 V	6 mm	0.531 in	13.5 mm	0.236 "
