09370161 Series
Manufacturer: HARTING
Beta
⌘K
HAN M BASE SURFACE LC 2 LEVERS 1 ENTRY P ROHS COMPLIANT: NA
| Part | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size | Operating Temperature [Max] | Operating Temperature [Min] | Style | Housing Color | Housing Material | Connector Type | Ingress Protection | Thread Size | Lock Location | Housing Finish | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

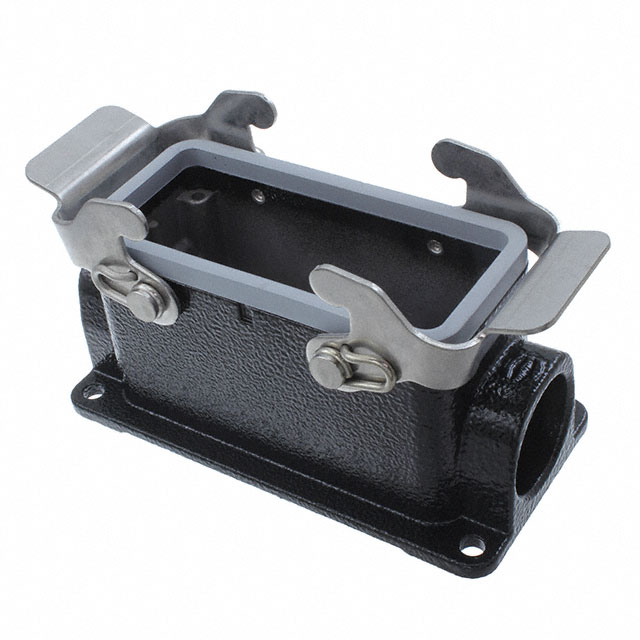

 HARTING | 2.197 in | 117 mm | 4.606 in | 2.244 " | 57 mm | 55.8 mm | 16 B | 125 °C | -40 C | Side Entry | Black | Aluminum Die Cast | Base - Box Mount | IP65 - Dust Tight Water Resistant | PG21 | Locking Clip (2) on Base Bottom | Powder Coated | ||

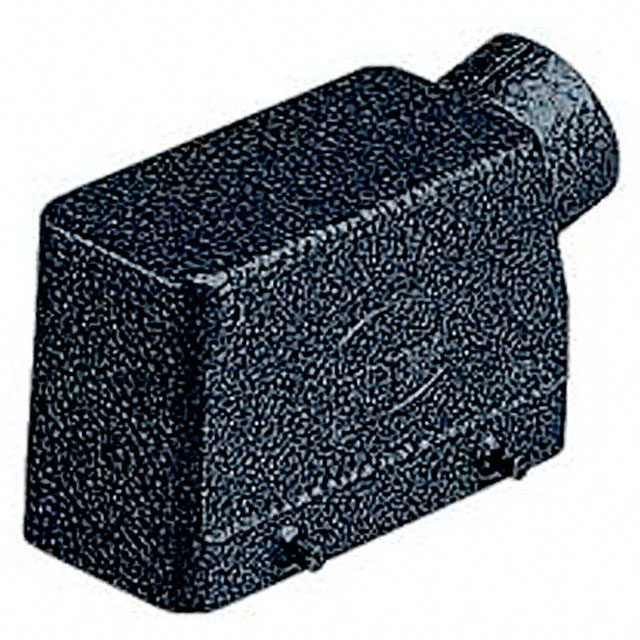

 HARTING | 3.681 in 93.5 mm | 16 B | 125 °C | -40 C | Side Entry | Black | Aluminum Die Cast | Hood | IP65 - Dust Tight Water Resistant | PG21 | Locking Clip (2) on Base Bottom | Epoxy Powder Paint | 1.693 " 43 mm | 2.461 in 62.5 mm |
