MPM-30 Series

Catalog

AC/DC CONVERTER 48V 30W

Part	Load Regulation	Line Regulation	Current - Output (Max) [Max]	Features	Package / Case	Applications	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Mounting Type	Number of Outputs	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Power (Watts)	Voltage - Output 1	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Type	Voltage - Isolation	Current - Output 1	Load Regulation

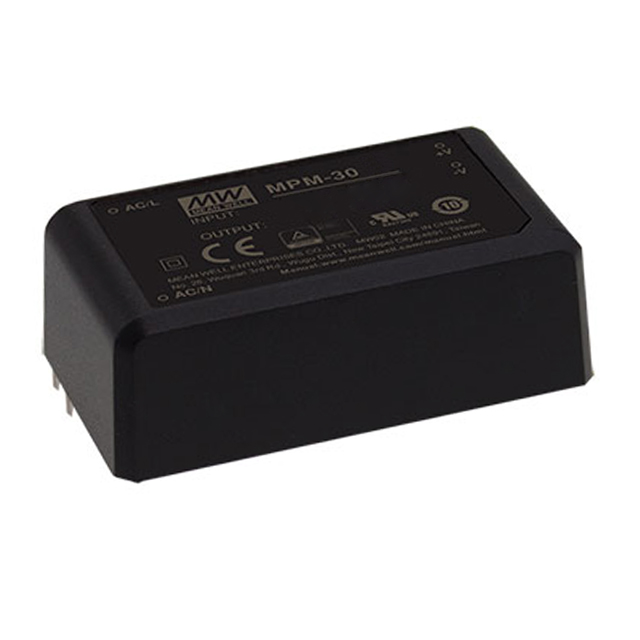

MEAN WELL USA Inc. MPM-30-48	0.5 %	0.5 %	630 mA	Universal Input	5-DIP Module	Medical	80 VAC	264 VAC	CB CE cURus TUV	Through Hole	1	2.74 "	69.5 mm	1.54 in	24 mm	39 mm	0.94 "	30 Watts	48 V	91 %	-40 °C	85 °C	Enclosed

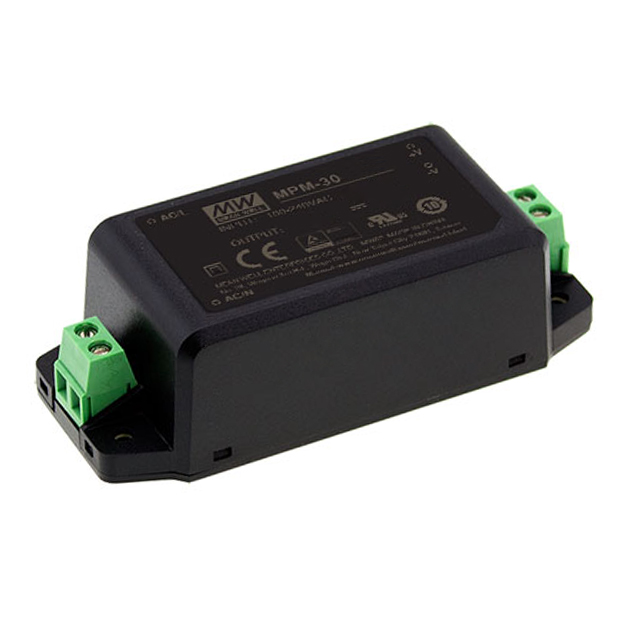

MEAN WELL USA Inc. MPM-30-48ST						Household Appliances Medical	80 VAC	264 VAC	CB CE cURus TUV	Chassis Mount	1	3.58 in	90.9 mm	1.55 "	28.4 mm	39.4 mm	1.12 "	30 Watts	48 V	91 %	-40 °C	85 °C	Enclosed	4000 V	630 mA
MEAN WELL USA Inc. MPM-30-3.3		0.5 %	6 A	Universal Input	5-DIP Module	Medical	80 VAC	264 VAC	CB CE cURus TUV	Through Hole	1	2.74 "	69.5 mm	1.54 in	24 mm	39 mm	0.94 "	20 W	3.3 V	82.5 %	-40 °C	85 °C	Enclosed			±1%
MEAN WELL USA Inc. MPM-30-12ST						Household Appliances Medical	80 VAC	264 VAC	CB CE cURus TUV	Chassis Mount	1	3.58 in	90.9 mm	1.55 "	28.4 mm	39.4 mm	1.12 "	30 Watts	12 V	90 %	-40 °C	85 °C	Enclosed	4000 V	2.5 A
MEAN WELL USA Inc. MPM-30-15	0.5 %	0.5 %	2 A	Universal Input	5-DIP Module	Medical	80 VAC	264 VAC	CB CE cURus TUV	Through Hole	1	2.74 "	69.5 mm	1.54 in	24 mm	39 mm	0.94 "	30 Watts	15 V	89 %	-40 °C	85 °C	Enclosed
MEAN WELL USA Inc. MPM-30-5		0.5 %	6 A	Universal Input	5-DIP Module	Medical	80 VAC	264 VAC	CB CE cURus TUV	Through Hole	1	2.74 "	69.5 mm	1.54 in	24 mm	39 mm	0.94 "	30 Watts	5 V	86.5 %	-40 °C	85 °C	Enclosed			±1%
MEAN WELL USA Inc. MPM-30-5ST						Household Appliances Medical	80 VAC	264 VAC	CB CE cURus TUV	Chassis Mount	1	3.58 in	90.9 mm	1.55 "	28.4 mm	39.4 mm	1.12 "	30 Watts	5 V	86.5 %	-40 °C	85 °C	Enclosed	4000 V	6 A
