TPS23750 Series
Manufacturer: Texas Instruments
Beta
⌘K
EVAL MODULE FOR TPS23750 HPA108
| Part | Voltage - Input [Min] | Voltage - Input [Max] | Regulator Topology | Utilized IC / Part | Voltage - Output | Current - Output | Supplied Contents | Outputs and Type | Outputs and Type | Main Purpose | Board Type | Power - Output | Current - Supply | Number of Channels | Supplier Device Package | Internal Switch(s) | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Max] | Voltage - Supply [Min] | Power - Max [Max] | Type | Auxiliary Sense | Standards | Package / Case | Package / Case [custom] | Package / Case | Frequency - Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

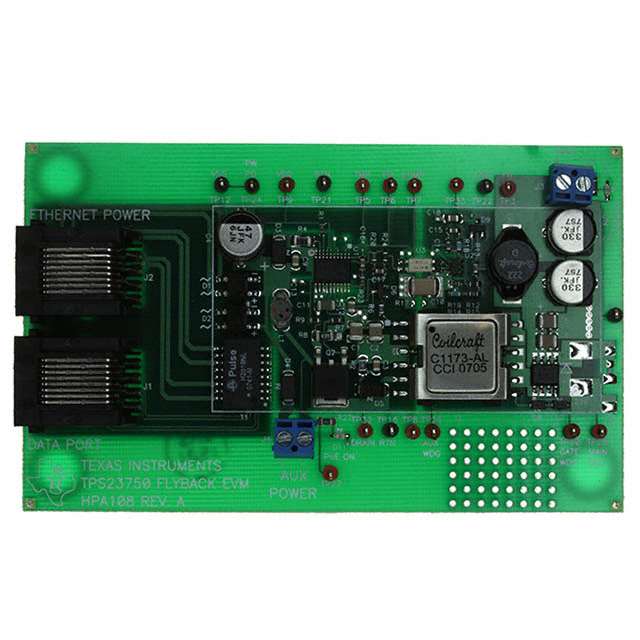

 Texas Instruments | 36 V | 57 V | Flyback | TPS23750 | 3.3 V | 3 A | Board(s) | Isolated | 1 | Power Over Ethernet Special Purpose DC/DC | Fully Populated | 9.9 W | |||||||||||||||||
 Texas Instruments | 2 mA | 1 | 20-HTSSOP | Surface Mount | 85 °C | -40 °C | 67 V | 0 V | 12.95 W | Controller (PD) DC/DC | 802.3af (PoE) | 20-PowerTSSOP | 4.4 mm | 0.173 in | |||||||||||||||

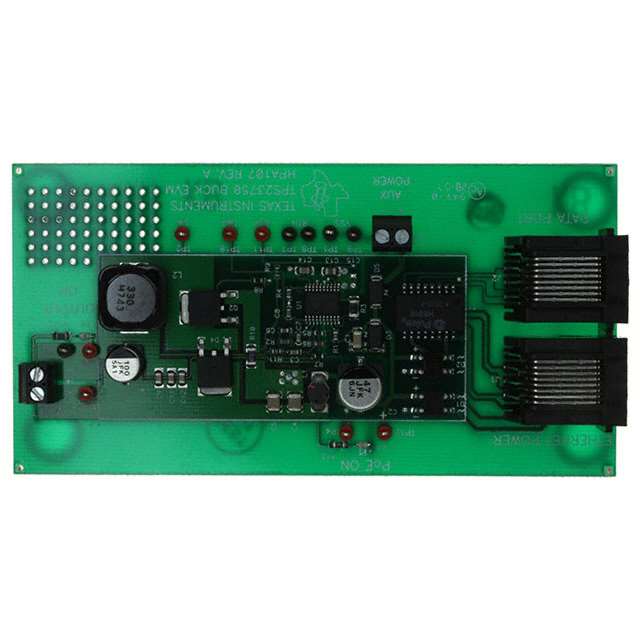

 Texas Instruments | 36 V | 57 V | Buck | TPS23750 | 5 V | 2 A | Board(s) | Non-Isolated | 1 | Power Over Ethernet Special Purpose DC/DC | Fully Populated | 10 W | 200 kHz | ||||||||||||||||
Texas Instruments | 2 mA | 1 | 20-HTSSOP | Surface Mount | 85 °C | -40 °C | 67 V | 0 V | 12.95 W | Controller (PD) DC/DC | 802.3af (PoE) | 20-PowerTSSOP | 4.4 mm | 0.173 in |
