C09131H Series

Manufacturer: Amphenol Tuchel Industrial

Catalog

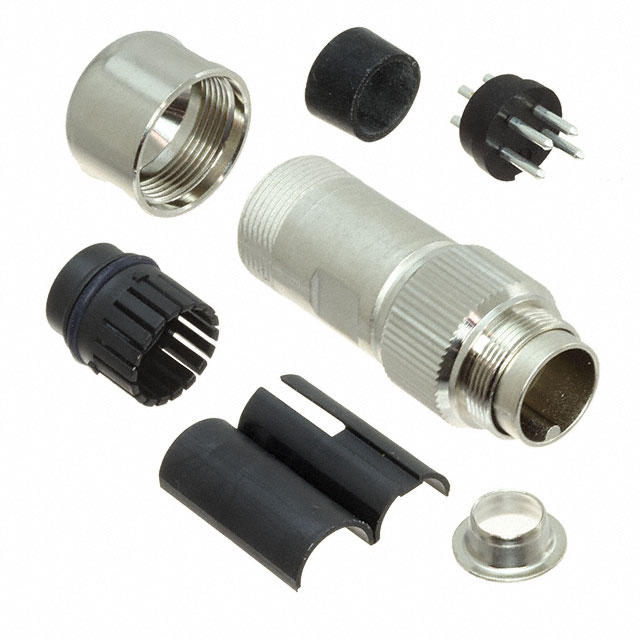

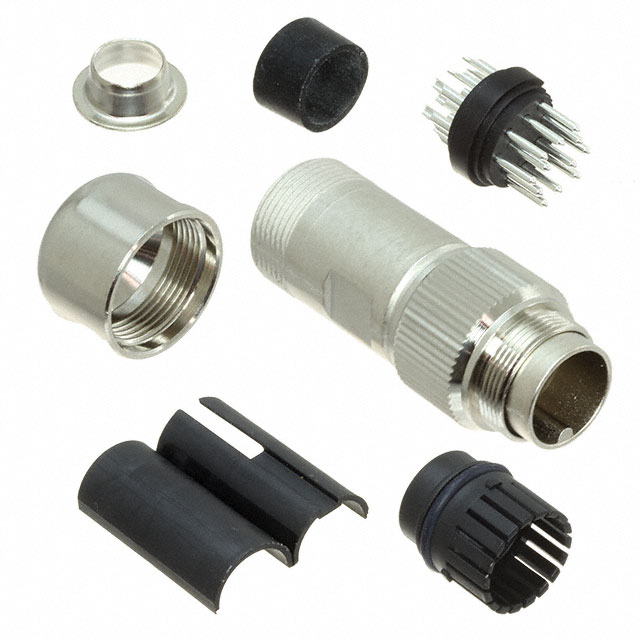

CONN PLUG MALE 3P SILV SLDR CUP

Part	Primary Material	Current Rating (Amps)	Ingress Protection	Fastening Type	Shell Size - Insert	Shielding	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Features	Mounting Type	Connector Type	Color	Shell Material	Shell Finish	Orientation	Number of Positions

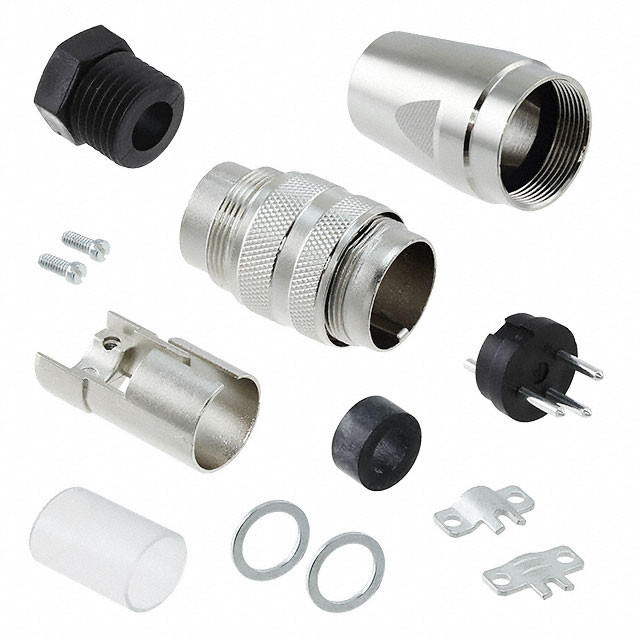

Amphenol Tuchel Industrial C09131H0031002U	Metal	10 A	IP65 IP67 IP69K	Threaded	M16-3	Shielded	Silver	-40 C	100 °C	60 VDC	Strain Relief	Free Hanging (In-Line)	Plug Male Pins	Silver	Die Cast	Nickel	Keyed

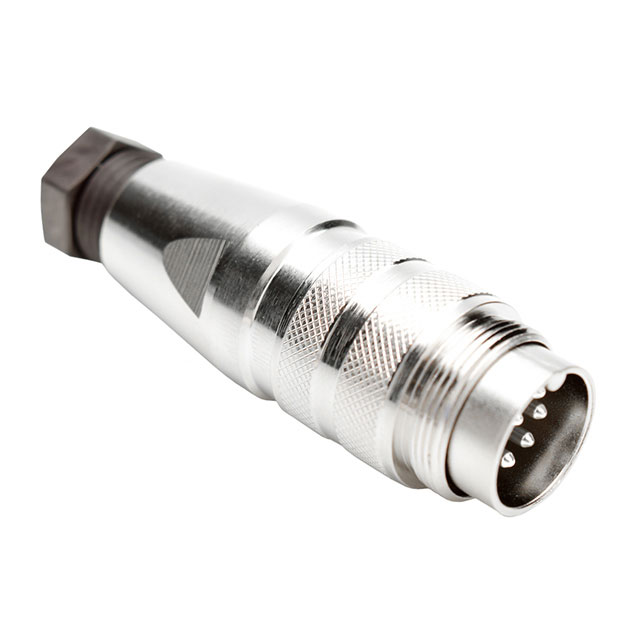

Amphenol Tuchel Industrial C09131H0081002U	Metal	7 A	IP65 IP67 IP69K	Threaded	M16-8	Shielded	Silver	-40 C	100 °C	60 VDC	Strain Relief	Free Hanging (In-Line)	Plug Male Pins	Silver	Die Cast	Nickel	Keyed	8
Amphenol Tuchel Industrial C09131H0081014U	Metal		IP68 IP69K	Threaded	M16-8		Silver	-40 C	100 °C		Backshell Coupling Nut Strain Relief	Free Hanging (In-Line)	Plug Male Pins	Silver	Zinc Die Cast	Nickel	Keyed	8

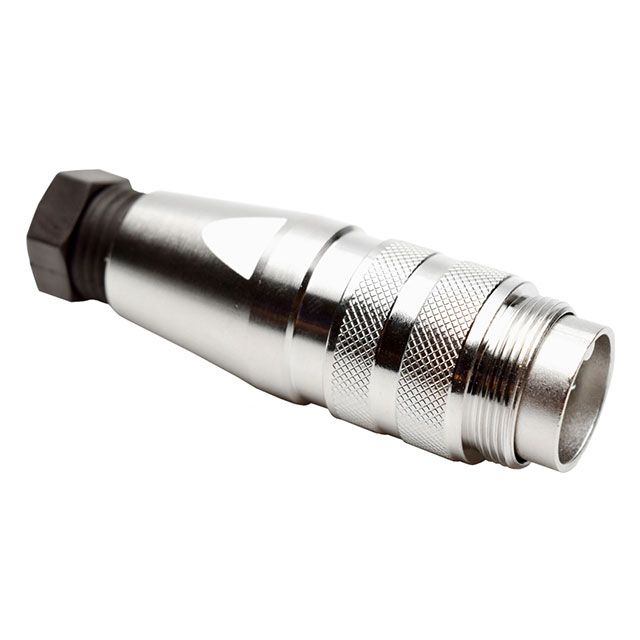

Amphenol Tuchel Industrial C09131H0051002U	Metal	7 A	IP65 IP67 IP69K	Threaded	M16-5	Shielded	Silver	-40 C	100 °C	60 VDC	Strain Relief	Free Hanging (In-Line)	Plug Male Pins	Silver	Die Cast	Nickel	Keyed	5

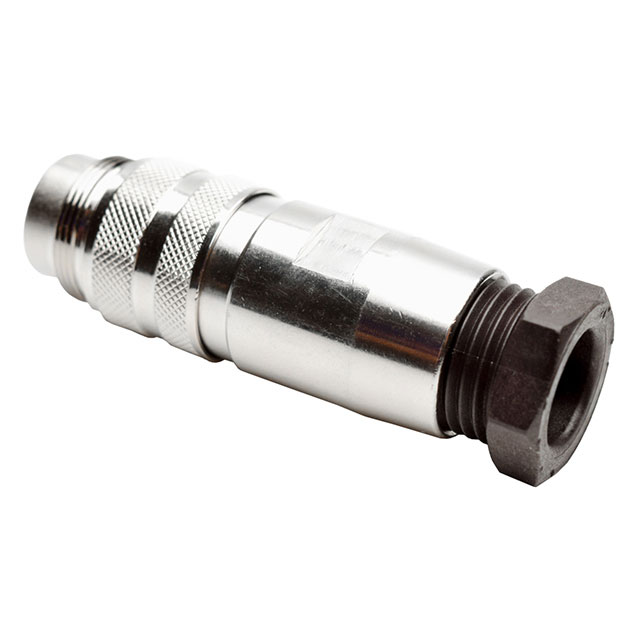

Amphenol Tuchel Industrial C09131H0071012U	Metal	7 A	IP65 IP67 IP69K	Threaded	M16-7	Shielded	Silver	-40 C	100 °C	60 VDC	Strain Relief	Free Hanging (In-Line)	Plug Male Pins	Silver	Die Cast	Nickel	Keyed	7

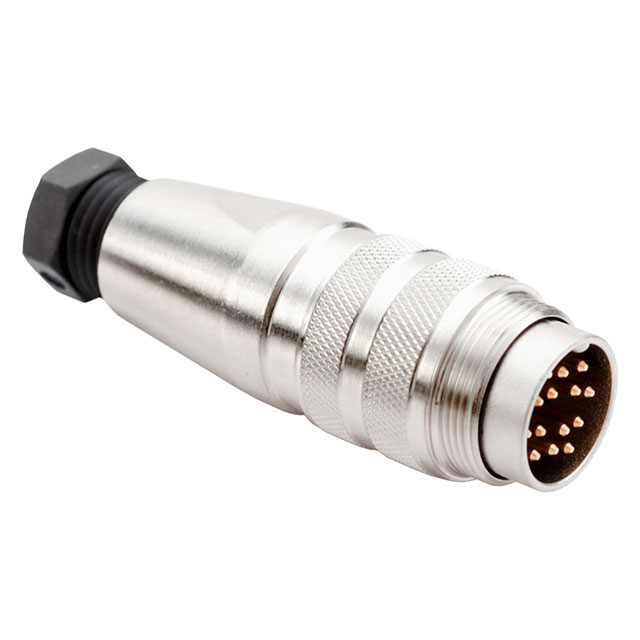

Amphenol Tuchel Industrial C09131H0142002U	Metal	3 A	IP65 IP67 IP69K	Threaded	M16-14	Shielded	Gold	-40 C	100 °C	250 V	Strain Relief	Free Hanging (In-Line)	Plug Male Pins	Silver	Die Cast	Nickel	Keyed	14

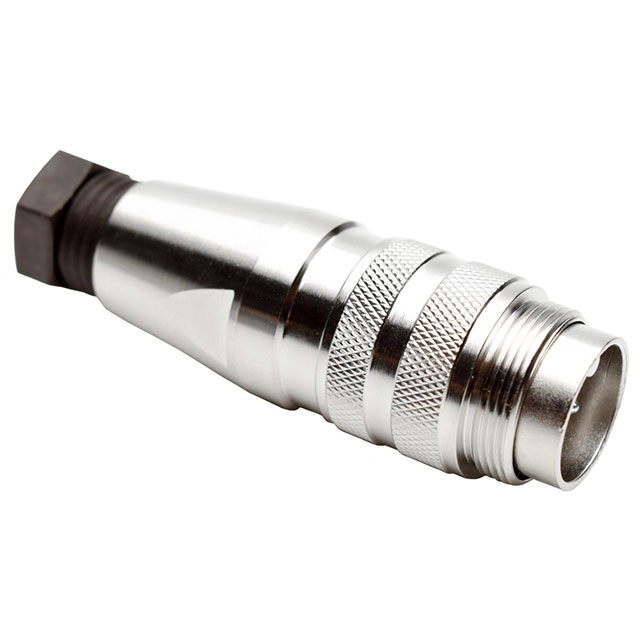

Amphenol Tuchel Industrial C09131H0041002U	Metal	10 A	IP65 IP67 IP69K	Threaded	M16-4	Shielded	Silver	-40 C	100 °C	60 VDC	Strain Relief	Free Hanging (In-Line)	Plug Male Pins	Silver	Die Cast	Nickel	Keyed	4
Amphenol Tuchel Industrial C09131H0121024U	Metal		IP68 IP69K	Threaded	M16-12		Silver	-40 C	100 °C		Backshell Coupling Nut Strain Relief	Free Hanging (In-Line)	Plug Male Pins	Silver	Zinc Die Cast	Nickel	Keyed	12
Amphenol Tuchel Industrial C09131H0051024U	Metal		IP68 IP69K	Threaded	M16-5		Silver	-40 C	100 °C		Backshell Coupling Nut Strain Relief	Free Hanging (In-Line)	Plug Male Pins	Silver	Zinc Die Cast	Nickel	Keyed	5

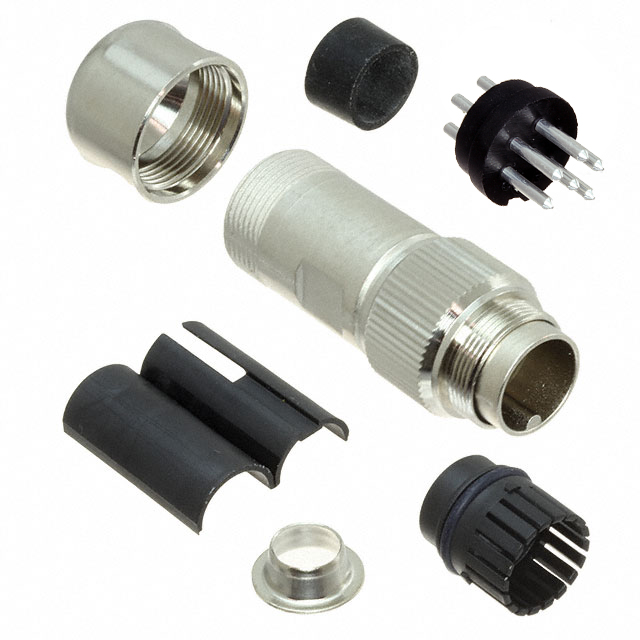

Amphenol Tuchel Industrial C09131H0061014U	Metal		IP68 IP69K	Threaded	M16-6		Silver	-40 C	100 °C		Backshell Coupling Nut Strain Relief	Free Hanging (In-Line)	Plug Male Pins	Silver	Zinc Die Cast	Nickel	Keyed	6
