302-S26 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

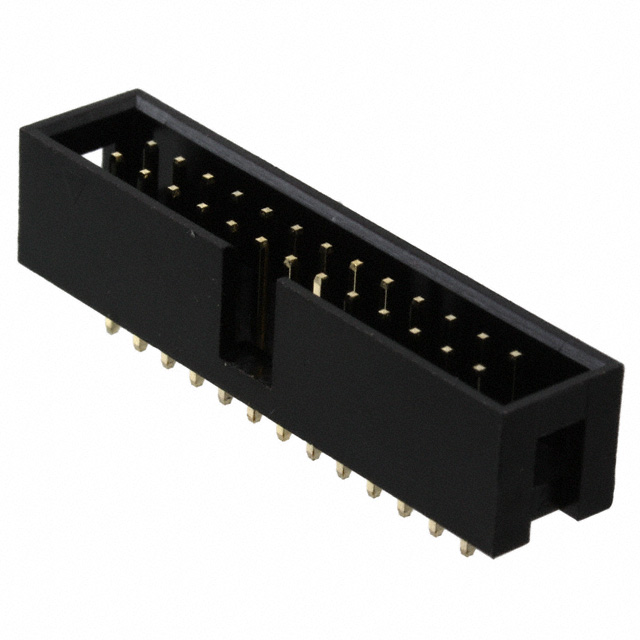

CONN HEADER VERT 26POS 2.54MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Material | Material Flammability Rating | Style | Contact Finish - Post | Termination | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Mounting Type | Contact Finish Thickness - Mating | Contact Length - Post [x] | Contact Length - Post [x] | Contact Shape | Shrouding | Insulation Height | Insulation Height | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Contact Type | Contact Material | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Positions | Contact Finish - Mating | Fastening Type | Insulation Color | Number of Rows [custom] | Connector Type | Features | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 1.25 µin | 0.032 µm | Polyester Glass Filled | UL94 V-0 | Board to Cable/Wire | Gold | Solder | 0.1 " | 2.54 mm | All | Through Hole | Flash | 0.122 in | 3.1 mm | Square | Shrouded - 4 Wall | 0.358 " | 9.1 mm | -40 C | 105 ░C | 3 A | Male Pin | Brass | 0.1 in | 2.54 mm | 26 | Gold | Push-Pull | Black | 2 | Header | Keying Slot | 250 V |
