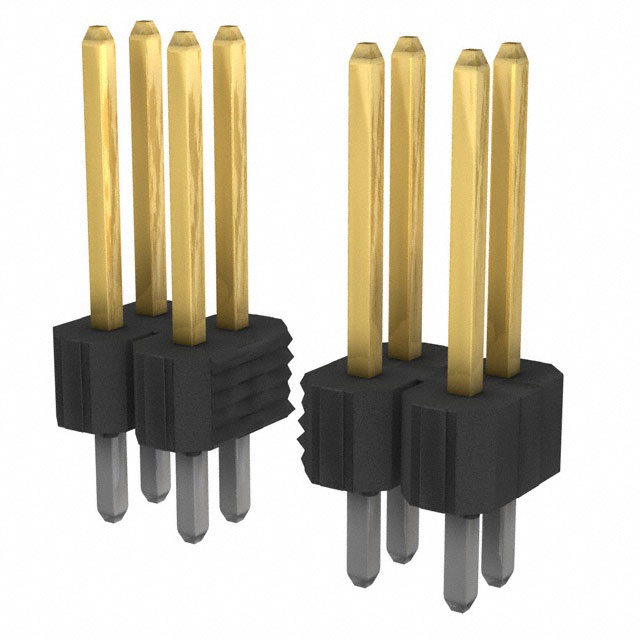

68691 Series

Catalog

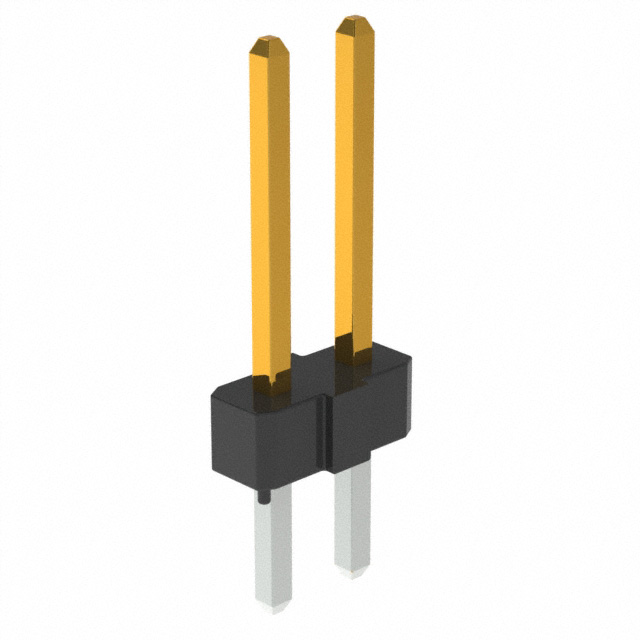

CONN HEADER VERT 45000POS 2.54MM

Part	Pitch - Mating	Pitch - Mating	Shrouding	Number of Positions	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Mounting Type	Contact Length - Mating [x]	Contact Length - Mating [x]	Fastening Type	Contact Shape	Contact Finish - Mating	Number of Rows	Termination	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Insulation Height	Insulation Height	Contact Material	Number of Positions Loaded	Contact Type	Overall Contact Length	Overall Contact Length	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Finish - Post
Amphenol ICC (FCI) 68691-200HLF	0.1 in	2.54 mm	Unshrouded	Cuttable	UL94 V-0	15 µin	0.38 µm	3 A	Through Hole	0.318 "	8.08 mm	Push-Pull	Square	Gold or Gold GXT™	2	Solder	0.12 in	3.05 mm	Black	2.54 mm	0.1 in	Header	0.1 in	2.54 mm	Phosphor Bronze	All	Male Pin	0.538 "	13.67 mm	-65 ░C	130 °C

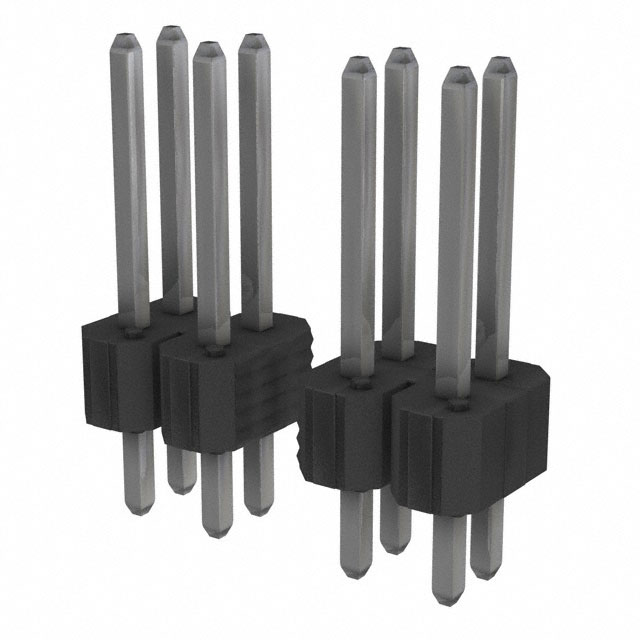

Amphenol ICC (FCI) 68691-436HLF	0.1 in	2.54 mm	Unshrouded		UL94 V-0	100 çin	2.54 çm	3 A	Through Hole	0.318 "	8.08 mm	Push-Pull	Square		2	Solder	0.12 in	3.05 mm	Black	2.54 mm	0.1 in	Header	0.1 in	2.54 mm	Phosphor Bronze	All	Male Pin	0.538 "	13.67 mm	-65 ░C	130 °C	36	Tin
Amphenol ICC (FCI) 68691-430HLF	0.1 in	2.54 mm	Unshrouded		UL94 V-0	100 çin	2.54 çm	3 A	Through Hole	0.318 "	8.08 mm	Push-Pull	Square		2	Solder	0.12 in	3.05 mm	Black	2.54 mm	0.1 in	Header	0.1 in	2.54 mm	Phosphor Bronze	All	Male Pin	0.538 "	13.67 mm	-65 ░C	130 °C	30	Tin
Amphenol ICC (FCI) 68691-172H	0.1 in	2.54 mm	Unshrouded		UL94 V-0	30 Áin	0.76 Ám		Through Hole	0.318 "	8.08 mm	Push-Pull	Square	Gold or Gold GXT™	2	Solder	0.12 in	3.05 mm	Black	2.54 mm	0.1 in	Header	0.1 in	2.54 mm	Phosphor Bronze	All	Male Pin	0.538 "	13.67 mm			72
Amphenol ICC (FCI) 68691-158HLF	0.1 in	2.54 mm	Unshrouded		UL94 V-0	30 Áin	0.76 Ám	3 A	Through Hole	0.318 "	8.08 mm	Push-Pull	Square	Gold or Gold GXT™	2	Solder	0.12 in	3.05 mm	Black	2.54 mm	0.1 in	Header	0.1 in	2.54 mm	Phosphor Bronze	All	Male Pin	0.538 "	13.67 mm	-65 ░C	130 °C	58

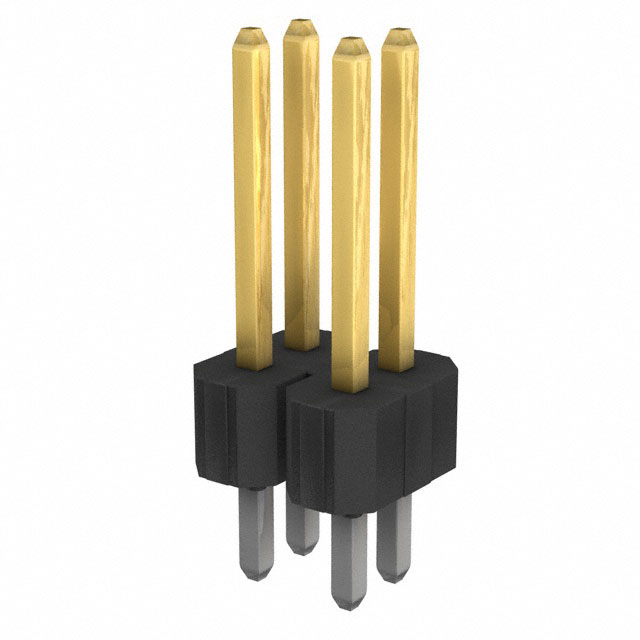

Amphenol ICC (FCI) 68691-104HLF	0.1 in	2.54 mm	Unshrouded		UL94 V-0	30 Áin	0.76 Ám	3 A	Through Hole	0.318 "	8.08 mm	Push-Pull	Square	Gold or Gold GXT™	2	Solder	0.12 in	3.05 mm	Black	2.54 mm	0.1 in	Header	0.1 in	2.54 mm	Phosphor Bronze	All	Male Pin	0.538 "	13.67 mm	-65 ░C	130 °C	4
Amphenol ICC (FCI) 68691-420	0.1 in	2.54 mm	Unshrouded		UL94 V-0	100 çin	2.54 çm		Through Hole	0.318 "	8.08 mm	Push-Pull	Square		2	Solder	0.12 in	3.05 mm	Black	2.54 mm	0.1 in	Header	0.1 in	2.54 mm	Phosphor Bronze	All	Male Pin	0.538 "	13.67 mm			20
Amphenol ICC (FCI) 68691-434HLF	0.1 in	2.54 mm	Unshrouded		UL94 V-0	100 çin	2.54 çm	3 A	Through Hole	0.318 "	8.08 mm	Push-Pull	Square		2	Solder	0.12 in	3.05 mm	Black	2.54 mm	0.1 in	Header	0.1 in	2.54 mm	Phosphor Bronze	All	Male Pin	0.538 "	13.67 mm	-65 ░C	130 °C	34	Tin
Amphenol ICC (FCI) 68691-810HLF	0.1 in	2.54 mm	Unshrouded		UL94 V-0	15 µin	0.38 µm	3 A	Through Hole	0.318 "	8.08 mm	Push-Pull	Square	Gold or Gold GXT™	2	Solder	0.12 in	3.05 mm	Black	2.54 mm	0.1 in	Header	0.1 in	2.54 mm	Phosphor Bronze	All	Male Pin	0.538 "	13.67 mm	-65 ░C	130 °C	10

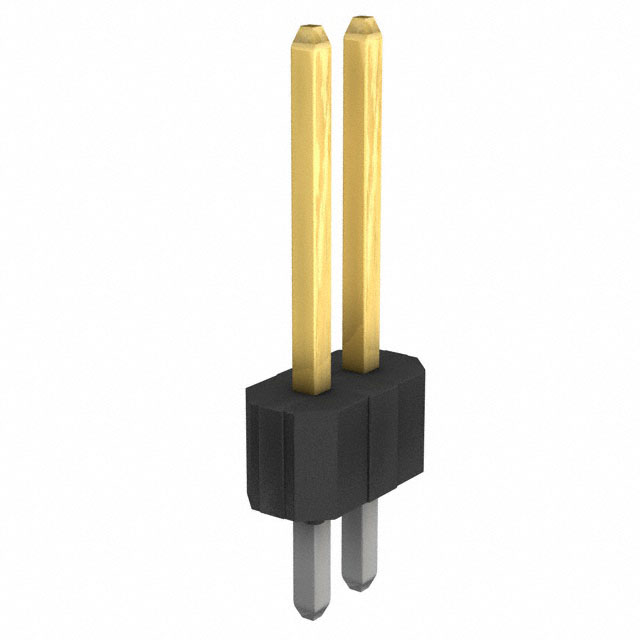

Amphenol ICC (FCI) 68691-102HLF			Unshrouded		UL94 V-0	30 Áin	0.76 Ám	3 A	Through Hole	0.318 "	8.08 mm	Push-Pull	Square	Gold or Gold GXT™	2	Solder	0.12 in	3.05 mm	Black	2.54 mm	0.1 in	Header	0.1 in	2.54 mm	Phosphor Bronze	All	Male Pin	0.538 "	13.67 mm	-65 ░C	130 °C	2
