FVS.03 Series
Manufacturer: LEMO
Beta
⌘K

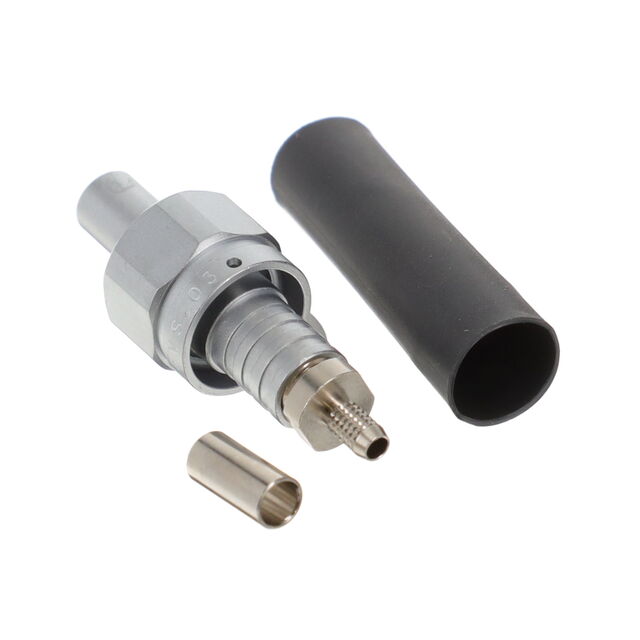

CONN INLINE PLUG COAX PIN CRIMP
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Center Contact Plating | Mating Cycles | Body Material | Body Finish | Mounting Type | Center Contact Material | Frequency - Max [Max] | Impedance | Ingress Protection | Connector Style | Fastening Type | Housing Color | Shield Termination | Contact Termination | Connector Type | Cable Group | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
200 °C | -20 ░C | Polyetheretherketone (PEEK) | Gold | 1000 | Brass | Chrome | Free Hanging (In-Line) | Brass | 500 MHz | 50 Ohms | IP68 - Dust Tight Waterproof | Coaxial | Push-Pull | Silver | Crimp | Crimp | Plug Male Pin | 196 | RG-178 | |
200 °C | -20 ░C | Polyetheretherketone (PEEK) | Gold | 1000 | Brass | Chrome | Free Hanging (In-Line) | Brass | 500 MHz | 50 Ohms | IP68 - Dust Tight Waterproof | Coaxial | Push-Pull | Silver | Crimp | Crimp | Plug Male Pin | 188A 316 RG-174A |
