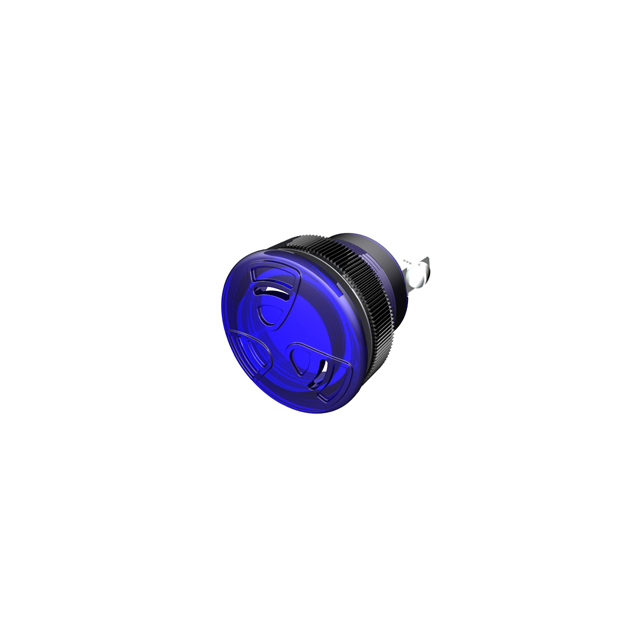

TLHB-88B Series
Manufacturer: Floyd Bell Inc
Beta
⌘K
BUZZER 33.02MM PNL MNT
| Part | Mounting Type | Ingress Protection | Port Location | Driver Circuitry | Input Type | Size / Dimension [diameter] | Size / Dimension [diameter] | Sound Pressure Level (SPL) | Frequency | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Termination | Termination | Termination | Voltage Range [Max] | Voltage Range [Min] | Current - Supply [Min] [x] | Current - Supply [Max] [x] | Operating Mode | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Floyd Bell Inc | Panel Mount | IP68 - Dust Tight Waterproof | Top | Indicator Internally Driven | DC | 1.3 in | 33.02 mm | 103 dB | 2.9 kHz | 29.97 mm | 1.18 in | 0.25 " | Screw Terminal Quick Connect Tab | 6.35 mm | 30 V | 9 V | 50 mA | 110 mA | Fast Pulse | UL UR |
 Floyd Bell Inc | Panel Mount | IP68 - Dust Tight Waterproof | Top | Indicator Internally Driven | DC | 1.3 in | 33.02 mm | 103 dB | 2.9 kHz | 29.97 mm | 1.18 in | 0.25 " | Quick Connect Tab | 6.35 mm | 30 V | 9 V | 50 mA | 110 mA | Pulse Slow | UL UR |
 Floyd Bell Inc | Panel Mount | IP68 - Dust Tight Waterproof | Top | Indicator Internally Driven | DC | 1.3 in | 33.02 mm | 103 dB | 2.9 kHz | 29.97 mm | 1.18 in | 0.25 " | Quick Connect Tab | 6.35 mm | 30 V | 9 V | 50 mA | 110 mA | Fast Pulse | UL UR |
 Floyd Bell Inc | Panel Mount | IP68 - Dust Tight Waterproof | Top | Indicator Internally Driven | DC | 1.3 in | 33.02 mm | 103 dB | 2.9 kHz | 29.97 mm | 1.18 in | 0.25 " | Screw Terminal Quick Connect Tab | 6.35 mm | 30 V | 9 V | 50 mA | 110 mA | Pulse Slow | UL UR |
