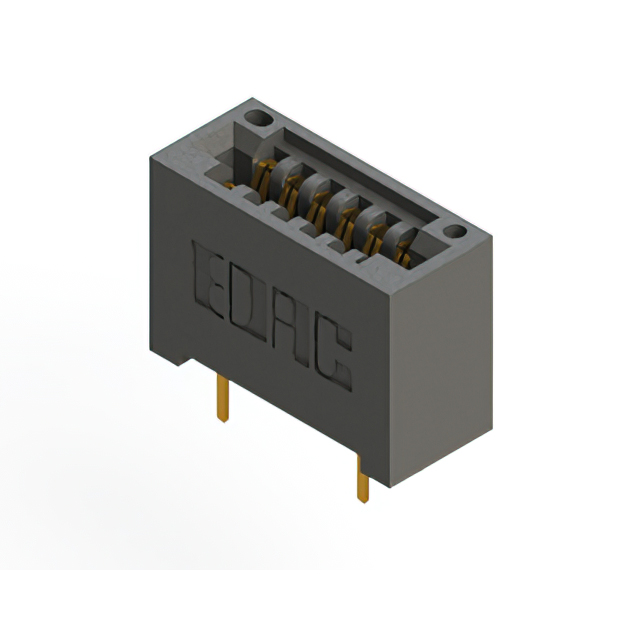

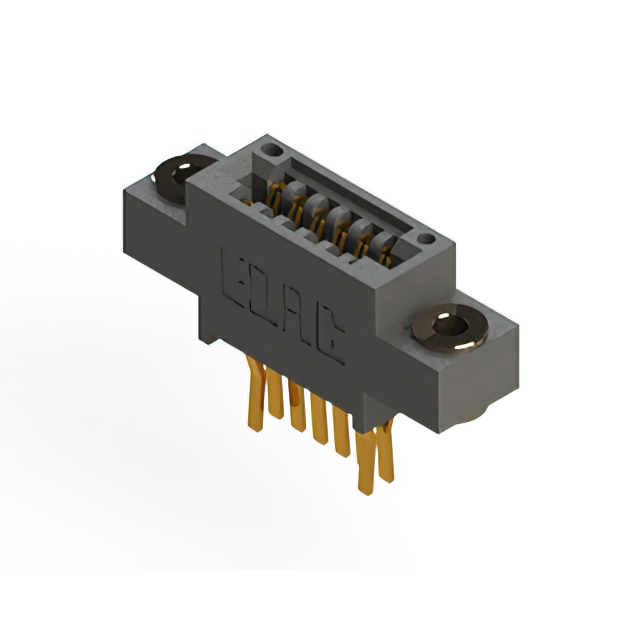

395-012 Series
Manufacturer: EDAC Inc.
Catalog
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
...
| Part | Gender | Number of Positions | Contact Material | Contact Type | Termination | Material - Insulation | Features | Mounting Type | Number of Positions/Bay/Row [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Color | Card Type | Number of Rows | Flange Feature | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Pitch [x] | Pitch [x] | Read Out | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Female | 12 | Copper Alloy | Cantilever | Solder | Polyester Thermoplastic | Card Guides | Through Hole | 6 | -40 °C | 105 ░C | Black | Non Specified - Dual Edge | 2 | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2.54 mm | 0.1 in | Dual | 2 | 10 Áin | 0.25 Ám | ||
EDAC Inc. | Female | 12 | Copper Alloy | Cantilever | Wire Wrap | Polyester Thermoplastic | Through Hole | 12 | -40 °C | 105 ░C | Black | Non Specified - Single Edge | 1 | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2.54 mm | 0.1 in | Single | 1 | 10 Áin | 0.25 Ám | |||
 EDAC Inc. | Female | 12 | Copper Alloy | Cantilever | Solder | Polyester Thermoplastic | Card Guides | Through Hole | 6 | -40 °C | 105 ░C | Black | Non Specified - Dual Edge | 2 | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2.54 mm | 0.1 in | Dual | 2 | 10 Áin | 0.25 Ám | ||
 EDAC Inc. | Female | 12 | Copper Alloy | Cantilever | Wire Wrap | Polyester Thermoplastic | Through Hole | 12 | -40 °C | 105 ░C | Black | Non Specified - Single Edge | 1 | Flush Mount M3 Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2.54 mm | 0.1 in | Single | 1 | 10 Áin | 0.25 Ám | |||
 EDAC Inc. | Female | 12 | Copper Alloy | Cantilever | Wire Wrap | Polyester Thermoplastic | Card Guides | Through Hole | 12 | -40 °C | 105 ░C | Black | Non Specified - Single Edge | 1 | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2.54 mm | 0.1 in | Single | 1 | 10 Áin | 0.25 Ám | ||
 EDAC Inc. | Female | 12 | Copper Alloy | Cantilever | Solder | Polyester Thermoplastic | Card Extender | Board Edge Straddle Mount | 6 | -40 °C | 105 ░C | Black | Non Specified - Dual Edge | 2 | Floating Bobbin Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2.54 mm | 0.1 in | Dual | 2 | 10 Áin | 0.25 Ám | 2.95 mm | 0.116 in |
 EDAC Inc. | Female | 12 | Copper Alloy | Cantilever | Wire Wrap | Polyester Thermoplastic | Card Guides | Through Hole | 12 | -40 °C | 105 ░C | Black | Non Specified - Single Edge | 1 | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2.54 mm | 0.1 in | Single | 1 | 10 Áin | 0.25 Ám | ||
 EDAC Inc. | Female | 12 | Copper Alloy | Cantilever | Solder | Polyester Thermoplastic | Card Guides | Through Hole | 12 | -40 °C | 105 ░C | Black | Non Specified - Single Edge | 1 | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2.54 mm | 0.1 in | Single | 1 | 10 Áin | 0.25 Ám | ||
 EDAC Inc. | Female | 12 | Copper Alloy | Cantilever | Wire Wrap | Polyester Thermoplastic | Card Guides | Through Hole | 12 | -40 °C | 105 ░C | Black | Non Specified - Single Edge | 1 | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2.54 mm | 0.1 in | Single | 1 | 10 Áin | 0.25 Ám | ||
 EDAC Inc. | Female | 12 | Copper Alloy | Cantilever | Solder | Polyester Thermoplastic | Through Hole | 6 | -40 °C | 105 ░C | Black | Non Specified - Dual Edge | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2.54 mm | 0.1 in | Dual | 2 | 10 Áin | 0.25 Ám |
