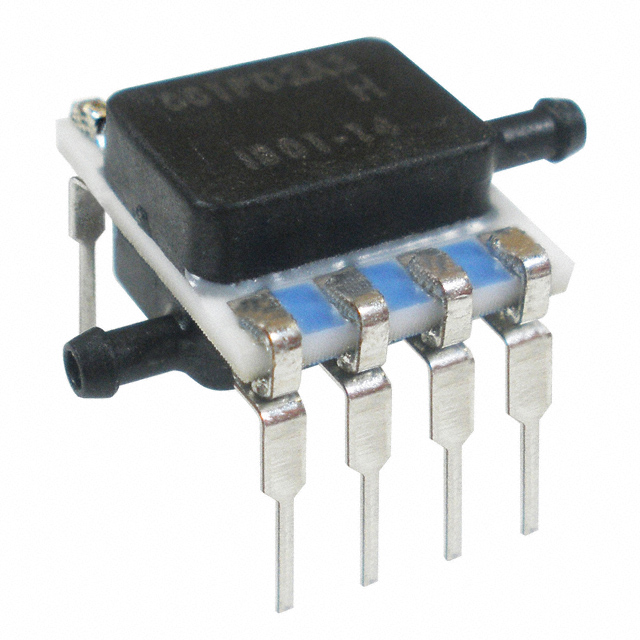

SSCDDRD Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SENSOR 15PSID 0.08" 4.5V 8DIP
| Part | Supplier Device Package | Maximum Pressure | Maximum Pressure | Operating Pressure | Operating Pressure | Voltage - Supply [Min] | Voltage - Supply [Max] | Pressure Type | Features | Port Style | Mounting Type | Termination Style | Applications | Accuracy | Output [Min] | Output [Max] | Output Type | Port Size | Port Size | Port Size | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 8-DIP | 60 PSI | 413.69 kPa | 103.42 kPa | 15 PSI | 4.75 V | 5.25 V | Differential | Amplified Output Temperature Compensated | Barbed | Through Hole | PC Pin | Board Mount | 0.25 % | 0.5 V | 4.5 V | Analog Voltage | 1.93 mm | Dual Male Tube | 0.08 " | 85 °C | -40 °C | 0.524 " 13.3 mm | 8-DIP Dual Ports Opposite Sides |
