YB16CK Series

Catalog

SWITCH PUSHBUTTON SPDT 3A 125V

Part	Mechanical Life	Electrical Life	Switch Function	Type	Circuit	Actuator Marking	Termination Style	Voltage Rating - AC	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Type, Color	Actuator Type	Illumination Voltage (Nominal)	Color - Actuator/Cap	Panel Cutout Dimensions [diameter]	Mounting Type	Features	Current Rating (Amps)

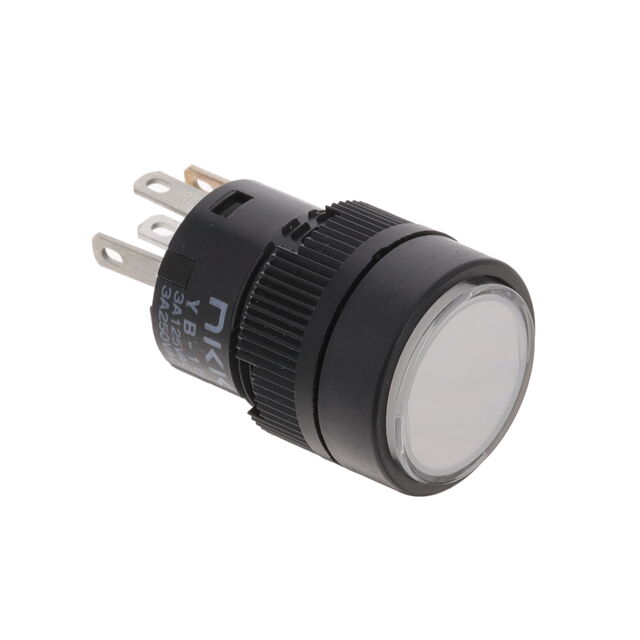

NKK Switches YB16CKW01-2CF05-JB	200000 Cycles	100000 Cycles	On-On	Illuminated Standard	SPDT	No Marking	Solder Quick Connect - 0.110" (2.8mm)	125 V	30 V	50 °C	-25 °C	Green/Red LED	Button Round	5 VDC	Clear	16 mm	Panel Mount Front	Tactile Feedback	3 A

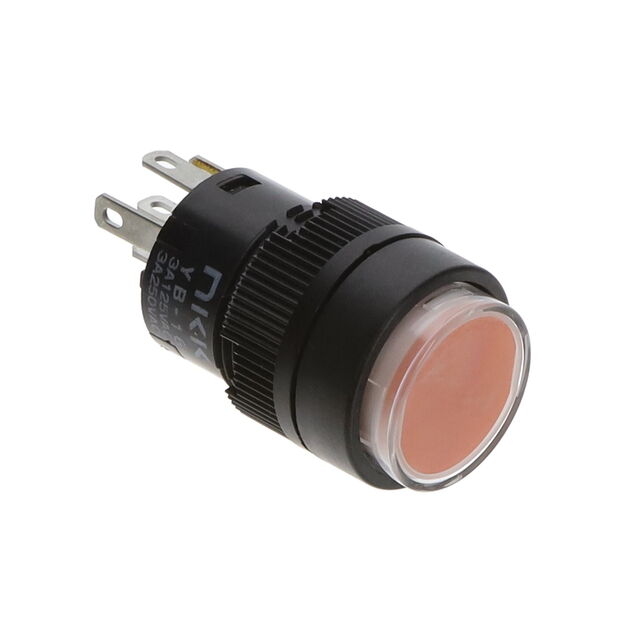

NKK Switches YB16CKW01-5C-JC	200000 Cycles	100000 Cycles	On-On	Illuminated Standard	SPDT	No Marking	Solder Quick Connect - 0.110" (2.8mm)	125 V	30 V	50 °C	-25 °C	LED Red	Button Round	1.9 VDC	Clear	16 mm	Panel Mount Front	Tactile Feedback	3 A
NKK Switches YB16CKW01-CB	200000 Cycles	100000 Cycles	On-On	Standard	SPDT	No Marking	Solder Quick Connect - 0.110" (2.8mm)	125 V	30 V	70 °C	-25 °C		Button Round		Red	16 mm	Panel Mount Front	Tactile Feedback	3 A
NKK Switches YB16CKW01-5F-JB	200000 Cycles	100000 Cycles	On-On	Illuminated Standard	SPDT	No Marking	Solder Quick Connect - 0.110" (2.8mm)	125 V	30 V	50 °C	-25 °C	Green LED	Button Round	2.2 VDC	Clear	16 mm	Panel Mount Front	Tactile Feedback	3 A
NKK Switches YB16CKG01-5F24-JB	200000 Cycles	100000 Cycles	On-On	Illuminated Standard	SPDT	No Marking	Solder Quick Connect - 0.110" (2.8mm)	28 V	28 V	50 °C	-25 °C	Green LED	Button Round	24 V	Clear	16 mm	Panel Mount Front	Tactile Feedback	0.4 VA
NKK Switches YB16CKG01-5F12-JB	200000 Cycles	100000 Cycles	On-On	Illuminated Standard	SPDT	No Marking	Solder Quick Connect - 0.110" (2.8mm)	28 V	28 V	50 °C	-25 °C	Green LED	Button Round	12 VDC	Clear	16 mm	Panel Mount Front	Tactile Feedback	0.4 VA
NKK Switches YB16CKG01-5F-JB	200000 Cycles	100000 Cycles	On-On	Illuminated Standard	SPDT		Solder Quick Connect - 0.110" (2.8mm)	28 V	28 V	50 °C	-25 °C	Green LED	Button Round	2 VDC	Clear	16 mm	Panel Mount Front		0.4 VA

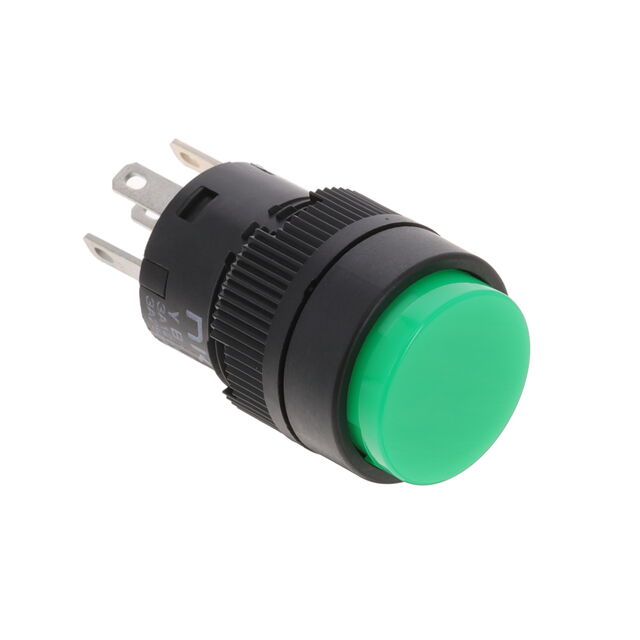

NKK Switches YB16CKW01-FB	200000 Cycles	100000 Cycles	On-On	Standard	SPDT	No Marking	Solder Quick Connect - 0.110" (2.8mm)	125 V	30 V	70 °C	-25 °C		Button Round		Green	16 mm	Panel Mount Front	Tactile Feedback	3 A

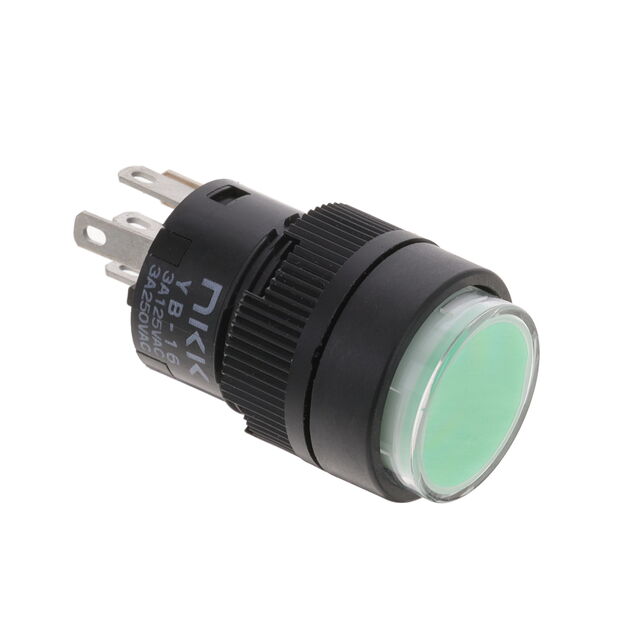

NKK Switches YB16CKW01-5F24-JF	200000 Cycles	100000 Cycles	On-On	Illuminated Standard	SPDT	No Marking	Solder Quick Connect - 0.110" (2.8mm)	125 V	30 V	50 °C	-25 °C	Green LED	Button Round	24 V	Clear	16 mm	Panel Mount Front	Tactile Feedback	3 A
NKK Switches YB16CKW01-1F05-JF	200000 Cycles	100000 Cycles	On-On	Illuminated Standard	SPDT	No Marking	Solder Quick Connect - 0.110" (2.8mm)	125 V	30 V	50 °C	-25 °C	Green LED	Button Round	5 VDC	Clear	16 mm	Panel Mount Front	Tactile Feedback	3 A
