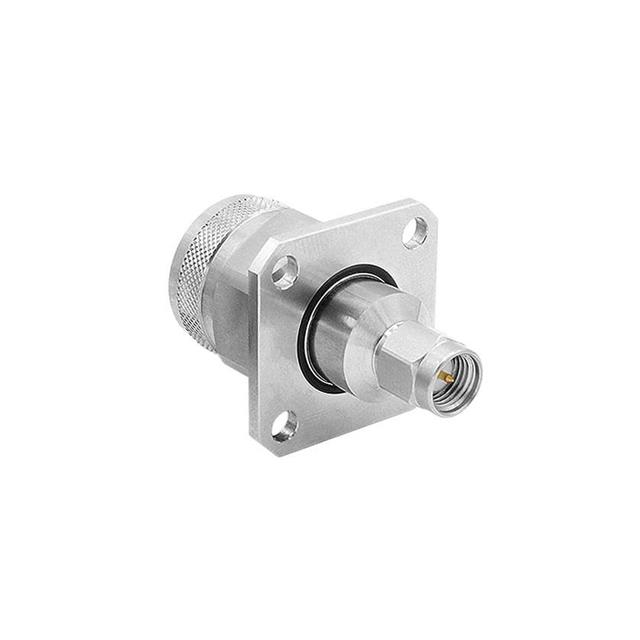

RFAA4SMA Series
Manufacturer: BULGIN LIMITED
Beta
⌘K
RF / COAXIAL ADAPTER, SMA, JACK, N, JACK, STRAIGHT PANEL ADAPTER, 50 OHM
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Center Contact Material | Body Material | Dielectric Material | Mounting Feature | Adapter Type | Mounting Type | Center Gender | Impedance | Frequency - Max [Max] | Convert From (Adapter End) | Style | Convert To (Adapter End) | Conversion Type | Adapter Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | -65 ░C | 165 °C | 500 | Beryllium Copper | Stainless Steel | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Flange | Jack to Jack | Panel Mount | Female to Female | 50 Ohms | 26.5 GHz | Female Socket SMA Jack | Straight | N Jack Female Socket | Between Series | |
 BULGIN LIMITED | -65 ░C | 165 °C | 500 | Beryllium Copper | Stainless Steel | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Flange | Plug to Plug | Panel Mount | Male to Male | 50 Ohms | 26.5 GHz | Male Pin SMA Plug | Straight | SMA Plug Male Pin | Same Series | SMA to SMA |
 BULGIN LIMITED | -65 ░C | 165 °C | 500 | Beryllium Copper | Stainless Steel | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Flange | Plug to Plug | Panel Mount | Male to Male | 50 Ohms | 26.5 GHz | Male Pin SMA Plug | Straight | N Plug Male Pin | Between Series | |
 BULGIN LIMITED | -65 ░C | 165 °C | 500 | Beryllium Copper | Stainless Steel | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Flange | Plug to Jack | Panel Mount | 50 Ohms | 26.5 GHz | Male Pin SMA Plug | Straight | N Jack Female Socket | Between Series | ||
BULGIN LIMITED | -65 ░C | 165 °C | 500 | Beryllium Copper | Stainless Steel | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Flange | Plug to Jack | Panel Mount | 50 Ohms | 26.5 GHz | Male Pin SMA Plug | Straight | N Jack Female Socket | Between Series | ||
 BULGIN LIMITED | -65 ░C | 165 °C | 500 | Beryllium Copper | Stainless Steel | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Flange | Plug to Jack | Panel Mount | 50 Ohms | 26.5 GHz | Male Pin SMA Plug | Straight | SMA Jack Female Socket | Same Series | SMA to SMA | |
BULGIN LIMITED | -65 ░C | 165 °C | 500 | Beryllium Copper | Stainless Steel | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Flange | Jack to Jack | Panel Mount | Female to Female | 50 Ohms | 26.5 GHz | Female Socket SMA Jack | Straight | N Jack Female Socket | Between Series | |
 BULGIN LIMITED | -65 ░C | 165 °C | 500 | Beryllium Copper | Stainless Steel | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Flange | Jack to Jack | Panel Mount | Female to Female | 50 Ohms | 26.5 GHz | Female Socket SMA Jack | Straight | SMA Jack Female Socket | Same Series | SMA to SMA |
