ELL-5PS Series

Catalog

FIXED IND 33UH 490MA 470MOHM SMD

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Type	Current - Saturation (Isat)	Package / Case	Tolerance	Mounting Type	Inductance	Inductance Frequency - Test	Current Rating (Amps)	Shielding	DC Resistance (DCR)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]

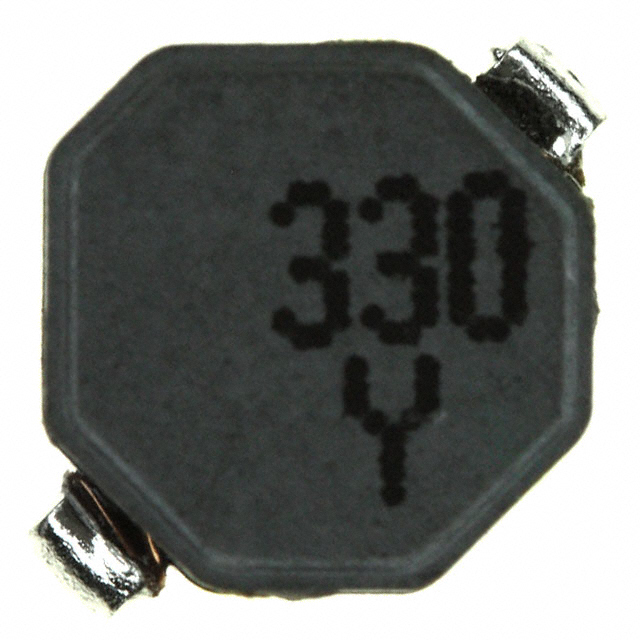

Panasonic Industrial Automation Sales ELL-5PS330M	2 mm	0.079 in	Wirewound	490 mA	Nonstandard	20 %	Surface Mount	33 µH	100 kHz	490 mA	Shielded	470 mOhm	0.197 in	5 mm	0.197 "	5 mm

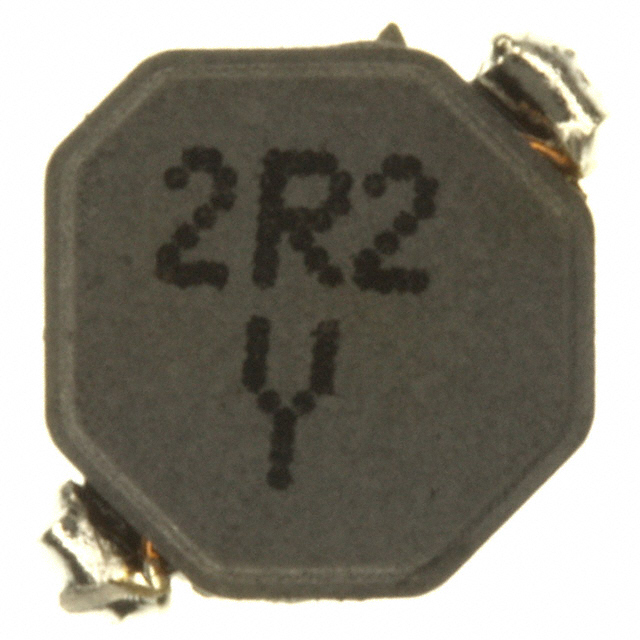

Panasonic Industrial Automation Sales ELL-5PS2R2N	2 mm	0.079 in	Wirewound	2.1 A	Nonstandard	30 %	Surface Mount	2.2 µH	100 kHz	2.1 A	Shielded	34 mOhm	0.197 in	5 mm	0.197 "	5 mm

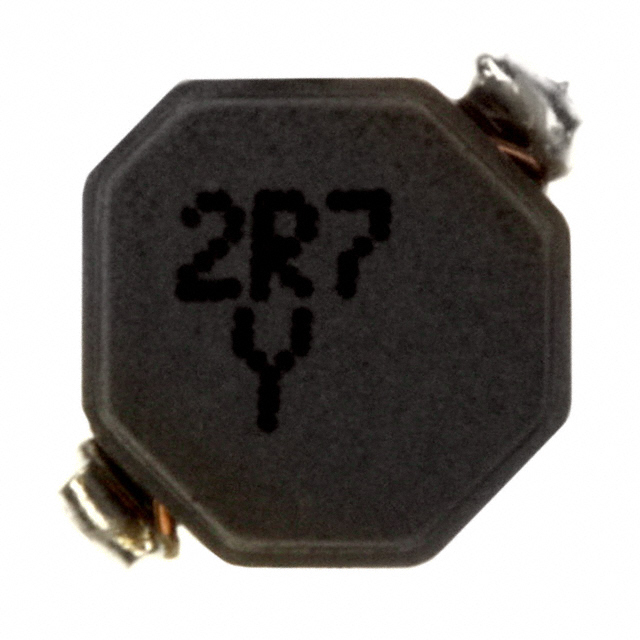

Panasonic Industrial Automation Sales ELL-5PS2R7N	2 mm	0.079 in	Wirewound	2 A	Nonstandard	30 %	Surface Mount	2.7 µH	100 kHz	2.05 A	Shielded		0.197 in	5 mm	0.197 "	5 mm
