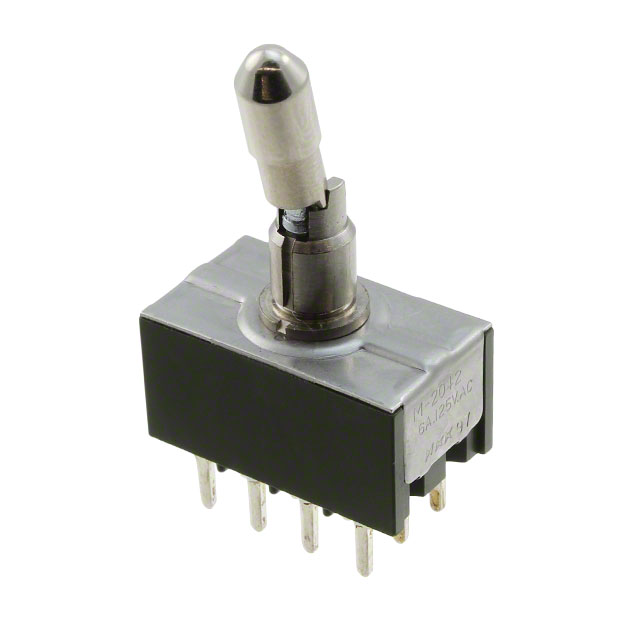

M2042LL Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE 4PDT 6A 125V
| Part | Electrical Life | Actuator Material | Circuit | Illumination | Features | Switch Function | Actuator Length [x] | Actuator Type | Voltage Rating - AC | Voltage Rating - DC | Bushing Thread | Termination Style | Mounting Type | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Panel Cutout Dimensions [diameter] | Bushing Thread |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | Brass Chrome Plated | 4PDT | Non-Illuminated | Epoxy Sealed Terminals | On-On | 16.5 mm | Locking Lever | 125 V | 30 V | Unthreaded | PC Pin | Through Hole | 4 A 6 A | 85 °C | -30 ░C | ||
 NKK Switches | 25000 Steps | Brass Chrome Plated | 4PDT | Non-Illuminated | Epoxy Sealed Terminals | On-On | 16.5 mm | Locking Lever | 125 V | 30 V | M6 | Solder Lug | Panel Mount | 4 A 6 A | 85 °C | -30 ░C | 6.5 mm | 0.75 |
 NKK Switches | 50000 Cycles | Brass Chrome Plated | 4PDT | Non-Illuminated | Epoxy Sealed Terminals | On-On | 16.5 mm | Locking Lever | 28 V | 28 V | 1/4-40 | Solder Lug | Panel Mount | 0.4 VA | 85 °C | -30 ░C | 6.5 mm | |
 NKK Switches | 25000 Steps | Brass Chrome Plated | 4PDT | Non-Illuminated | Epoxy Sealed Terminals | On-On | 16.5 mm | Locking Lever | 125 V | 30 V | Unthreaded | PC Pin | Right Angle Through Hole Vertical | 4 A 6 A | 85 °C | -30 ░C |
