395-112 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FML 112POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Card Thickness [Max]	Card Thickness [Min]	Number of Rows [custom]	Mounting Type	Color	Gender	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Contact Material	Termination	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Flange Feature [diameter]	Flange Feature [diameter]	Contact Finish	Card Type	Number of Positions/Bay/Row	Read Out	Flange Feature	Features
EDAC Inc. 395-112-523-804	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Through Hole	Black	Female	Cantilever	-40 C	105 ░C	0.1 "	2.54 mm	Copper Alloy	Solder	0.25 Ám	10 Áin	112	0.156 "	3.96 mm	Gold	Non Specified - Dual Edge	56	Dual
EDAC Inc. 395-112-559-203	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Right Angle Through Hole	Black	Female	Cantilever	-40 C	105 ░C	0.1 "	2.54 mm	Copper Alloy	Solder	0.25 Ám	10 Áin	112	0.116 "	2.95 mm	Gold	Non Specified - Dual Edge	56	Dual	Floating Bobbin Flush Mount

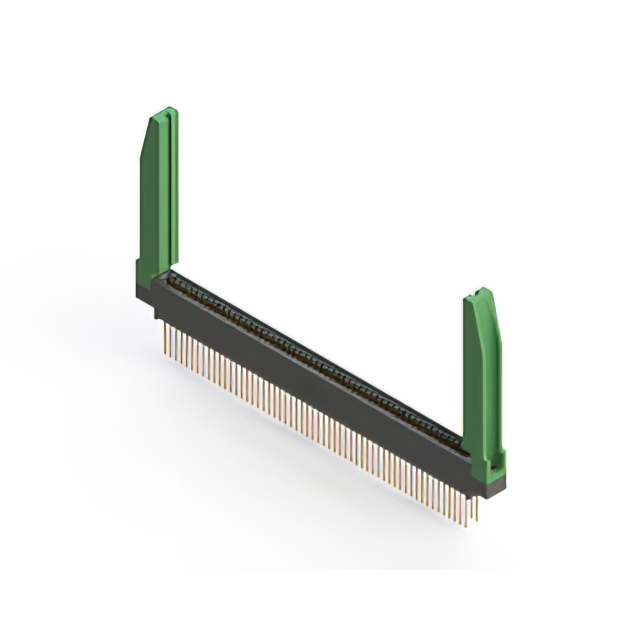

EDAC Inc. 395-112-540-878	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Through Hole	Black	Female	Cantilever	-40 C	105 ░C	0.1 "	2.54 mm	Copper Alloy	Wire Wrap	0.25 Ám	10 Áin	112			Gold	Non Specified - Dual Edge	56	Dual	4-40 Threaded Insert Top Mount Opening	Card Guides

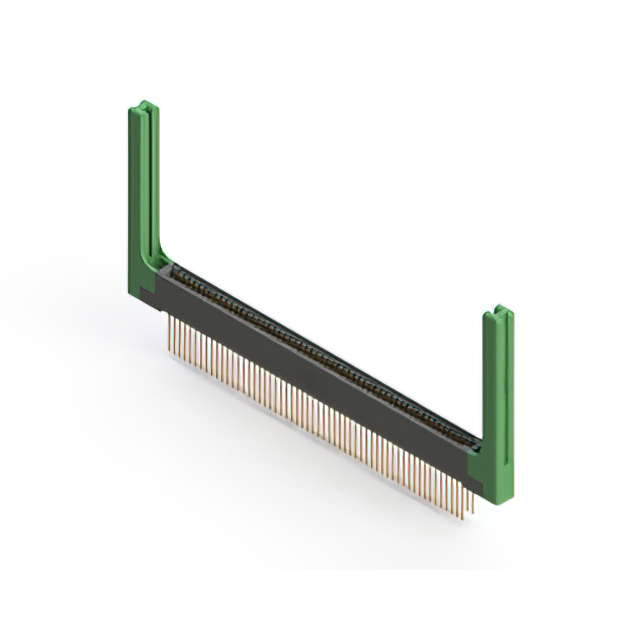

EDAC Inc. 395-112-542-258	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Through Hole	Black	Female	Cantilever	-40 C	105 ░C	0.1 "	2.54 mm	Copper Alloy	Wire Wrap	0.25 Ám	10 Áin	112			Gold	Non Specified - Dual Edge	56	Dual	4-40 Flush Mount Threaded Insert Top Opening	Card Guides

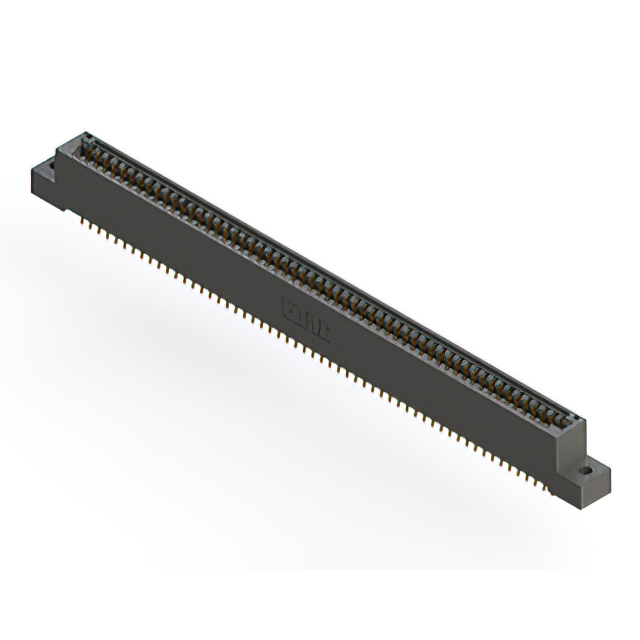

EDAC Inc. 395-112-556-202	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Board Edge Straddle Mount	Black	Female	Cantilever	-40 C	105 ░C	0.1 "	2.54 mm	Copper Alloy	Solder	0.25 Ám	10 Áin	112	0.128 "	3.25 mm	Gold	Non Specified - Dual Edge	56	Dual	Flush Mount Top Opening Unthreaded	Card Extender

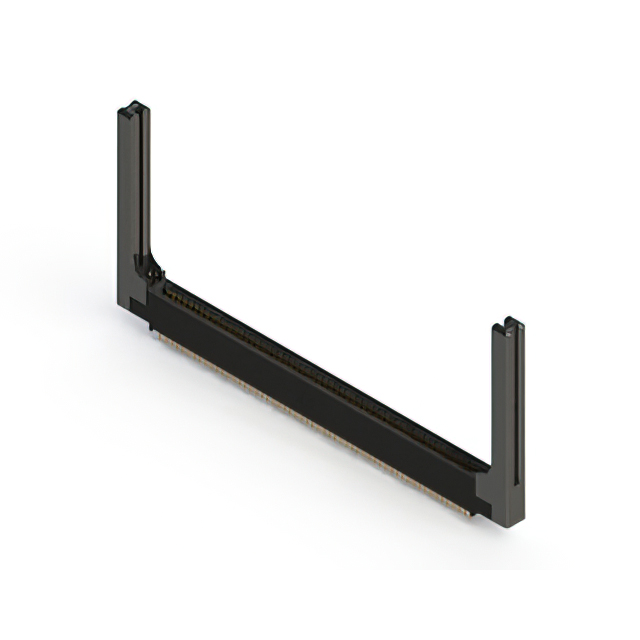

EDAC Inc. 395-112-525-558	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Through Hole	Black	Female	Cantilever	-40 C	105 ░C	0.1 "	2.54 mm	Copper Alloy	Solder	0.25 Ám	10 Áin	112			Gold	Non Specified - Dual Edge	56	Dual	4-40 Threaded Insert Top Mount Opening	Card Guides
EDAC Inc. 395-112-540-203	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Through Hole	Black	Female	Cantilever	-40 C	105 ░C	0.1 "	2.54 mm	Copper Alloy	Wire Wrap	0.25 Ám	10 Áin	112	0.116 "	2.95 mm	Gold	Non Specified - Dual Edge	56	Dual	Floating Bobbin Flush Mount
EDAC Inc. 395-112-559-208	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Right Angle Through Hole	Black	Female	Cantilever	-40 C	105 ░C	0.1 "	2.54 mm	Copper Alloy	Solder	0.25 Ám	10 Áin	112			Gold	Non Specified - Dual Edge	56	Dual	4-40 Flush Mount Threaded Insert Top Opening

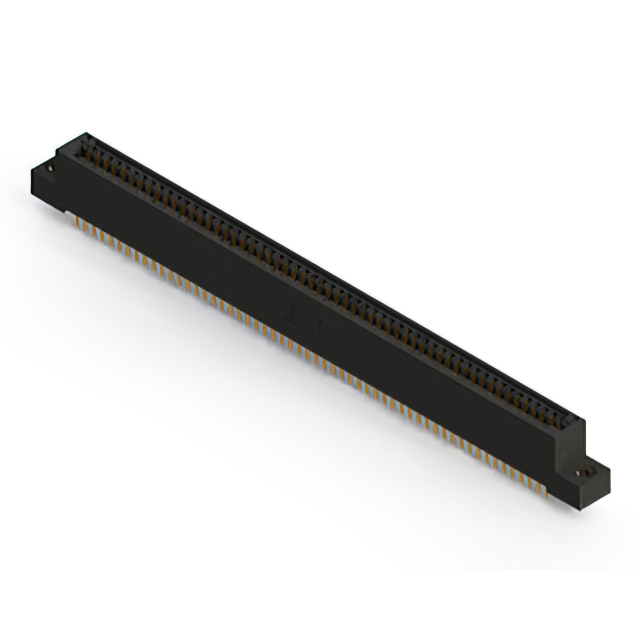

EDAC Inc. 395-112-525-208	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Through Hole	Black	Female	Cantilever	-40 C	105 ░C	0.1 "	2.54 mm	Copper Alloy	Solder	0.25 Ám	10 Áin	112			Gold	Non Specified - Dual Edge	56	Dual	4-40 Flush Mount Threaded Insert Top Opening

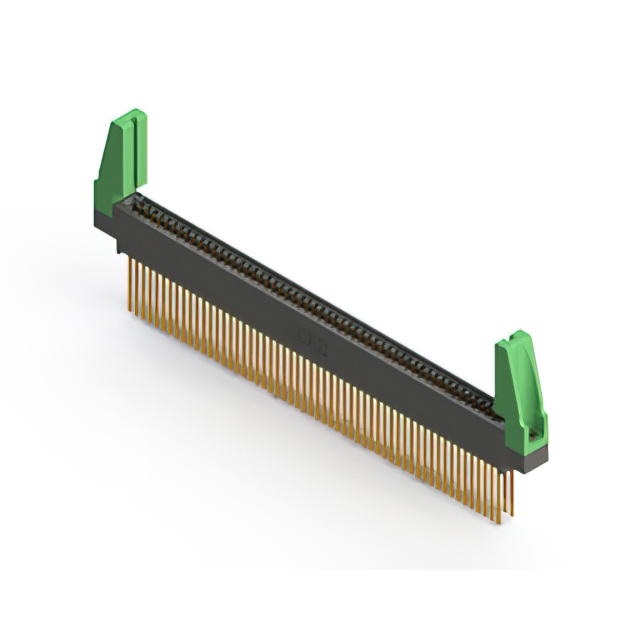

EDAC Inc. 395-112-544-888	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Through Hole	Black	Female	Cantilever	-40 C	105 ░C	0.1 "	2.54 mm	Copper Alloy	Wire Wrap	0.25 Ám	10 Áin	112			Gold	Non Specified - Dual Edge	56	Dual	4-40 Threaded Insert Top Mount Opening	Card Guides
