1277 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

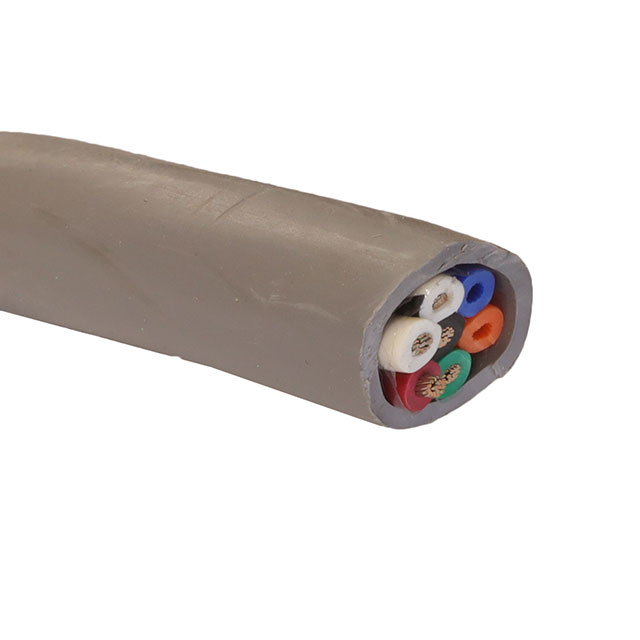

CABLE 7COND 14AWG SLATE
| Part | Length | Length | Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Conductor Insulation | Cable Type | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Jacket Color | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 152.4 m | 500 ft | 600 V | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | 16.13 mm | 0.635 in | 19 | 0.0147 in | 7 | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Communication Control | 1.6 mm | 0.063 in | 14.5 AWG | Slate | Copper Tinned |
ALPHA WIRE | 304.8 m | 1000 ft | 600 V | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | 16.13 mm | 0.635 in | 19 | 0.0147 in | 7 | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Communication Control | 1.6 mm | 0.063 in | 14.5 AWG | Slate | Copper Tinned |
