93217 Series

Catalog

CONN HEADER VERT 40POS 2.54MM

Part	Insulation Color	Contact Length - Mating [x]	Contact Length - Mating [x]	Number of Rows	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions Loaded	Contact Finish - Post	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Contact Material	Insulation Height	Insulation Height	Number of Positions	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Termination	Contact Shape	Overall Contact Length	Overall Contact Length	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Shrouding	Contact Type	Contact Finish - Mating

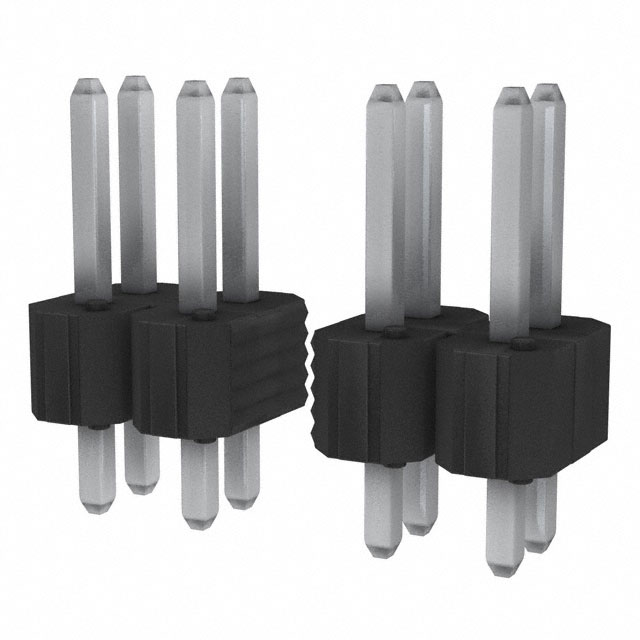

Amphenol ICC (FCI) 93217-440HLF	Black	5.08 mm	0.2 in	2	2.41 mm	0.095 in	All	Tin	Push-Pull	2.54 çm	100 çin	Through Hole	Phosphor Bronze	0.1 in	2.54 mm	40	0.1 in	2.54 mm	UL94 V-0	Solder	Square	10.03 mm	0.395 in	2.54 mm	0.1 in	Header	Unshrouded	Male Pin

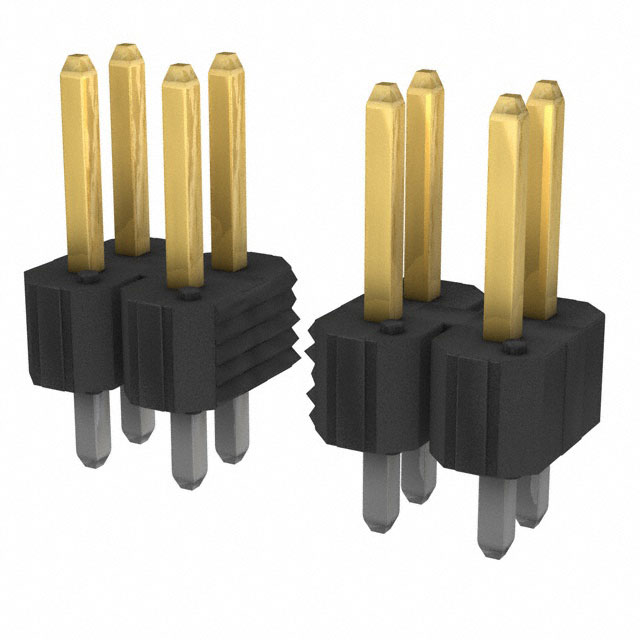

Amphenol ICC (FCI) 93217-272H	Black	5.08 mm	0.2 in	2	2.41 mm	0.095 in	All		Push-Pull	0.38 µm	15 µin	Through Hole	Phosphor Bronze	0.1 in	2.54 mm	72	0.1 in	2.54 mm	UL94 V-0	Solder	Square	10.03 mm	0.395 in	2.54 mm	0.1 in	Header	Unshrouded	Male Pin	Gold or Gold GXT™
Amphenol ICC (FCI) 93217-212HLF	Black	5.08 mm	0.2 in	2	2.41 mm	0.095 in	All		Push-Pull	0.38 µm	15 µin	Through Hole	Phosphor Bronze	0.1 in	2.54 mm	12	0.1 in	2.54 mm	UL94 V-0	Solder	Square	10.03 mm	0.395 in	2.54 mm	0.1 in	Header	Unshrouded	Male Pin	Gold or Gold GXT™
Amphenol ICC (FCI) 93217-128HLF	Black	5.08 mm	0.2 in	2	2.41 mm	0.095 in	All		Push-Pull	0.76 Ám	30 Áin	Through Hole	Phosphor Bronze	0.1 in	2.54 mm	28	0.1 in	2.54 mm	UL94 V-0	Solder	Square	10.03 mm	0.395 in	2.54 mm	0.1 in	Header	Unshrouded	Male Pin	Gold or Gold GXT™
Amphenol ICC (FCI) 93217-130HLF	Black	5.08 mm	0.2 in	2	2.41 mm	0.095 in	All		Push-Pull	0.76 Ám	30 Áin	Through Hole	Phosphor Bronze	0.1 in	2.54 mm	30	0.1 in	2.54 mm	UL94 V-0	Solder	Square	10.03 mm	0.395 in	2.54 mm	0.1 in	Header	Unshrouded	Male Pin	Gold or Gold GXT™
Amphenol ICC (FCI) 93217-140HLF	Black	5.08 mm	0.2 in	2	2.41 mm	0.095 in	All		Push-Pull	0.76 Ám	30 Áin	Through Hole	Phosphor Bronze	0.1 in	2.54 mm	40	0.1 in	2.54 mm	UL94 V-0	Solder	Square	10.03 mm	0.395 in	2.54 mm	0.1 in	Header	Unshrouded	Male Pin	Gold or Gold GXT™
Amphenol ICC (FCI) 93217-430HLF	Black	5.08 mm	0.2 in	2	2.41 mm	0.095 in	All	Tin	Push-Pull	2.54 çm	100 çin	Through Hole	Phosphor Bronze	0.1 in	2.54 mm	30	0.1 in	2.54 mm	UL94 V-0	Solder	Square	10.03 mm	0.395 in	2.54 mm	0.1 in	Header	Unshrouded	Male Pin
