MB2411E Series

Catalog

SWITCH PUSHBUTTON SPDT 3A 125V

Part	Electrical Life	Mechanical Life	Features	Current Rating (Amps)	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage Rating - AC	Circuit	Actuator Type	Type	Actuator Marking	Termination Style	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Color - Actuator/Cap

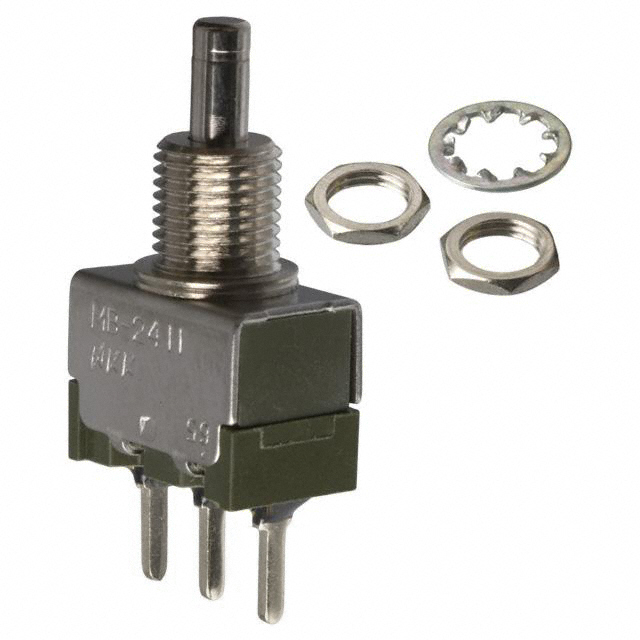

NKK Switches MB2411E1W03	25000 Steps	200000 Cycles	Epoxy Sealed Terminals	3 A	On-Mom	85 °C	-30 ░C	Panel Mount Rear	125 V	SPDT	Plunger for Cap	Standard	No Marking	PC Pin	6.5 mm

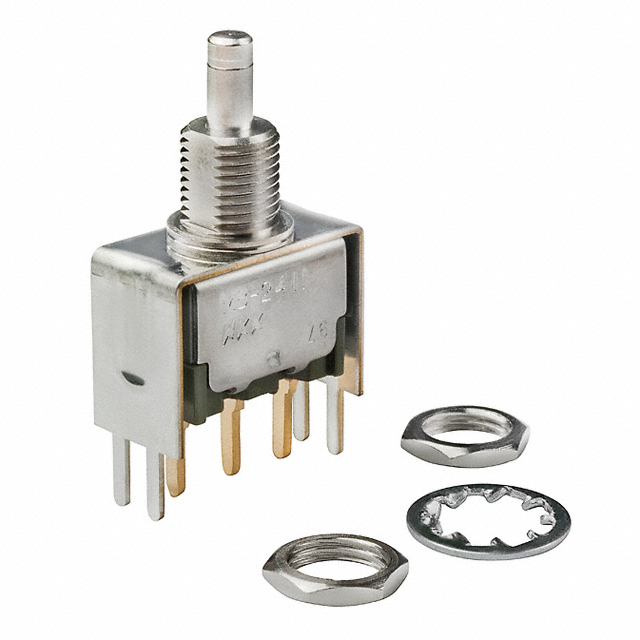

NKK Switches MB2411E1G13	100000 Cycles	200000 Cycles	Epoxy Sealed Terminals	0.4 VA	On-Mom	85 °C	-30 ░C	Panel Mount Rear	28 V	SPDT	Plunger for Cap	Standard	No Marking	PC Pin	6.5 mm	28 V

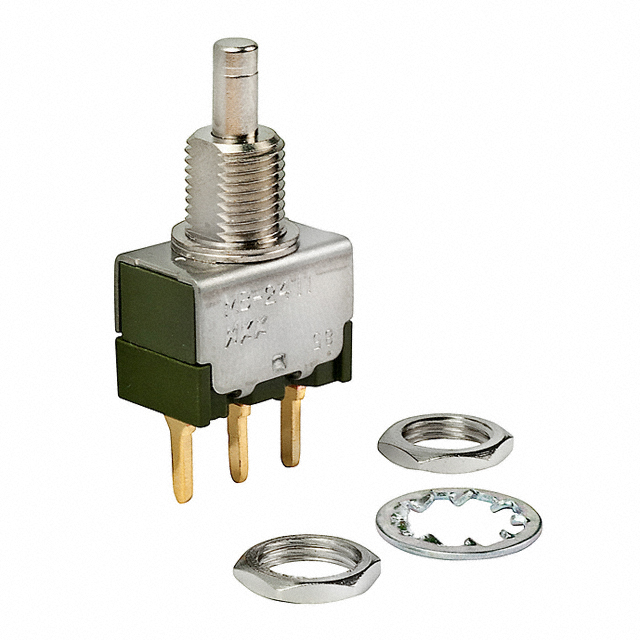

NKK Switches MB2411E1A03	25000 Steps	200000 Cycles	Epoxy Sealed Terminals	3 A	On-Mom	85 °C	-30 ░C	Panel Mount Rear	125 V	SPDT	Plunger for Cap	Standard	No Marking	PC Pin	6.5 mm
NKK Switches MB2411E1W01-HB	25000 Steps	200000 Cycles	Epoxy Sealed Terminals	3 A	On-Mom	85 °C	-30 ░C	Panel Mount Rear	125 V	SPDT	Button Round	Standard	No Marking	Solder Lug	6.5 mm		White
NKK Switches MB2411E1W13-HA	25000 Steps	200000 Cycles	Epoxy Sealed Terminals	3 A	On-Mom	85 °C	-30 ░C	Panel Mount Rear	125 V	SPDT	Button Round	Standard	No Marking	PC Pin	6.5 mm		Black
NKK Switches MB2411E1G03-FA	100000 Cycles	200000 Cycles	Epoxy Sealed Terminals	0.4 VA	On-Mom	85 °C	-30 ░C	Panel Mount Rear	28 V	SPDT	Button Round	Standard	No Marking	PC Pin	6.5 mm	28 V	Black
NKK Switches MB2411E1A01-HA	25000 Steps	200000 Cycles	Epoxy Sealed Terminals	3 A	On-Mom	85 °C	-30 ░C	Panel Mount Rear	125 V	SPDT	Button Round	Standard	No Marking	Solder Lug	6.5 mm		Black
NKK Switches MB2411E1G03	100000 Cycles	200000 Cycles	Epoxy Sealed Terminals	0.4 VA	On-Mom	85 °C	-30 ░C	Panel Mount Rear	28 V	SPDT	Plunger for Cap	Standard	No Marking	PC Pin	6.5 mm	28 V
NKK Switches MB2411E2G03-FA	100000 Cycles	200000 Cycles	Epoxy Sealed Terminals	0.4 VA	On-Mom	85 °C	-30 ░C	Through Hole	28 V	SPDT	Button Round	Standard	No Marking	PC Pin		28 V	Black

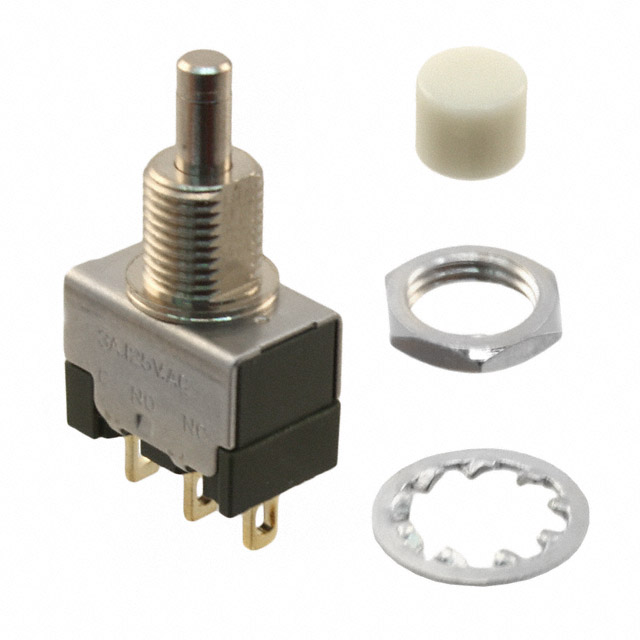

NKK Switches MB2411E1A01-FB	25000 Steps	200000 Cycles	Epoxy Sealed Terminals	3 A	On-Mom	85 °C	-30 ░C	Panel Mount Rear	125 V	SPDT	Button Round	Standard	No Marking	Solder Lug	6.5 mm		White
