305-054 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 54 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Part	Material - Insulation	Termination Rows [custom]	Read Out	Color	Number of Rows [custom]	Contact Material	Termination	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Number of Positions/Bay/Row	Contact Type	Gender	Features
EDAC Inc. 305-054-521-502	Polyester Thermoplastic	2	Dual	Green	2	Copper Alloy	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Panel Mount Through Hole	-40 C	105 ░C	Non Specified - Dual Edge	54	0.25 Ám	10 Áin	3.96 mm	0.156 in	27	Semi Bellows	Female

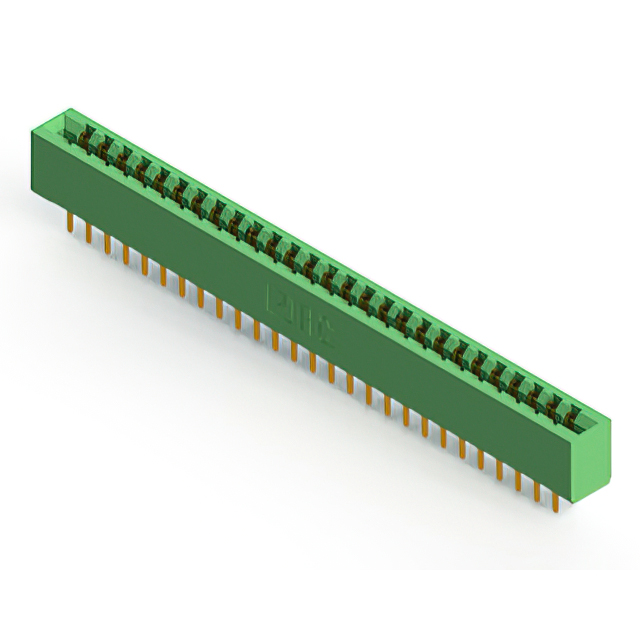

EDAC Inc. 305-054-520-201	Polyester Thermoplastic	2	Dual	Green	2	Copper Alloy	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold				Through Hole	-40 C	105 ░C	Non Specified - Dual Edge	54	0.25 Ám	10 Áin	3.96 mm	0.156 in	27	Semi Bellows	Female
EDAC Inc. 305-054-555-268	Polyester Thermoplastic	2	Dual	Green	2	Copper Alloy	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	4-40 Flush Mount Threaded Insert Top Opening			Board Edge Straddle Mount	-40 C	105 ░C	Non Specified - Dual Edge	54	0.25 Ám	10 Áin	3.96 mm	0.156 in	27	Semi Bellows	Female	Card Extender Card Guides
EDAC Inc. 305-054-521-558	Polyester Thermoplastic	2	Dual	Green	2	Copper Alloy	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	4-40 Flush Mount Threaded Insert Top Opening			Panel Mount Through Hole	-40 C	105 ░C	Non Specified - Dual Edge	54	0.25 Ám	10 Áin	3.96 mm	0.156 in	27	Semi Bellows	Female
EDAC Inc. 305-054-521-207	Polyester Thermoplastic	2	Dual	Green	2	Copper Alloy	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Flush Mount M3 Threaded Insert Top Opening			Panel Mount Through Hole	-40 C	105 ░C	Non Specified - Dual Edge	54	0.25 Ám	10 Áin	3.96 mm	0.156 in	27	Semi Bellows	Female

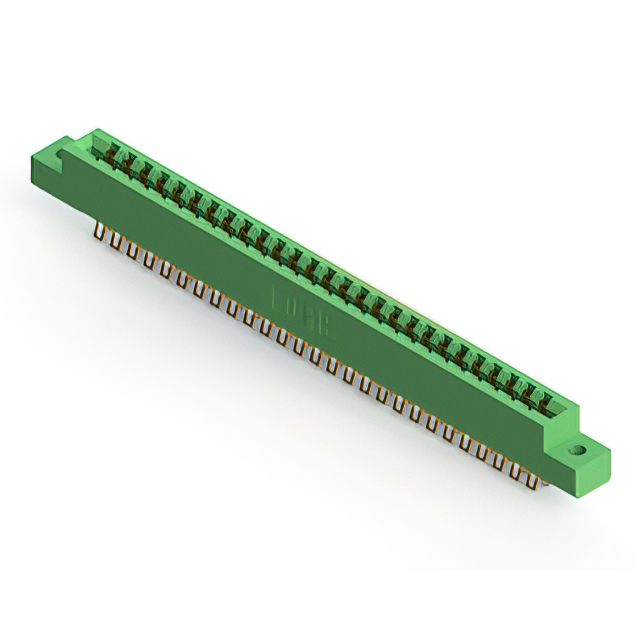

EDAC Inc. 305-054-555-502	Polyester Thermoplastic	2	Dual	Green	2	Copper Alloy	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Board Edge Straddle Mount	-40 C	105 ░C	Non Specified - Dual Edge	54	0.25 Ám	10 Áin	3.96 mm	0.156 in	27	Semi Bellows	Female	Card Extender

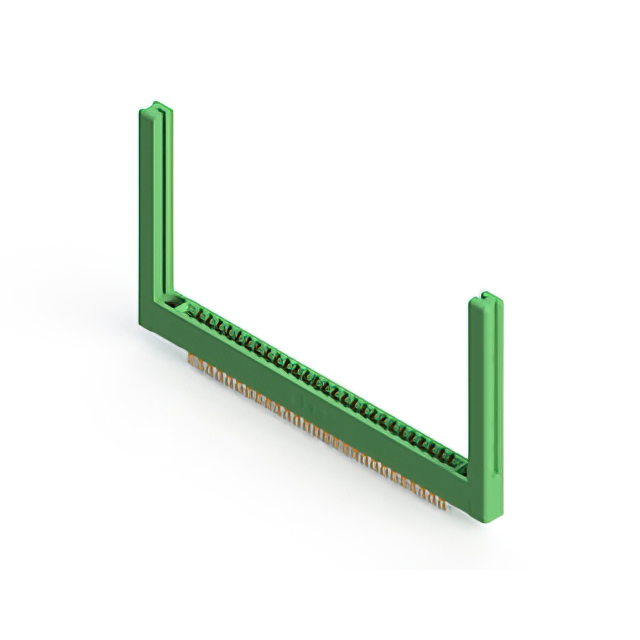

EDAC Inc. 305-054-500-558	Polyester Thermoplastic	2	Dual	Green	2	Copper Alloy	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	4-40 Flush Mount Threaded Insert Top Opening			Panel Mount	-40 C	105 ░C	Non Specified - Dual Edge	54	0.25 Ám	10 Áin	3.96 mm	0.156 in	27	Semi Bellows	Female

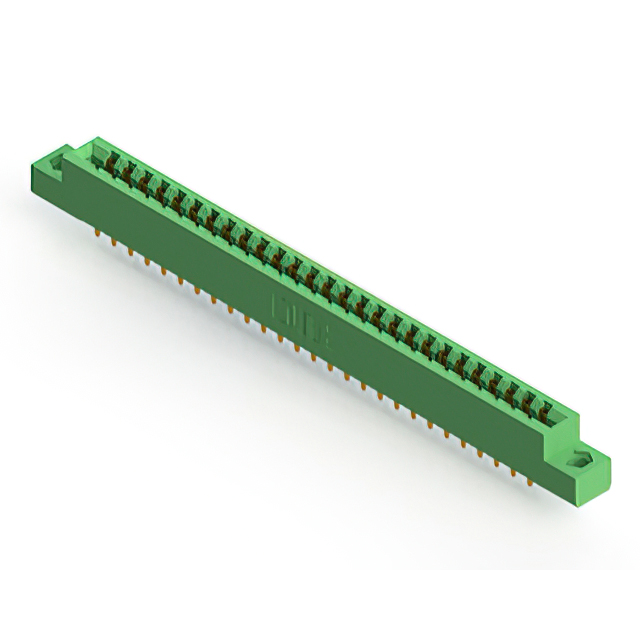

EDAC Inc. 305-054-521-504	Polyester Thermoplastic	2	Dual	Green	2	Copper Alloy	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 "	Panel Mount Through Hole	-40 C	105 ░C	Non Specified - Dual Edge	54	0.25 Ám	10 Áin	3.96 mm	0.156 in	27	Semi Bellows	Female

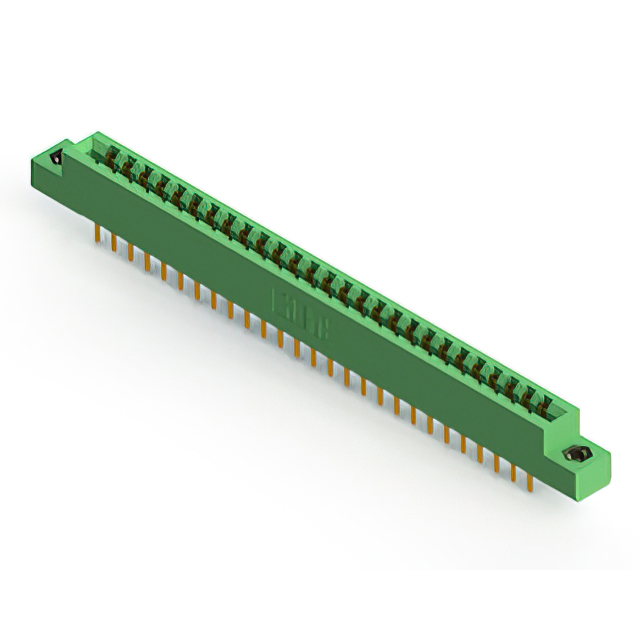

EDAC Inc. 305-054-520-208	Polyester Thermoplastic	2	Dual	Green	2	Copper Alloy	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	4-40 Flush Mount Threaded Insert Top Opening			Panel Mount Through Hole	-40 C	105 ░C	Non Specified - Dual Edge	54	0.25 Ám	10 Áin	3.96 mm	0.156 in	27	Semi Bellows	Female
EDAC Inc. 305-054-521-208	Polyester Thermoplastic	2	Dual	Green	2	Copper Alloy	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	4-40 Flush Mount Threaded Insert Top Opening			Panel Mount Through Hole	-40 C	105 ░C	Non Specified - Dual Edge	54	0.25 Ám	10 Áin	3.96 mm	0.156 in	27	Semi Bellows	Female
