RC Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

COMMON MODE CHOKES / FILTERS RC112 COMMON MODE CHOKE 250VAC, 0.35A, 22MH, HORIZONTAL

Part	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Filter Type	Current Rating (Max) [Max]	DC Resistance (DCR) (Max)	Voltage Rating - AC	Inductance @ Frequency	Approval Agency	Number of Lines	Height (Max) [z]	Height (Max) [z]	Package / Case	Size / Dimension [y]	DC Resistance (DCR) (Max) [Max]
TE Connectivity AMP Connectors RC112-0.35-22M	125 °C	-40 C	0.689 in	17.5 mm	17.5 mm	0.689 in	Through Hole	Power Line	350 mA	1.9 Ohm	250 V	22 mH	VDE	2	8 mm	0.315 in	4 PC Pin Horizontal

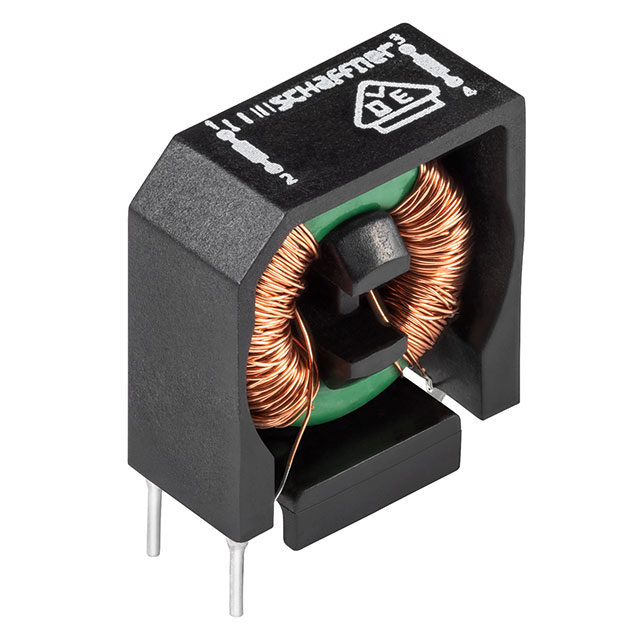

TE Connectivity AMP Connectors RC212-0.7-4M7	125 °C	-40 C	0.602 "		15.3 mm	0.291 "	Through Hole	Power Line	700 mA		250 V	4.7 mH	VDE	2			Vertical 4 PC Pin	7.4 mm
TE Connectivity AMP Connectors RC112-0.4-15M	125 °C	-40 C	0.689 in	17.5 mm	17.5 mm	0.689 in	Through Hole	Power Line	400 mA		250 V	10 kHz 15 mH	VDE	2	8 mm	0.315 in	4 PC Pin Horizontal		1.35 Ohm
TE Connectivity AMP Connectors RC212-0.25-47M	125 °C	-40 C	0.602 "		15.3 mm	0.291 "	Through Hole	Power Line	250 mA		250 V	47 mH	VDE	2			Vertical 4 PC Pin	7.4 mm	2.4 Ohm
TE Connectivity AMP Connectors RC212-0.35-22M	125 °C	-40 C	0.602 "		15.3 mm	0.291 "	Through Hole	Power Line	350 mA	1.9 Ohm	250 V	22 mH	VDE	2			Vertical 4 PC Pin	7.4 mm
TE Connectivity AMP Connectors RC212-0.3-30M	125 °C	-40 C	0.602 "		15.3 mm	0.291 "	Through Hole	Power Line	300 mA	2.2 Ohm	250 V	30 mH	VDE	2			Vertical 4 PC Pin	7.4 mm

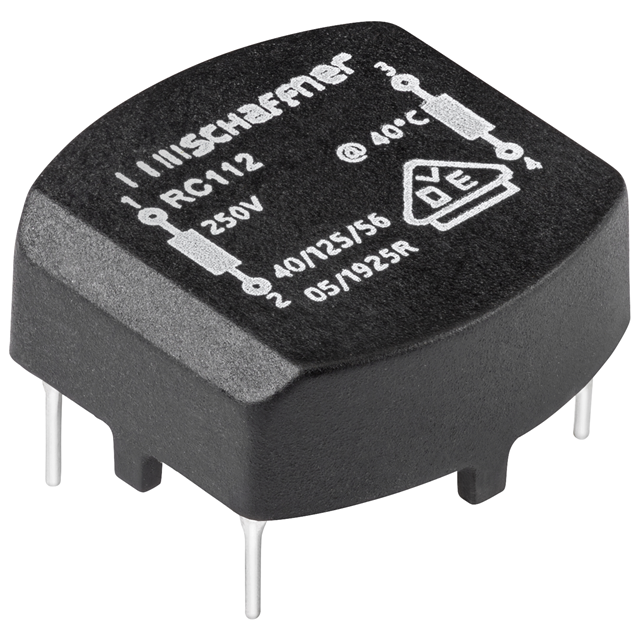

TE Connectivity AMP Connectors RC112-0.6-6M8	125 °C	-40 C	0.689 in	17.5 mm	17.5 mm	0.689 in	Through Hole	Power Line	600 mA		250 V	6.8 mH 10 kHz	VDE	2	8 mm	0.315 in	4 PC Pin Horizontal		630 mOhm
TE Connectivity AMP Connectors RC212-0.5-10M	125 °C	-40 C	0.602 "		15.3 mm	0.291 "	Through Hole	Power Line	500 mA	1 Ohm	250 V	10 mH 10 kHz	VDE	2			Vertical 4 PC Pin	7.4 mm
TE Connectivity AMP Connectors RC212-0.25-47M	125 °C	-40 C	0.602 "		15.3 mm	0.291 "	Through Hole	Power Line	250 mA		250 V	47 mH	VDE	2			Vertical 4 PC Pin	7.4 mm	2.4 Ohm
TE Connectivity AMP Connectors RC112-0.35-22M	125 °C	-40 C	0.689 in	17.5 mm	17.5 mm	0.689 in	Through Hole	Power Line	350 mA	1.9 Ohm	250 V	22 mH	VDE	2	8 mm	0.315 in	4 PC Pin Horizontal
