GST90A19 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K

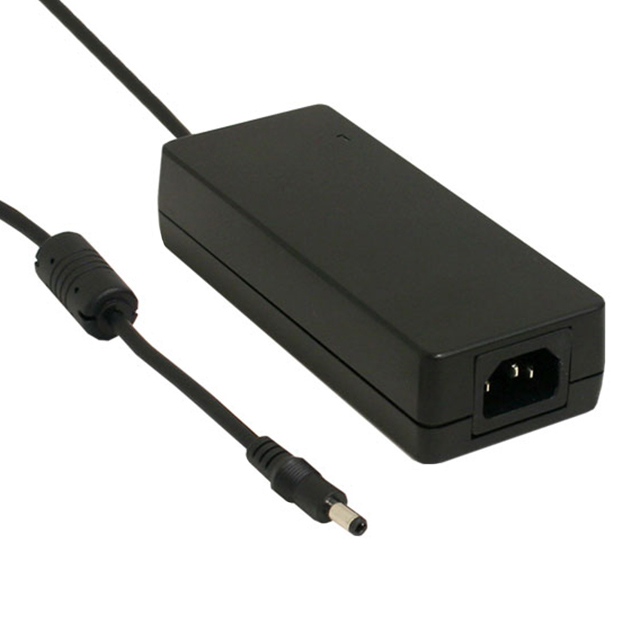

AC/DC DESKTOP ADAPTER 19V 90W
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Input Type | Voltage - Output | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Efficiency | Voltage - Input [Max] | Voltage - Input [Min] | Power (Watts) | Input Connector | No Load Power Consumption | Approval Agency | Form | Output Connector [diameter] | Output Connector | Output Connector [x] | Region Utilized | Polarization | Cord Length | Cord Length | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | -30 ░C | 70 °C | Cord (Sold Separately) | 19 V | 145 mm | 5.71 " | 2.36 " | 1.26 " | 32 mm | 60 mm | Level VI | 264 VAC | 90 VAC | 90 W | IEC 320-C14 | 150 mW | BIS BSMI CB CCC CE cULus EAC GS KC PSE RCM SIRIM | Desktop (Class I) | 2.5 mm 5.5 mm | Barrel Plug | 11 mm | International | Positive Center | 1.2 m | 47.2 in | ITE (Commercial) |
