P22 Series

Terminals 26-22G #6 UNINS RING

Manufacturer: Panduit Corp

Catalog

Terminals 26-22G #6 UNINS RING

Catalog

Terminals 26-22G #6 UNINS RING

Part	Tongue Inside Opening [diameter]	Tongue Inside Opening [diameter]	Termination	Width - Outer Edges [x]	Width - Outer Edges [x]	Stud/Tab Size	Length - Overall [x]	Length - Overall [x]	Contact Material	Wire Gauge [Max]	Wire Gauge [Min]	Insulation	Mounting Type	Contact Finish	Terminal Type	Features	Thickness	Thickness	Width - Outer Edges [y]	Width - Outer Edges [y]	Width - Outer Edges	Width - Outer Edges

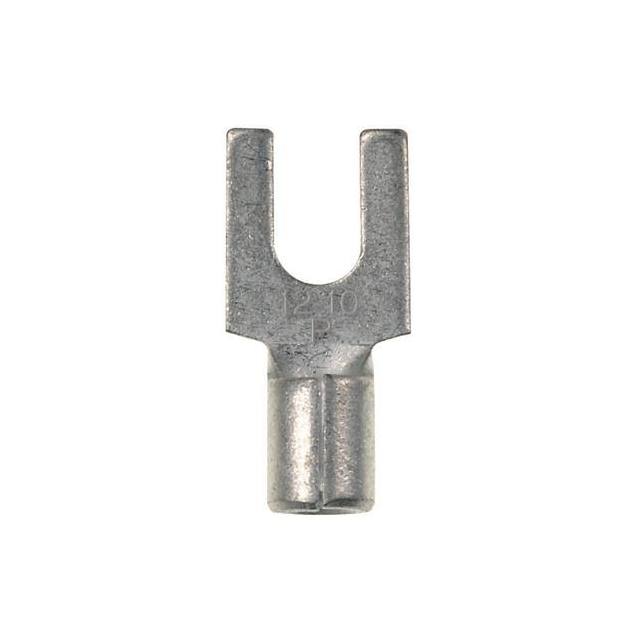

Panduit Corp P22-4F-C	3.3 mm	0.13 in	Crimp	0.19 in	4.83 mm	4 Stud	12.45 mm	0.49 "	Copper	26 AWG	22 AWG	Non-Insulated	Free Hanging (In-Line)	Tin	Standard	Brazed Seam

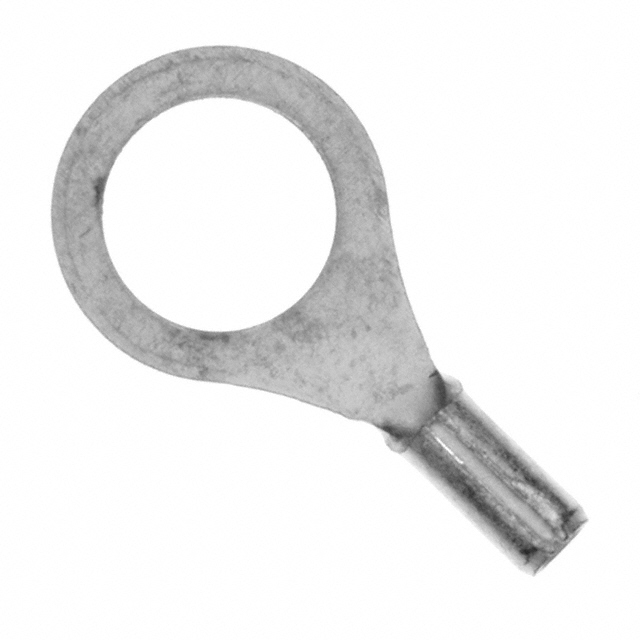

Panduit Corp P22-8R-M			Crimp			8 Stud	16 mm	0.63 in	Copper	26 AWG	22 AWG	Non-Insulated	Free Hanging (In-Line)	Tin	Circular	Brazed Seam	0.51 mm	0.02 in	0.26 in	6.6 mm

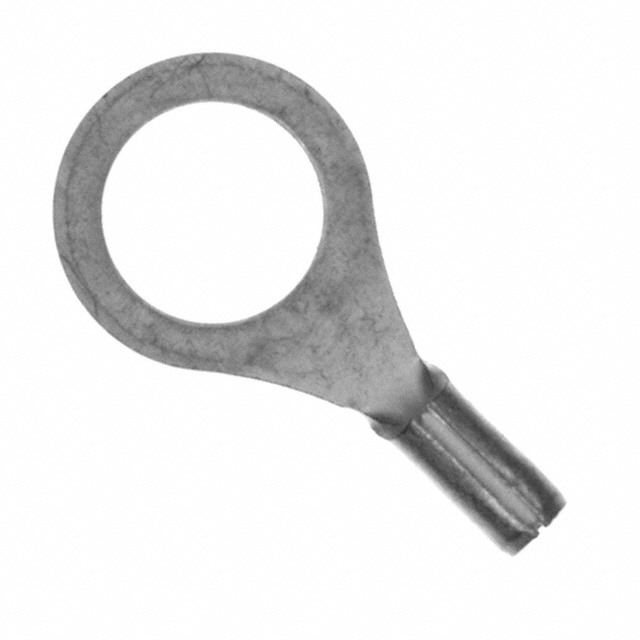

Panduit Corp P22-10R-C			Crimp	0.315 in	8 mm	10 Stud	16 mm	0.63 in	Copper	26 AWG	22 AWG	Non-Insulated	Free Hanging (In-Line)	Tin	Circular	Brazed Seam	0.51 mm	0.02 in
Panduit Corp P22-2R-M			Crimp			2 Stud			Copper	26 AWG	22 AWG	Non-Insulated	Free Hanging (In-Line)	Tin	Circular	Brazed Seam	0.51 mm	0.02 in			5.2 mm	0.205 in

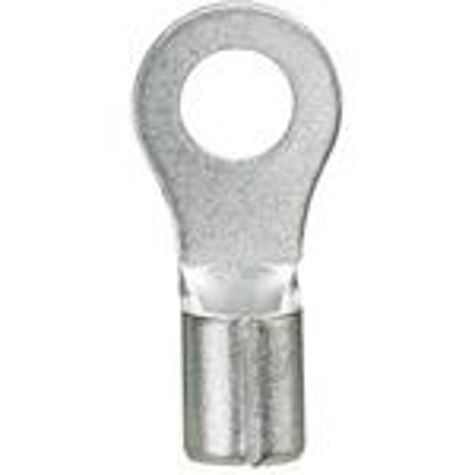

Panduit Corp P22-6R-C			Crimp			6 Stud			Copper	26 AWG	22 AWG	Non-Insulated	Free Hanging (In-Line)	Tin	Circular	Brazed Seam	0.51 mm	0.02 in			5.2 mm	0.205 in
Panduit Corp P22-10R-M			Crimp	0.315 in	8 mm	10 Stud	16 mm	0.63 in	Copper	26 AWG	22 AWG	Non-Insulated	Free Hanging (In-Line)	Tin	Circular	Brazed Seam	0.51 mm	0.02 in
