TPSM84209 Series
Manufacturer: Texas Instruments
Beta
⌘K
TPSM84209 DC TO DC CONVERTER AND SWITCHING REGULATOR MODULE 1.2V TO 6V OUTPUT EVALUATION BOARD
| Part | Outputs and Type | Outputs and Type | Supplied Contents | Board Type | Voltage - Output [Max] | Voltage - Output [Min] | Utilized IC / Part | Current - Output | Main Purpose | Voltage - Input [Min] | Voltage - Input [Max] | Regulator Topology | Contents | Package / Case | Features | Operating Temperature [Min] | Operating Temperature [Max] | Number of Outputs | Current - Output (Max) [Max] | Efficiency | Mounting Type | Control Features | Voltage - Input (Min) [Min] | Applications | Type | Voltage - Input (Max) [Max] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 1 | 1 Non-Isolated Output Non-Isolated | Board(s) | Fully Populated | 6 VDC | 1.2 V | TPSM84209 | 2.5 A | DC/DC Step Down | 4.5 V | 28 V | Buck | Board(s) | |||||||||||||||||||

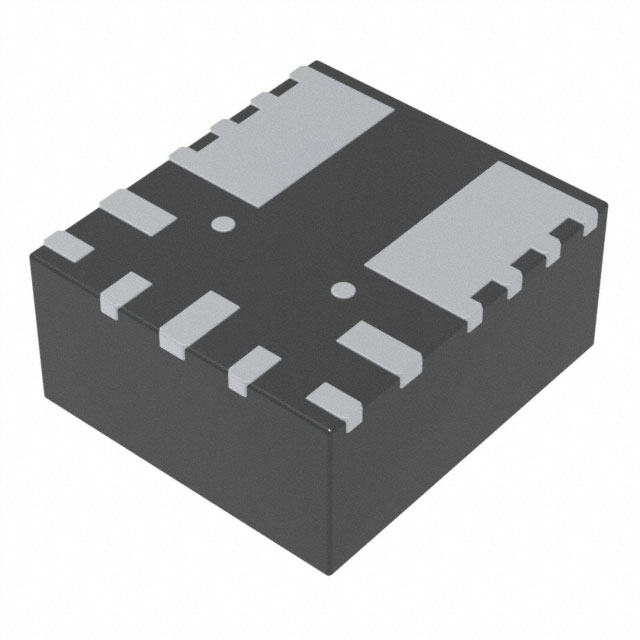

 Texas Instruments | 9-PowerQFN | Adjustable Output Remote On/Off | -40 °C | 85 °C | 1 | 2.5 A | 86.5 % | Surface Mount | Active High Enable | 4.5 V | ITE (Commercial) | Non-Isolated PoL Module | 28 V | 0.18 in | 0.08 " | 2.1 mm | 4 mm | 4.5 mm | 0.16 in | |||||||||||||
 Texas Instruments | 9-PowerQFN | Adjustable Output Remote On/Off | -40 °C | 85 °C | 1 | 2.5 A | 91.7 % | Surface Mount | Active High Enable | 4.5 V | ITE (Commercial) | Non-Isolated PoL Module | 28 V | 0.18 in | 0.08 " | 2.1 mm | 4 mm | 4.5 mm | 0.16 in |
