D449 Series

Catalog

SWITCH SNAP ACTION SPDT 10A 250V

Part	Circuit	Current Rating (Amps)	Overtravel [custom]	Overtravel [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Force	Electrical Life	Pretravel	Pretravel	Voltage Rating - AC	Differential Travel	Differential Travel	Operating Position	Operating Position	Actuator Type	Switch Function	Features	Termination Style	Release Force	Mounting Type	Overtravel	Overtravel	Differential Travel

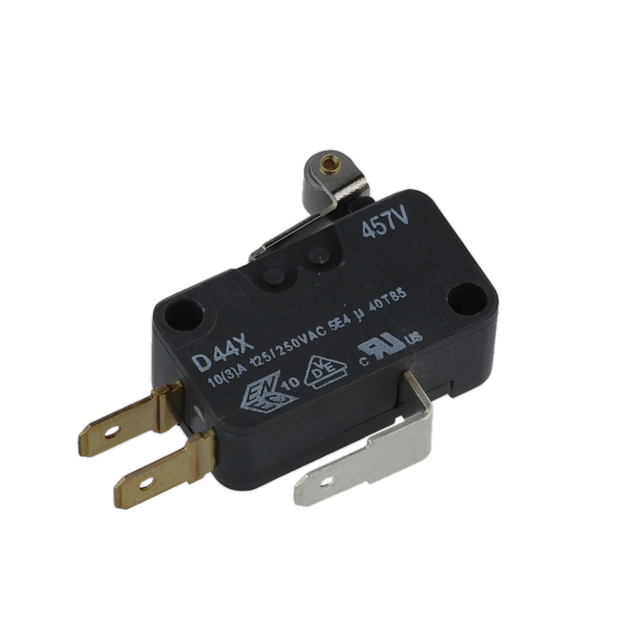

ZF Electronics D449-R1RA-G2	SPDT	10 A	1 mm	0.039 "	85 °C	-40 C	76 gf	50000 Cycles	1.2 mm	0.047 in	250 V	0.016 in	0.4 mm	0.806 in	20.5 mm	Lever Roller	On-Mom	Explosion Proof	Quick Connect	22 gf	Chassis Mount

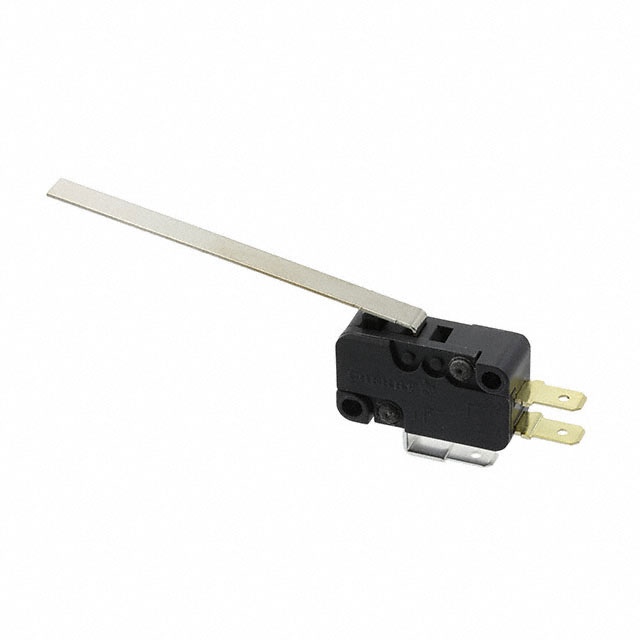

ZF Electronics D449-R1ML-G2	SPDT	10 A	7.9 mm	0.312 "	85 °C	-40 C	10 gf	50000 Cycles	12.7 mm	0.5 "	250 V	0.098 in	2.5 mm	0.6 in	15.2 mm	Lever Straight	On-Mom	Explosion Proof	Quick Connect	2.039 gf	Chassis Mount

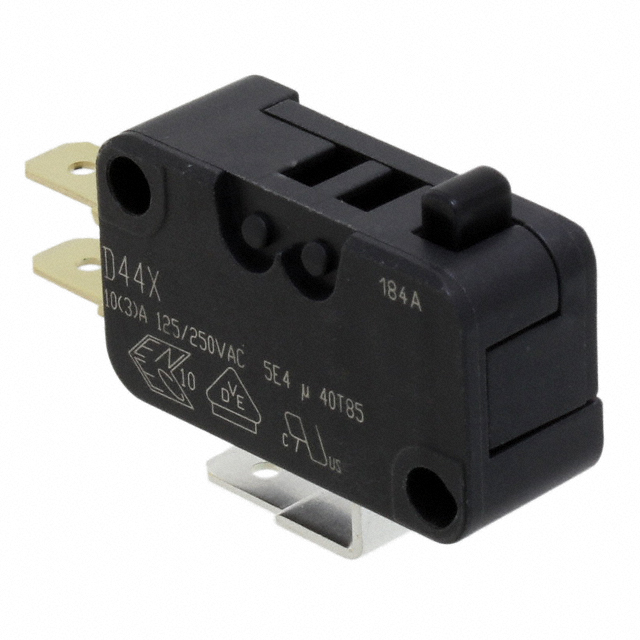

ZF Electronics D449-R1AA	SPDT	10 A	1.3 mm	0.051 "	85 °C	-40 C	76 gf	50000 Cycles	1.2 mm	0.047 in	250 V	0.012 in	0.3 mm	0.579 in	14.7 mm	Round (Pin Plunger)	On-Mom	Explosion Proof	Quick Connect	22 gf	Chassis Mount
ZF Electronics D449-R1LL-G2	SPDT	10 A			85 °C	-40 C	17 gf	50000 Cycles	7.6 mm	0.3 in	250 V	0.065 in	1.7 mm	0.6 in	15.2 mm	Lever Straight	On-Mom	Explosion Proof	Quick Connect	3.5 gf	Chassis Mount	4.7 mm	0.185 "
ZF Electronics D449-R1MD-G2	SPDT	10 A	3.6 mm	0.141 "	85 °C	-40 C		50000 Cycles	5.1 mm	0.2 in	250 V		0.05 in	0.6 in	15.2 mm	Lever Straight	On-Mom	Explosion Proof	Quick Connect	6.118 gf	Chassis Mount			1.3 mm
