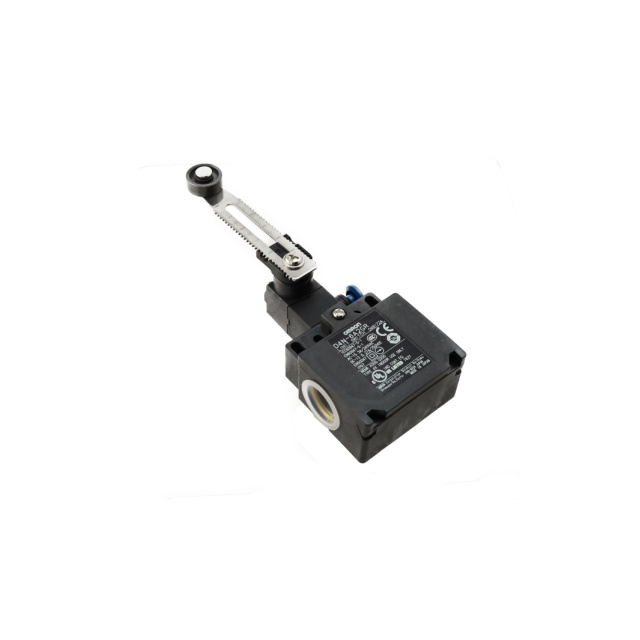

D4N-6A2 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
SWITCH SNAP ACTION DPST 3A 240V
| Part | Voltage Rating - DC | Ingress Protection | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Release Force | Circuit | Operating Force | Voltage Rating - AC | Pretravel | Switch Function | Overtravel | Mounting Type | Features | Termination Style | Mechanical Life | Current Rating (Amps) | Electrical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | 250 V | IP67 - Dust Tight Waterproof | Side Rotary Adjustable Roller | 70 °C | -30 ░C | 41 gf | DPST-NO/NC | 459 gf | 240 V | 18 ° | Off-Mom On-Mom | 40 ° | Chassis Mount | Metal Lever Resin Roller | Screw Terminal | 15000000 Cycles | 3 A 270 mA | 300000 Cycles |
Omron Electronics Inc-EMC Div | 125 VDC | IP67 - Dust Tight Waterproof | Side Rotary Adjustable Roller | 70 °C | -30 ░C | DPST-NO/NC | 551 gf | 120 V | 44 ° | Off-Mom On-Mom | Chassis Mount | Screw Terminal | 2.5 A 10 A | |||||
 Omron Electronics Inc-EMC Div | 125 VDC | IP67 - Dust Tight Waterproof | Side Rotary Adjustable Roller | 70 °C | -30 ░C | DPST-NO/NC | 571 gf | 120 V | 18 ° | Off-On On-Off | Chassis Mount | Metal Lever Reset Function Resin Roller | Screw Terminal | 1000000 Cycles | 2.5 A 10 A | 300000 Cycles | ||
Omron Electronics Inc-EMC Div | 250 V | IP67 - Dust Tight Waterproof | Side Rotary Adjustable Roller | 70 °C | -30 ░C | 41 gf | DPST-NO/NC | 459 gf | 240 V | 18 ° | Off-Mom On-Mom | 40 ° | Chassis Mount | Metal Lever Rubber Roller | Screw Terminal | 15000000 Cycles | 3 A 270 mA | 300000 Cycles |
