0338-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Tail Type	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Length - Overall [x]	Length - Overall [x]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Socket Depth	Socket Depth	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Material	Termination	Flange Diameter [diameter]	Flange Diameter [diameter]
Mill-Max Manufacturing Corp. 0338-0-15-80-15-27-10-0	-55 C	125 °C	No Tail	0.51 mm	0.02 in	0.81 mm	0.032 "	0.17 in	4.32 mm	Gold	30 Áin	0.76 Ám	0.147 in	3.73 mm	0.047 in	1.19 mm	1.45 mm	0.057 in	Beryllium Copper	Solder	0.072 "	1.83 mm

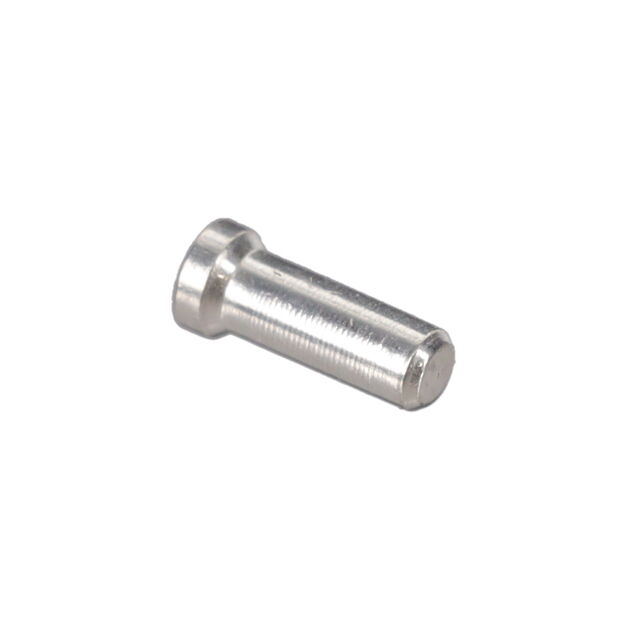

Mill-Max Manufacturing Corp. 0338-0-15-01-15-14-10-0	-55 C	125 °C	No Tail	0.51 mm	0.02 in	0.81 mm	0.032 "	0.17 in	4.32 mm	Gold	10 Áin	0.25 Ám	0.147 in	3.73 mm	0.047 in	1.19 mm	1.45 mm	0.057 in	Beryllium Copper	Solder	0.072 "	1.83 mm
Mill-Max Manufacturing Corp. 0338-0-15-01-15-01-10-0	-55 C	125 °C	No Tail	0.51 mm	0.02 in	0.81 mm	0.032 "	0.17 in	4.32 mm	Tin-Lead	200 Áin	5.08 Ám	0.147 in	3.73 mm	0.047 in	1.19 mm	1.45 mm	0.057 in	Beryllium Copper	Solder	0.072 "	1.83 mm

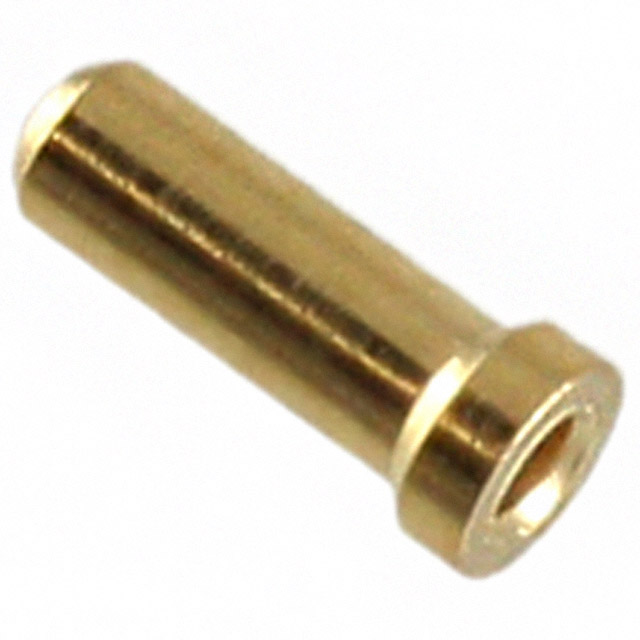

Mill-Max Manufacturing Corp. 0338-0-15-15-15-27-10-0	-55 C	125 °C	No Tail	0.51 mm	0.02 in	0.81 mm	0.032 "	0.17 in	4.32 mm	Gold	30 Áin	0.76 Ám	0.147 in	3.73 mm	0.047 in	1.19 mm	1.45 mm	0.057 in	Beryllium Copper	Solder	0.072 "	1.83 mm
Mill-Max Manufacturing Corp. 0338-0-15-80-15-80-10-0	-55 C	125 °C	No Tail	0.51 mm	0.02 in	0.81 mm	0.032 "	0.17 in	4.32 mm	Tin	200 Áin	5.08 Ám	0.147 in	3.73 mm	0.047 in	1.19 mm	1.45 mm	0.057 in	Beryllium Copper	Solder	0.072 "	1.83 mm

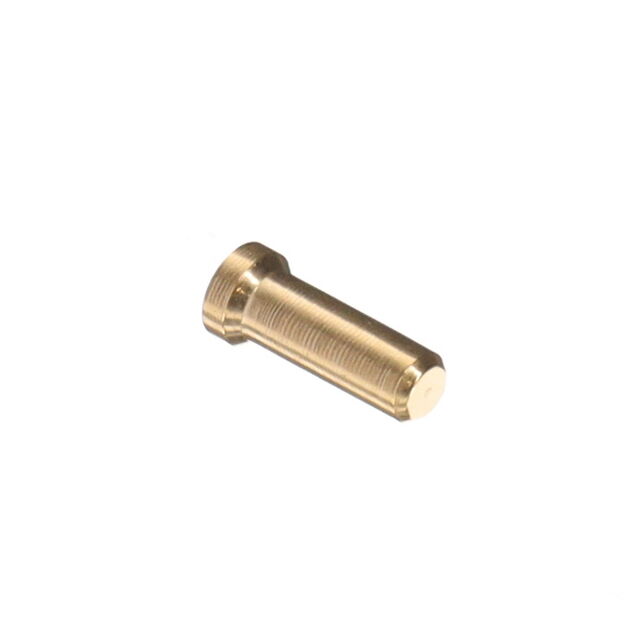

Mill-Max Manufacturing Corp. 0338-0-15-15-15-14-10-0	-55 C	125 °C	No Tail	0.51 mm	0.02 in	0.81 mm	0.032 "	0.17 in	4.32 mm	Gold	10 Áin	0.25 Ám	0.147 in	3.73 mm	0.047 in	1.19 mm	1.45 mm	0.057 in	Beryllium Copper	Solder	0.072 "	1.83 mm

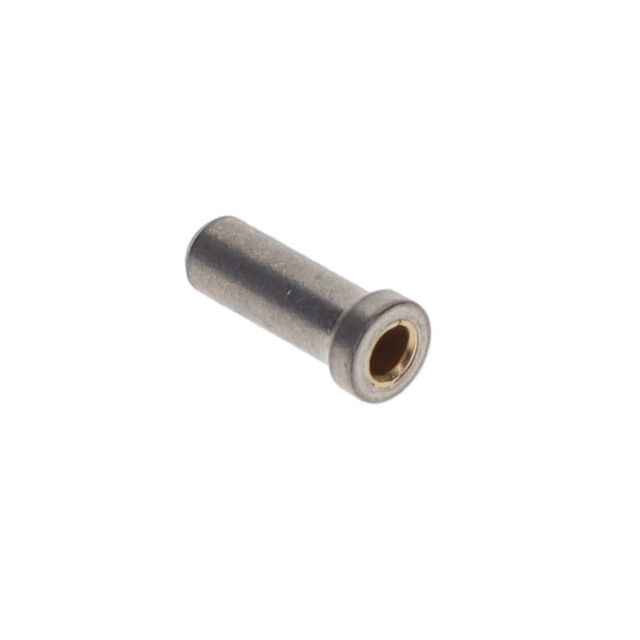

Mill-Max Manufacturing Corp. 0338-0-15-01-15-27-10-0	-55 C	125 °C	No Tail	0.51 mm	0.02 in	0.81 mm	0.032 "	0.17 in	4.32 mm	Gold	30 Áin	0.76 Ám	0.147 in	3.73 mm	0.047 in	1.19 mm	1.45 mm	0.057 in	Beryllium Copper	Solder	0.072 "	1.83 mm
