TE1-1A Series

Catalog

SWITCH: TOGGLE; POS: 2; SPST; ON-OFF; 20A/12VDC; LEADS: CONNECTORS

Part	Electrical Life (Cycles)	Illumination	Quick Connect Size (0.250")	Termination Style	Voltage Rating - DC	Circuit	Illumination Voltage (Nominal)	Color	Illumination Type	Actuator Type	Operating Temperature (Max)	Operating Temperature (Min)	Bushing Thread Diameter	Bushing Thread	Bushing Thread Pitch	Current Rating	Mounting Type	Switch Function	Actuator Length	Panel Cutout Diameter	Panel Cutout Shape

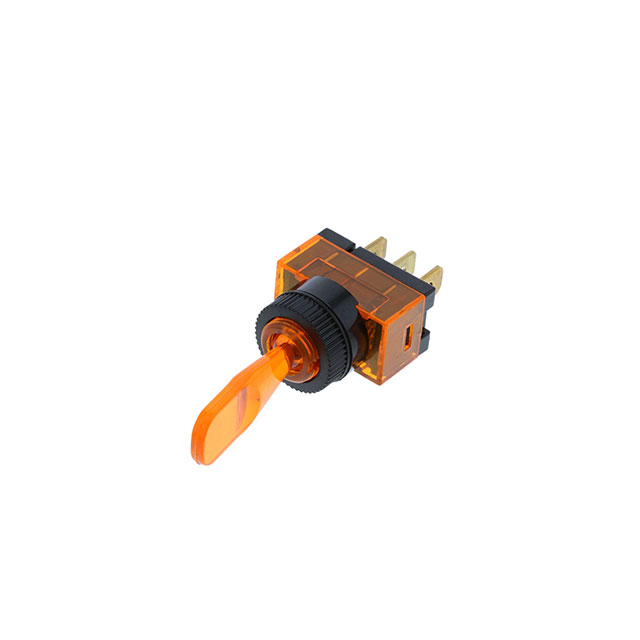

Switch Components TE1-1A-DC-1-AL	6000 Cycles	Illuminated	0.25 in	Quick Connect	12 V	SPST	12 V	Amber	Incandescent	Flatted	85 °C	-25 °C	12 mm	M12 x 1	1 mm	20 A	Panel Mount	On-Off	27 mm	12.2 mm	Circular
Switch Components TE1-1A-DC-1-RL	6000 Cycles	Illuminated	0.25 in	Quick Connect	12 V	SPST	12 V	Red	Incandescent	Flatted	85 °C	-25 °C	12 mm	M12 x 1	1 mm	20 A	Panel Mount	On-Off	27 mm	12.2 mm	Circular

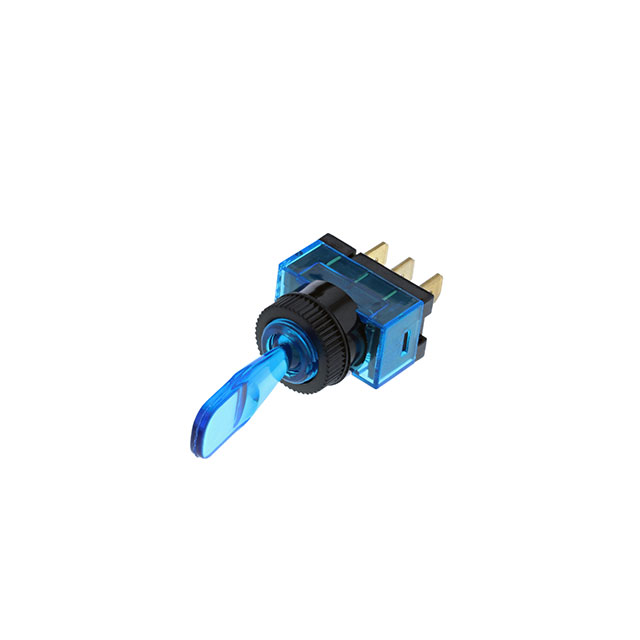

Switch Components TE1-1A-DC-1-UL	6000 Cycles	Illuminated	0.25 in	Quick Connect	12 V	SPST	12 V	Blue	Incandescent	Flatted	85 °C	-25 °C	12 mm	M12 x 1	1 mm	20 A	Panel Mount	On-Off	27 mm	12.2 mm	Circular

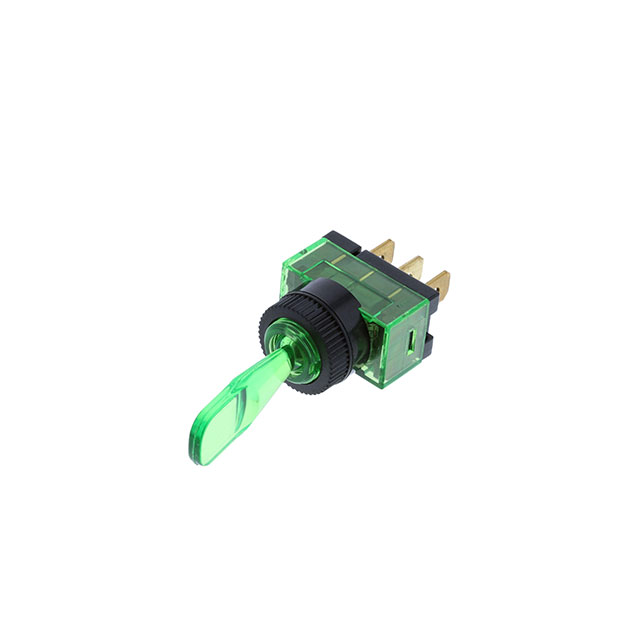

Switch Components TE1-1A-DC-1-GL	6000 Cycles	Illuminated	0.25 in	Quick Connect	12 V	SPST	12 V	Green	Incandescent	Flatted	85 °C	-25 °C	12 mm	M12 x 1	1 mm	20 A	Panel Mount	On-Off	27 mm	12.2 mm	Circular
