208223 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

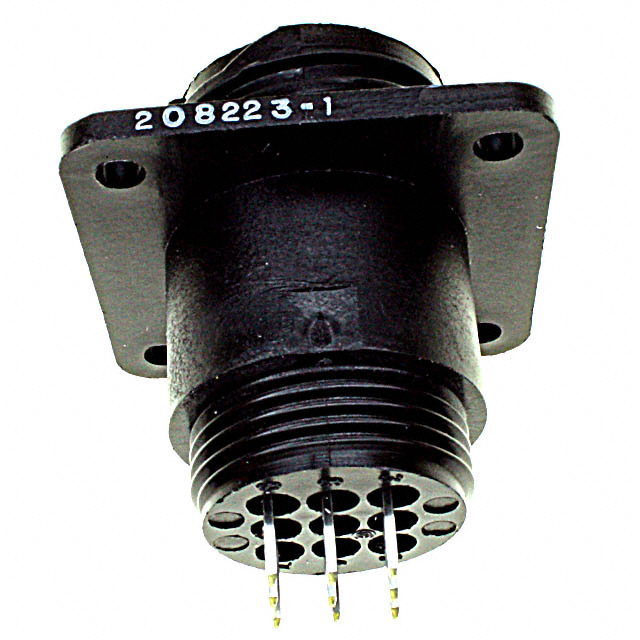

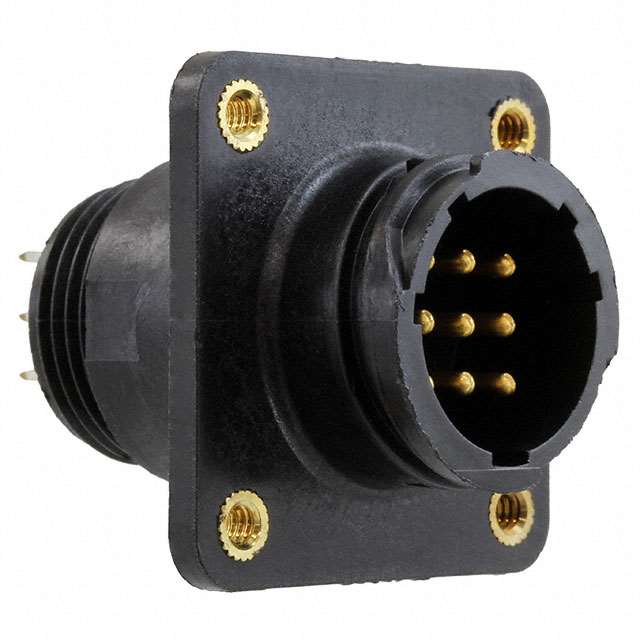

CONN RCPT MALE 9POS GOLD SOLDER
| Part | Primary Material | Termination | Contact Material | Orientation | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Mounting Feature | Number of Positions | Voltage Rating | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Shell Size - Insert | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Plastic | Solder | Brass | A | 30 Áin | 0.76 Ám | Gold PdNi +Gold | Flange | 9 | 250 VAC | Panel Mount Through Hole | 105 ░C | -55 °C | Male Pins Receptacle | 13-9 | UL94 V-0 |
 TE Connectivity Raychem Cable Protection | Plastic | Solder | Brass | A | 30 Áin | 0.76 Ám | Gold | Flange | 9 | 250 VAC | Panel Mount Through Hole | 105 ░C | -55 °C | Male Pins Receptacle | 13-9 | UL94 V-0 |
