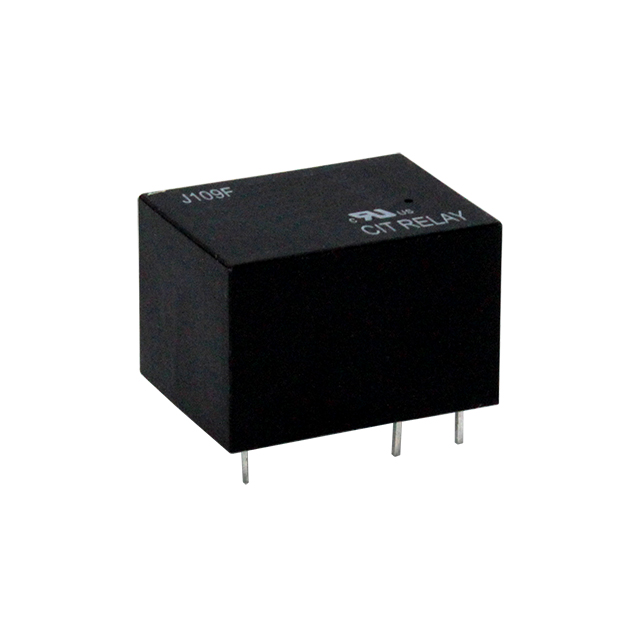

J109F1AS Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY GEN PURPOSE SPST 10A 5V
| Part | Coil Resistance | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Coil Current | Switching Voltage [Max] | Mounting Type | Coil Insulation | Release Time | Seal Rating | Relay Type | Termination Style | Contact Rating (Current) | Must Release Voltage | Must Operate Voltage | Coil Type | Coil Voltage | Operate Time | Contact Form | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 50 Ohms | Silver Tin Oxide (AgSnO) | -55 C | 125 °C | 0.1 A | 110 VDC 380 VAC | Through Hole | Class F | 4 ms | Sealed - Fully | General Purpose | PC Pin | 10 A | 0.5 VDC | 3.75 VDC | Non Latching | 5 VDC | 7 ms | SPST-NO (1 Form A) | 1100 W 3800 VA |
CIT Relay and Switch | 2.88 kOhms | Silver Tin Oxide (AgSnO) | -55 C | 125 °C | 16.7 mA | 110 VDC 380 VAC | Through Hole | Class F | 4 ms | Sealed - Fully | General Purpose | PC Pin | 10 A | 4.8 VDC | 36 VDC | Non Latching | 48 VDC | 7 ms | SPST-NO (1 Form A) | 1100 W 3800 VA |
CIT Relay and Switch | 1.152 kOhms | Silver Tin Oxide (AgSnO) | -55 C | 125 °C | 20.8 mA | 110 VDC 380 VAC | Through Hole | Class F | 4 ms | Sealed - Fully | General Purpose | PC Pin | 10 A | 2.4 VDC | 18 VDC | Non Latching | 24 VDC | 7 ms | SPST-NO (1 Form A) | 1100 W 3800 VA |
CIT Relay and Switch | 1.152 kOhms | Silver Tin Oxide (AgSnO) | -55 C | 125 °C | 20.8 mA | 110 VDC 380 VAC | Through Hole | Class F | 4 ms | Sealed - Fully | General Purpose | PC Pin | 12 A | 2.4 VDC | 18 VDC | Non Latching | 24 VDC | 7 ms | SPST-NO (1 Form A) | 1320 W 4560 VA |
CIT Relay and Switch | 720 Ohms | Silver Tin Oxide (AgSnO) | -55 C | 125 °C | 33.3 mA | 110 VDC 380 VAC | Through Hole | Class F | 4 ms | Sealed - Fully | General Purpose | PC Pin | 10 A | 2.4 VDC | 18 VDC | Non Latching | 24 VDC | 7 ms | SPST-NO (1 Form A) | 1100 W 3800 VA |
CIT Relay and Switch | 6.4 kOhms | Silver Tin Oxide (AgSnO) | -55 C | 125 °C | 7.5 mA | 110 VDC 380 VAC | Through Hole | Class F | 4 ms | Sealed - Fully | General Purpose | PC Pin | 10 A | 4.8 VDC | 36 VDC | Non Latching | 48 VDC | 7 ms | SPST-NO (1 Form A) | 1100 W 3800 VA |
CIT Relay and Switch | 288 Ohms | Silver Tin Oxide (AgSnO) | -55 C | 125 °C | 41.7 mA | 110 VDC 380 VAC | Through Hole | Class F | 4 ms | Sealed - Fully | General Purpose | PC Pin | 12 A | 1.2 VDC | 9 VDC | Non Latching | 12 VDC | 7 ms | SPST-NO (1 Form A) | 1320 W 4560 VA |
CIT Relay and Switch | 180 Ohms | Silver Tin Oxide (AgSnO) | -55 C | 125 °C | 66.7 mA | 110 VDC 380 VAC | Through Hole | Class F | 4 ms | Sealed - Fully | General Purpose | PC Pin | 10 A | 1.2 VDC | 9 VDC | Non Latching | 12 VDC | 7 ms | SPST-NO (1 Form A) | 1100 W 3800 VA |
CIT Relay and Switch | 1.6 kOhms | Silver Tin Oxide (AgSnO) | -55 C | 125 °C | 0.015 A | 110 VDC 380 VAC | Through Hole | Class F | 4 ms | Sealed - Fully | General Purpose | PC Pin | 10 A | 2.4 VDC | 18 VDC | Non Latching | 24 VDC | 7 ms | SPST-NO (1 Form A) | 1100 W 3800 VA |
CIT Relay and Switch | 400 Ohms | Silver Tin Oxide (AgSnO) | -55 C | 125 °C | 0.03 A | 110 VDC 380 VAC | Through Hole | Class F | 4 ms | Sealed - Fully | General Purpose | PC Pin | 10 A | 1.2 VDC | 9 VDC | Non Latching | 12 VDC | 7 ms | SPST-NO (1 Form A) | 1100 W 3800 VA |
