FHAC0002ZXJD Series

ATO Inline, 30A, purple UL3266 wire

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

ATO Inline, 30A, purple UL3266 wire

Part	Termination Style	Mounting Type	Current Rating (Amps)	Fuse Type	Fuseholder Type	Number of Circuits	Voltage	Fuse Size [y]	Fuse Size [x]	Fuse Size [y]	Fuse Size [x]	For Use With/Related Products
Littelfuse/Commercial Vehicle Products FHAC0002ZXJD	Wire Leads	Free Hanging (In-Line)	30 A	Blade	Holder	1	32 V	5.1 mm	19.1 mm	0.2 in	0.75 "	ATC ATO

Catalog

ATO Inline, 30A, purple UL3266 wire

Key Features

• Accepts ATO® blade fuses (sold separately) up to 30A

• 4" (101.6 mm) wire leads with 0.315" (8 mm) end strips

• UL 3266 wire with purple insulation

Description

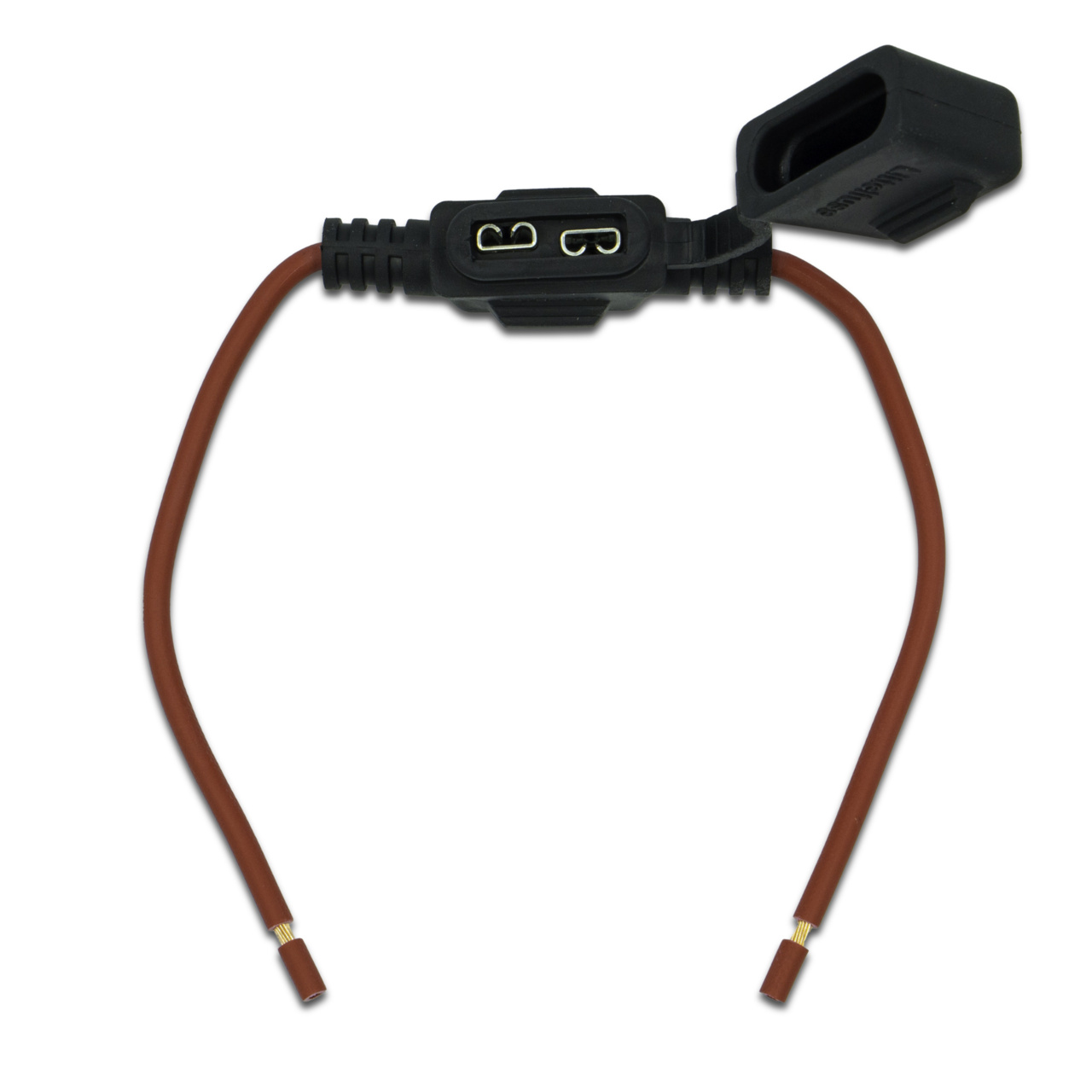

Quickly add circuit protection for air conditioners and blower motors using the ATO® FHAC Series 32V Heavy-Duty Waterproof In-Line Fuse Holder. This blade fuse holder features a built-in protective cover to provide an IP67-rated waterproof and dust-tight enclosure. This heavy-duty configuration (FHAC0002ZXJD) is compatible with ATO® blade fuses up to 30A (sold separately). Its 4" (101.6 mm) purple UL 3266 wire leads with 0.315" (8 mm) end strips make in-line installation simple.
