2369833 Series

Catalog

RECEPT ASSY, RA, 168 POS, SLIVER

Part	Termination	Gender	Mounting Type	Card Type	Features	Number of Positions	Color	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Termination Rows	Number of Rows	Read Out	Pitch [x]	Pitch [x]	Card Thickness	Card Thickness	Material - Insulation	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness

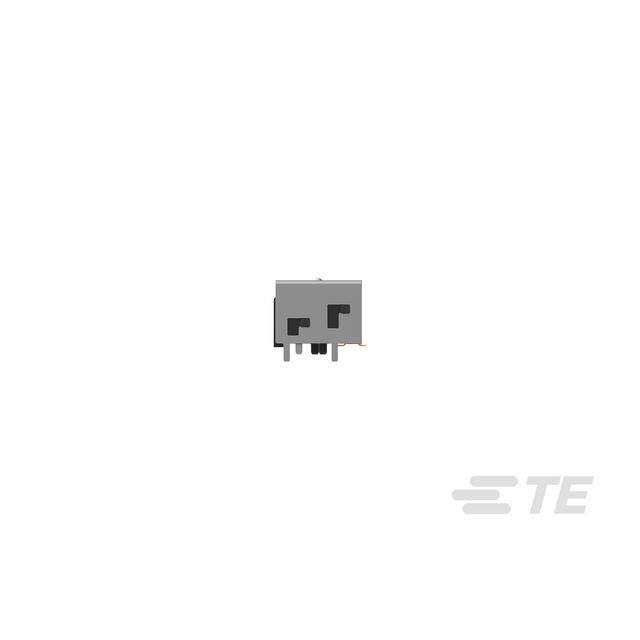

TE Connectivity Raychem Cable Protection 2369833-2	Solder	Female	Surface Mount Right Angle	Non Specified - Dual Edge	Board Guide Solder Retention	168	Black	Copper Alloy	15 µin	0.38 µm	Gold	2	2	Dual	0.6 mm	0.024 in	0.062 in	1.57 mm	Liquid Crystal Polymer (LCP)	85 °C	-55 °C
TE Connectivity Raychem Cable Protection 2369833-3	Solder	Female	Surface Mount Right Angle	Non Specified - Dual Edge	Board Guide Solder Retention	168	Black	Copper Alloy	30 Áin	0.76 Ám	Gold	2	2	Dual	0.6 mm	0.024 in	0.062 in	1.57 mm	Liquid Crystal Polymer (LCP)	85 °C	-55 °C
TE Connectivity Raychem Cable Protection 2369833-1	Solder	Female	Surface Mount Right Angle	Non Specified - Dual Edge	Board Guide Solder Retention	168	Black	Copper Alloy			Gold	2	2	Dual	0.6 mm	0.024 in	0.062 in	1.57 mm	Liquid Crystal Polymer (LCP)	85 °C	-55 °C	Flash
